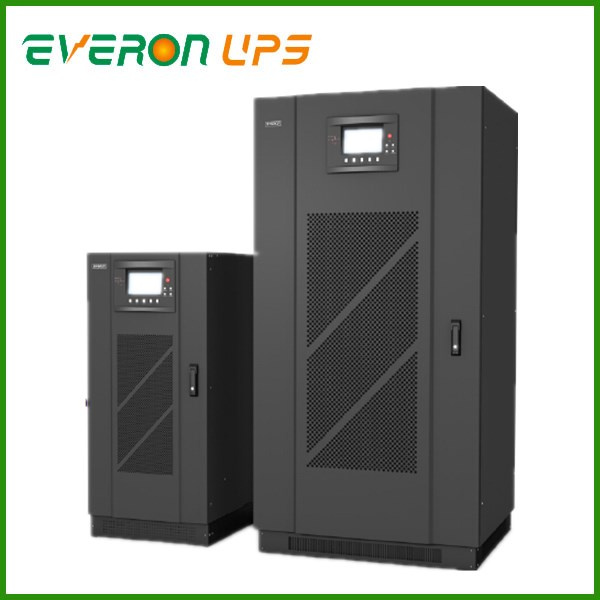

Convoy Series Low Frequency Online UPS with 3 Phase in 1 Phase out Digital (30-80kVA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
MFD3130-MFD3180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Phase: |
3 Phase in 1 Phase out |
| Brand: |
Everon |
Product Description
Convoy Series Low Frequency Online UPS with 3 Phase in 1 Phase out Digital (30-80kVA)Low frequency online ups convoy MFD31 three in one out 30-80kva main features:>>Fully digital>>Transformer based, superior overload capacity>>6 pulse rectifier(12 pulse optional)>>High input power factor0.95(with filter)>>High efficiency 92%>>Large LCD display(MCU controlled)>>PWM fan speed regulation Application:Industry automation protectionPower protection for transportation, Electricity, Medical service, StadiumSmall to Mid data centersBanking, Insurance, Stock Service CentersCommunication Network Management CenterExperimental Instruments Technical Specifications| Model | MFD3130 | MFD3140 | MFD3150 | MFD3160 | MFD3180 |
| Capacity(KVA/KW) | 30/24 | 40/32 | 50/40 | 60/48 | 80/64 |
| Input |
| Mains Input | Nominal volt
.(Vac) | 380 |
Volt. Range
(Vac) | 304-456 |
| Phase | Three phase five wire(3L+N+PE) |
| Freq.range(Hz) | 50(60)±5% |
| Input PF | >0.95(with filter) |
| Bypass Input | Nominal volt.(Vac) | 220 |
| Volt.range(Vac) | 160-275 |
| Phase | Three phase five wire(3L+N+PE) |
| Bypass tracking(Hz) | 50(60)±5% |
| Output |
| Voltage(Vac) | 220V±1% or 230V±1% |
| Power factor | 0.8 |
| Frequency(Hz) | 50(60) |
| Wave form | Sine wave,THDV<2%(linear load) |
| Transfer time(ms) | 0 |
| System efficiency | >=92% |
| Overload | 105%-110%: 60min,110%-125%: 10min,125%-150%: 1min,>150%:10s |
| Battery |
| Battery voltage(Vdc) | (348/360 optional)/(384 customized) |
| Environment |
| OperatingTemp.(ºC) | -10 to 40 |
| Storage Temp.(ºC) | -25 to 55(battery excluded) |
| Humidity range | 0-95%( no condensing) |
| Operating altitude(m) | <1500 |
| Noise (dB) | <55 |
| Other characteristic |
| Alarm function | Overload, main fault, UPS fault,battery voltage low,etc |
| Protection function | Short circuit, overload, overheat, battery voltage low,surge protection(optional) |
| Communication interface | Standard: RS232, optional: RS485/SNMP/Dry contact card |
| Physical |
| Dimension(W*D*H mm) | 550*800*1200 | 750*720*1600 |
| Net Weight(kg) | 330 | 520 | 590 | 630 | 820 |
| Standards | YD/T1095-2008 |
*Standard type : 6 pulse(6P), option : 5th harmonic filter*Optional type : 12 pulse(12P), option : 11th harmonic filter

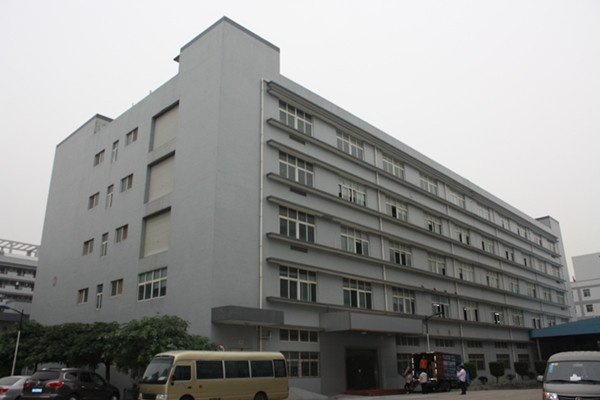

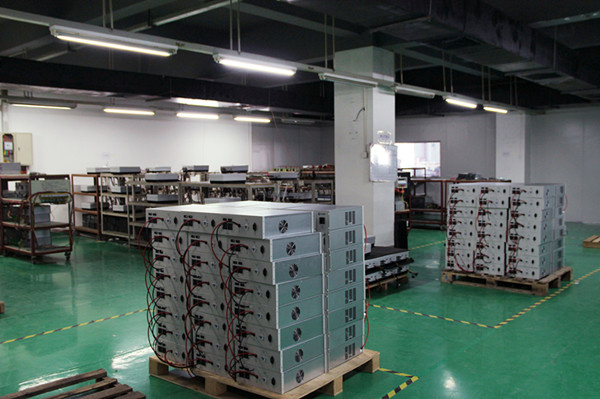

Founded in 2003, Shenzhen JingFuYuan Tech. Co., Ltd. (Abbr. JFY) is a professional UPS, Solar Inverter, Hybrid Power System and Telecom Power Supply manufacturer. Awarded as National High-tech Enterprise and certified to ISO9001: 2008 international quality system, JFY has 16000 m2 of production plants and R&D laboratories with more than 100 professional engineers in Shenzhen headquarter, more than 20 service centers in domestic and overseas areas. As a leading supplier with best products and services, JFY always offers customers the high cost-effective products and integrated energy solutions with plentiful design and production experiences. The products cover a wide range of Solar Inverters, UPS, Telecom Power Supply, Hybrid Power System, etc. Our products have been sold to more than 50 countries and areas. Their stable operation and excellent performance have been universally recognized by users across the world.
