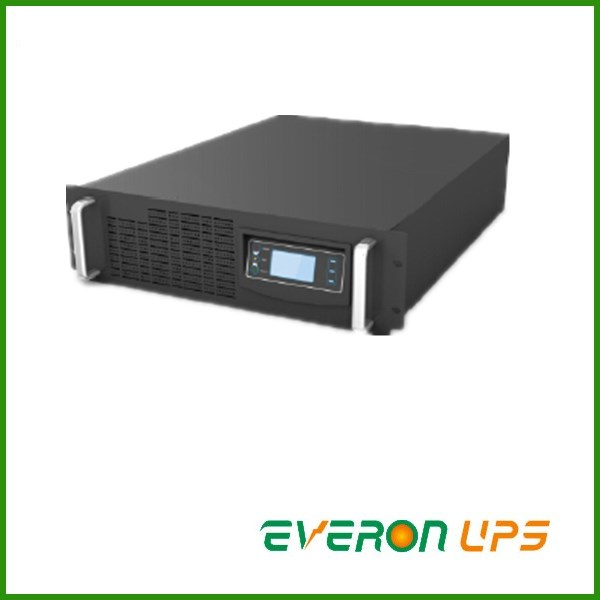

High frequency online ups XPC11R series 1 in 1 out rack mount 0.5-10kva
Main features:
>>High speed MCU ( DSP for 6kva, 10kva)controlled
>> Online double conversion
>> Standard 19 inch rack 2U/3U design
>> 19 inch rack mount battery module optional
>>High input power factor(>0.98)
>> Wide input voltage tolerance
>> 50/60Hz source auto detection
>> Input surge protection
>> High efficient half bridge inverter
>> Intelligent periodic battery charge and discharge, to prolong battery life
>>Input neutral and live wire reverse detection, to avoid reverse connection
>> Bypass output protection to protect the load
>> Intelligent fan speed regulation
>> Fan fault detection and alarming
>> Intelligent real time monitoring, instantly alarm and start full protection
>> Self-diagnose when starting
>> DC cold start
>> Auto restart when AC source recover
>> Large LCD display and LED indication
>> Abundant options
Options
>> SNMP card
>>USB
>> 19 inch rack mount battery module
Product description
XPC11R series rack mount type high frequency small capacity UPS adopts online double conversion architecture, and high speed MCU or DSP controlled. Features with high performance, reliability and energy saving. With small and exquisite appearance, visual display, intelligent management, wholesome protection functions, XPC11R series UPS provides pure sine AC power to small capacity critical load.
Application:
Server Rack
Computer network system
Communication system
Other critical rack type load
Technical Specifications
| Model | XPC11005LR | XPC1101LR | XPC1102LR | XPC1103LR | XPC1106LR | XPC1110LR |
| Capacity(KVA/KW) | 0.5/0.4 | 1/0/7 | 2/1.4 | 3/2.1 | 6/4.8 | 10/8 |
| Input |
| Mains Input | Nominal volt
.(Vac) | 220 |
Volt. Range
(Vac) | 110~296 | 120~275 |
| Phase | Single phase three wire(L+N+PE) |
| Freq.range(Hz) | (46-54)/(56-64)auto detection |
| Input PF | >0.98 |
| Bypass Input | Nominal volt.(Vac) | 220 |
| Volt.range(Vac) | 80~286 |
| Phase | Single phase three wire (L+N+PE) |
| Bypass tracking(Hz) | ±10% |
| Output |
| Voltage(Vac) | 220(200,208,230,240 setting) |
| Power factor | 0.8 | 0.7 | 0.8 |
| Frequency(Hz) | Normal mode: synchronizing with AC input,battery mode: 50/60Hz |
| Wave form | THDV<2%(linear load);THDV<5%(nonlinear load); |
| Transfer time(ms) | 0 |
| System efficiency | >=87% | >=88% | >=90% | >=92% |
| Overload | 105%~150%: 30S | 105%~125%: 60S |
| >150%:300ms | 125%~150%: 30S |
| >150%:500ms |
| Battery |
| Battery voltage(Vdc) | 36 | 72 | 96 | 192 |
| Charge current(A) | 3-7A(setting) | 1-4A(setting) |
| Backup time | Depends on the capacity of external batteries |
| Environment |
| OperatingTemp.(ºC) | -10 to 40 |
| Storage Temp.(ºC) | -25 ~55(battery excluded) |
| Humidity range | 0~95%( no condensing) |
| Operating altitude(m) | <1500 |
| Noise (dB) | <45 | <50 | <55 |
| Other characteristic |
| Alarm function | Overload, main fault, UPS fault,battery voltage low,etc |
| Protection function | Short circuit, overload, overheat, battery voltage low,output voltage low & high,fan fault |
| Communication interface | Standard: RS232
Optional:SNMP/Dry contact/USB |
| Physical |
| Dimension(W*D*H mm) | 440*320*87 | 440*420*87 | 440*595.4*130 |
| Net Weight(kg) | 8 | 8.2 | 10.5 | 10.9 | 20 | 21 |
| Standards | YD/T1095-2008 |
* L means Long Backup time type,R means rack mount type
