Product Specifications
| Prod Model: |
LWGQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Communication: |
RS485, RS232, Hart, Modbus, Profibus, etc. |
| Pressure Grade (Mpa): |
1.6, 2.5, 4.0, etc. |
| Connection Type: |
Flanged Type, Threaded Type |
| Sensor: |
Tube/Flange |
| Type: |
Turbine Flow Meter |
| Accuracy: |
≤±0.1% |
| Measuring Media: |
Gas |
| Measuring Principle: |
Mechanics |
| Main Application: |
Gas, Air |
| Size: |
Dn4-Dn300 |
Product Description

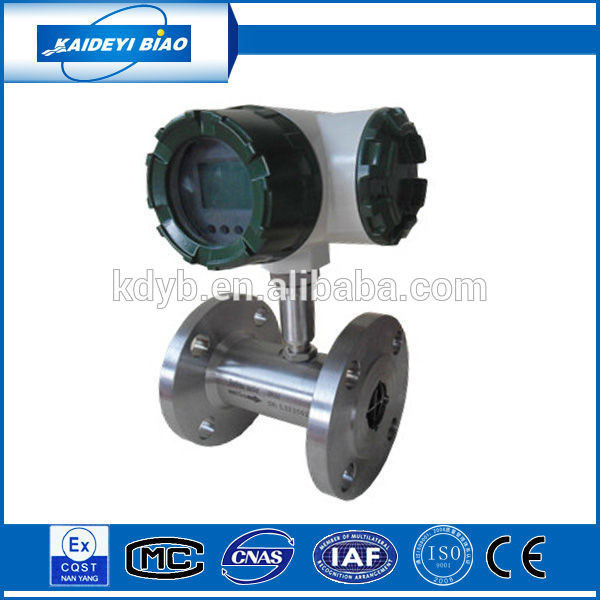

Introduction--Turbine Flow Meter
Gas turbine flowmeter is a kind of velosity type gas flow meter, it is often used to measure the volume flow-rate and volume flow of low-viscosity fluid(gas or liquid) in closed pipeline and widely used in industries like oil, chemical, metal, aviation, scientific research, etc.
Features--Turbine Flow Meter
A) Pulse output, linear feature;
B) High accuracy, sensitive reaction;
C) Wide measuring range;
D) Signal output:
E) Simple structure, easy installation, operation and maintenance;
F) Filter, eliminator and rectifier(aligner) can be provided as a whole package;
G) A pair of companion vice flanges for installation is available.
Specifications--Turbine Flow Meter
Available type: Water turbine flowmeter, Liquid turbine flowmeter, carbinol turbine flow meter, etc.
Caliber(mm): 15~500
Pressure(MPa): 2.5~16
Accuracy: ± 1.5%, ± 1%, ± 0.5%, ± 0.2%
Fluid temperature: -20~+120(gas), -30~+80(liquid)
Ambient: Temperature: -20~+55; Relative temperature: 5%~95%; Pressure: 86~106KPa
Power source: 8~24V. DC, 3.2V 10AH lithium battery
Signal ouput: Pulse output(+12~+24VDC power supply, three-wire system); Pulse output(+24VDC power supply, two-wire System); 4~20mADC analog flow signal output
Explosion-proof grade: DBT4, ibCT4
Available form: Compact type, Remote type, Inserted type, Bidirectional type
Connecting mode: Flange connection, Pipe thread connection
Shell material: SS/CS
