Product Specifications
| Prod Model: |
LUGB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Available Type: |
Integrated Intelligent Type;Local Display Type |
| Pressure Grade (Mpa): |
1.6, 2.5, 4.0, etc. |
| Accuracy Grade: |
1.0%, 1.5%, etc. |
| Sensor: |
Tube/Flange |
| Type: |
Vortex Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Gas |
| Measuring Principle: |
Mechanics |
| Main Application: |
Nature Gas |
| Size: |
Dn15-Dn600 |
Product Description

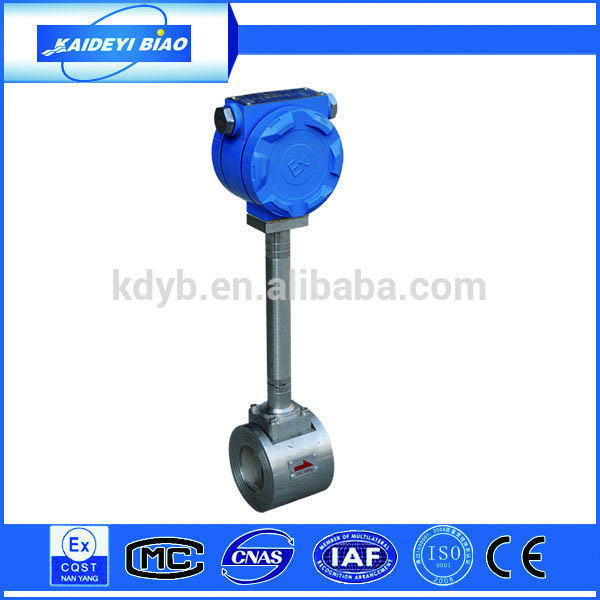

Introduction--Vortex Flow Meter
Vortex flow meter is an internationally advanced new type of flow meter, it is developed based on Karman Vortex Street Theory. It is applicable to the measurement of superheated steam, saturated steam, general gas and liquid.
Features--Vortex Flow Meter
A) Simple structure, no moving parts;
B) High accuracy, high reliability, no need of field debugging;
C) Capable of remote transmission of flow signal, able to make network with computer to implement central administration;
D) Unique design of amplify board, applicable to both gas and liquid.
Specifications--Vortex Flow Meter
Available form: Compact type, Remote type
Connecting methods: Flange connection, Flange clamped, Inserted
Caliber(mm): 15~2000
Pressure(MPa): 1.6MPa, 2.5MPa, 4.0MPa and above
Accuracy: ± 1.5%, ± 1.0%
Applicable Medium: Superheated steam, Saturated steam, General gas and liquid
Medium Temperature: -40~+350
Power Supply: 12~24V DC, 3.6V Lithium battery
Signal Output: Standard current, 4~20mA; Voltage pulse, low level1V, high level6V, load resistor150
Display: Two-line LCD local display, Remote transmission.
Explosion-proof Grade: IaCT6(intrinsically safe explosion-proof)
Kaifeng Kaide Flow Instrument Co., Ltd., established in 2002, is a high-tech enterprise specialized in the R&D and manufacture of flow instruments. Located in the base of Chinese flow instrument - Kaifeng City, we have full access to the most advanced technology and thus intend to deliver our high-quality service internationally with great confidence.
At present, we are mainly dealing in Electromagnetic Flowmeters, Vortex Flowmeters, Turbine Flowmeters and some kinds of Throttling Devices. As we put a lot of concern into quality control, we attained ISO9001: 2000 QMS (Quality Management System) certification at a very early time.
Our commitment has won us a lot of reputable domestic customers from Chinese oil giant - Zhongyuan Oil Field to famous research institute of Wuhan University of Technology. They all established a pleasant and long-term business relationship with us. We also expanded our service to overseas markets and plenty of foreign customers visited our company to bond us in technology and business. We have been providing OEM service for many domestic and overseas customers.
"Accuracy and attitude" is our motto. We believe that, with high-quality products and services, long-term relationships are always available between worldwide guests and our company. If you are interested in any of our products, please do not hesitate to contact us. We will do our best to meet your requirements.
