Product Specifications
| Prod Model: |
CM8801FN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0 - 1250um/ 0 - 50mil |
| Resolution: |
1um, 0.1mils |
| Accuracy: |
± (3%+2um)/ ± (3%+0.1mils) |
| Usage: |
Auto Testing Machine |
| Sensor Type: |
Fe & Nfe 2 in 1 |
| Power: |
Electronic |
Product Description

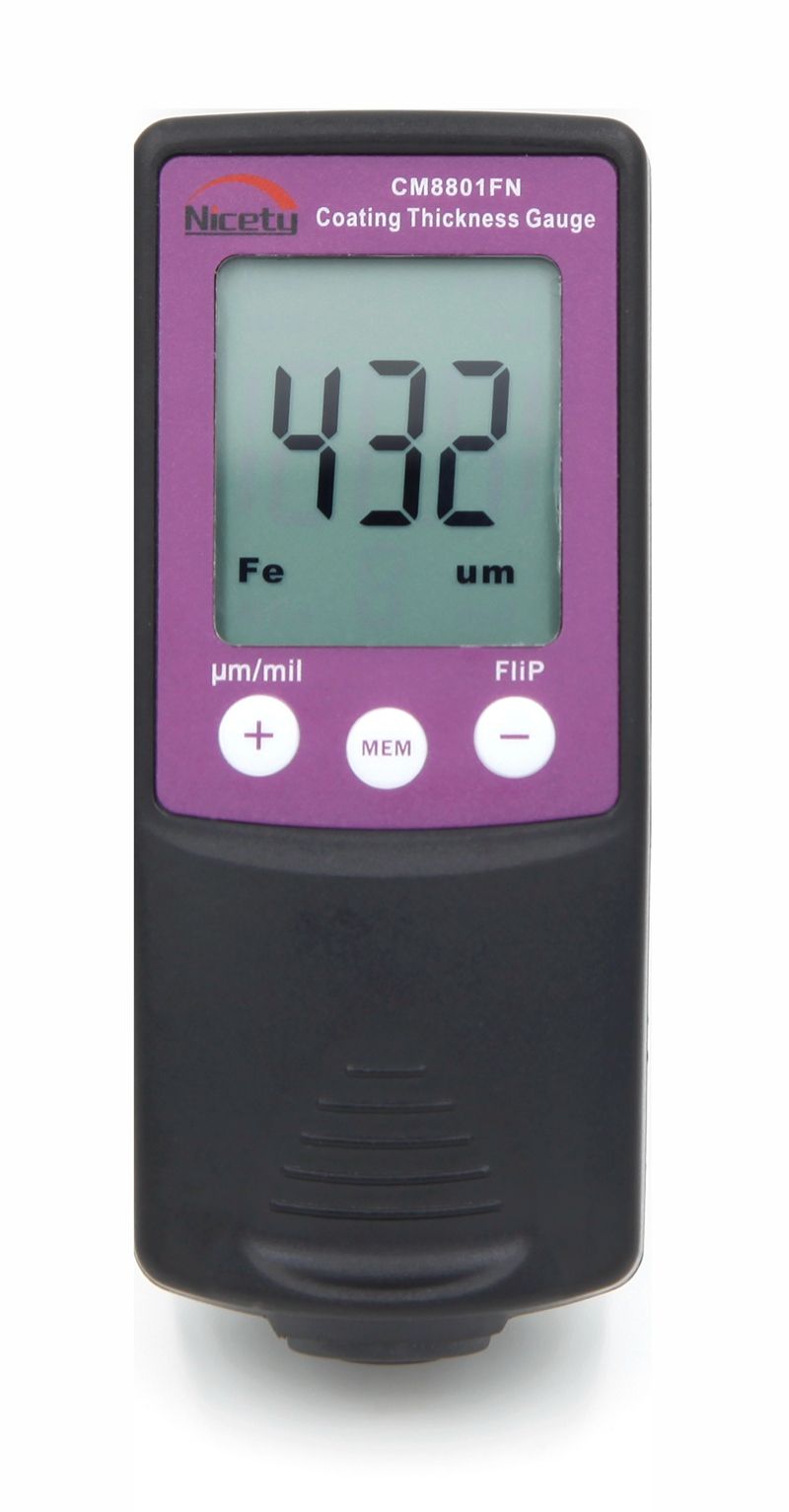

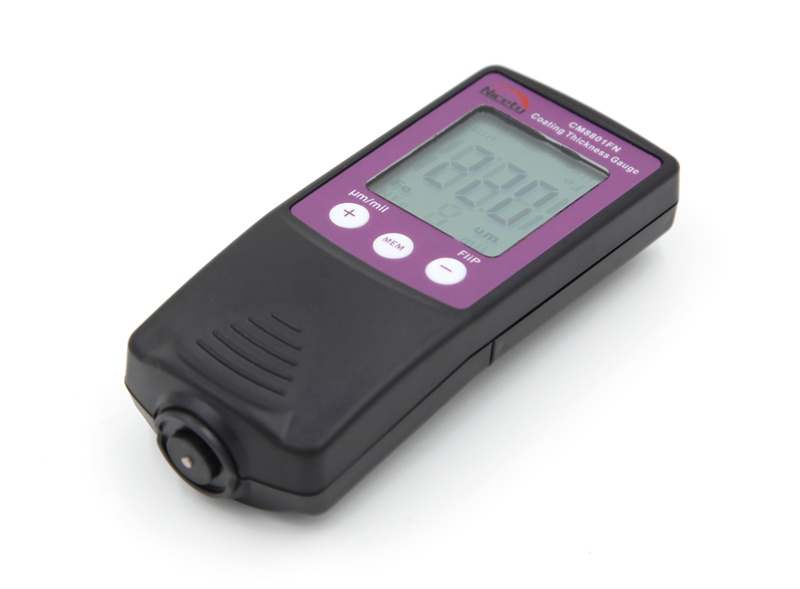

Digital Paint Coating Thickness Gauge Meter thickness tester
Includes F type (CM-8801F), NF type (CM-8801N) and F/NF 2 in 1 type (CM-8801FN)
Features:
* Measures paint on any metal including steel, aluminum, brass, etc. Automatically recognizes the material and takes a measurement.
* Automatic ON/OFF switching.
* Factory calibrated and ready for use. Measures precisely right out of the box.
* ZERO set feature for non-standard surfaces.
* RESET to factory settings feature when no zero reference is available.
* Strong, wear resistant probe.
* Large 2 Line High Contrast Flip LCD Display for viewing in any position.
* Stores last 10 readings in a Memory (Measure now, compare all the results later).
* Durable quality construction.
* Fast and accurate measurements.
* Simple operation: No user calibration required.
* Mils/Microns selectable. Displays readings in Metric (μm) or Imperial units (mil).
* Pocket-sized for comfortable one hand operation.
* Supplied with a set of plastic test shims
Specification:
Measurement Range: 0~49 mils/0~1250μm
Accuracy: ± (0.3 mils+3%); 2μm +3%)
Resolution: 0.1mils,0.1μm
Dimension: 119x52x28mm
Weight: 40g

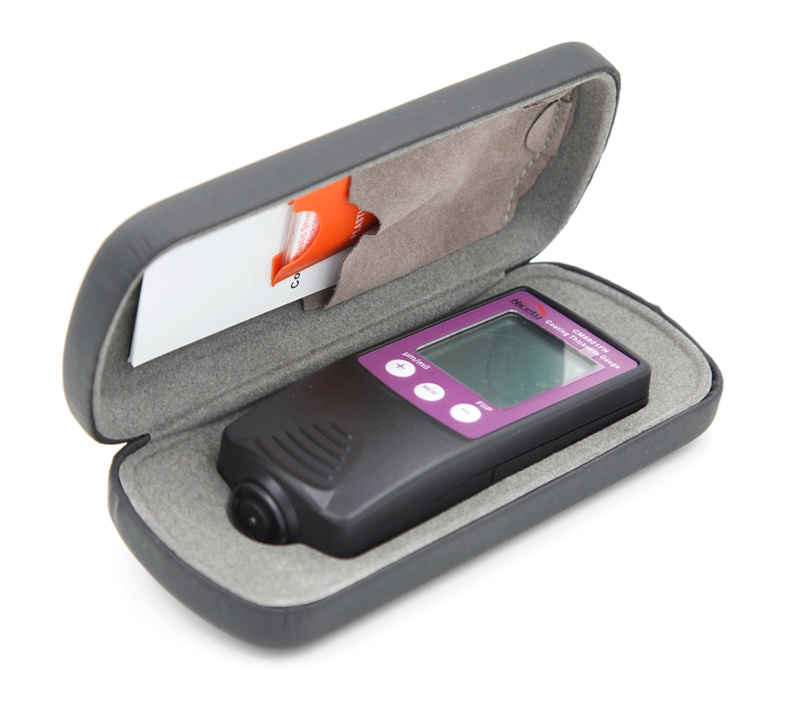

Packing: spectacle case, substrate blocks (steel x 1pc, Aluminum x 1pc)
Calibration foils x 1set, English manual
Starmeter Instruments Co. Ltd has 10 years of experience in manufacturing measuring instruments and other electronic products. Our design and manufacturing capabilities have benefited buyers in over 50 countries. We can put our expertise to work for you.
Through many years of experience in the industry, we are experienced in handling OEM projects in full range, right from the conceptual phase to product design & development and to production & delivery. Supported by our strong networks and engineering team, we can serve you with expertise on OEM and basis, Customization services are also available.
We make sure that the product quality meets your standards and the deliveries are on time. Our main objective is the satisfaction of each consumer by understanding what they want and servicing what they need. Our principle is to offer "high value" products, featuring unique and innovative concepts, stylish but useful and ergonomic designs with a high quality level.
In terms of quality assurance, each product passes the strict screening and testing by our in-house QC staff conducting on-site monitoring of the complete flow of the production process and is in accordance with all the necessary international standards to assure a high quality standard with punctual delivery.
We serve our consumers and clients to provide fast delivery with the most reliable, precise and accurate products as well as to give honest, correct, and helpful informative contents, photos and videos. Rest assured that our products are of excellent quality with superb end-user support.
