Product Specifications
| Prod Model: |
TCDJ-M-9.511-145435VB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

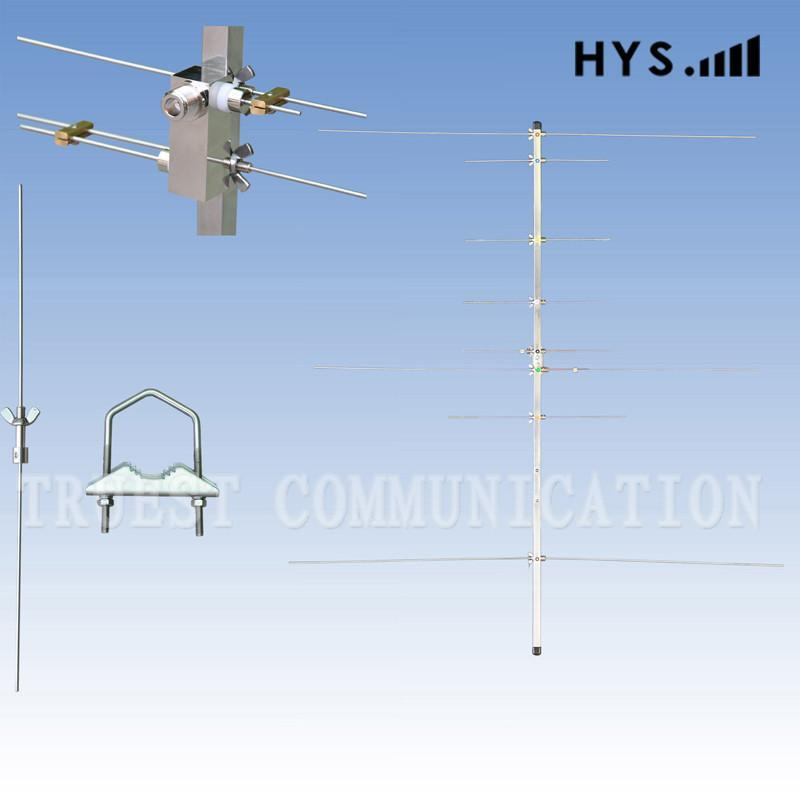

Double Band Yagi Antenna |
| Type: |
Tcdj-M-9.511-145435vb |
| Frequency Range: |
144~146MHz& 430~440 MHz |
| Impedance: |
50ohm |
| Gain: |
144~146MHz( 9.5dBi ) , 430~440 MHz ( 11.15 dBi) |
| Horizontal Beam Width: |
53deg 144~146MHz 45deg; 430~440 MHz |
| Vertical Beam Width: |
48deg;144~146MHz 40deg;430~440 MHz |
| Lighting Protection: |
Direct Ground |
| Connector: |
N-K(Female),So239,UHF Female,SL16-K(Female) |
| Maximum Power: |
50W |
| Directionality: |
Directional Antenna |
| VSWR: |
<1.5 |
Product Description
Product Description
ELECTRICAL SPECIFICATIONS
Frequency Range 144~146MHz& 430~440 MHz
Impedance 50Ω
VSWR <1.5
Gain 144~146MHz( 9.5dBi ), 430~440 MHz ( 11.15 dBi)
Horizontal Beam Width 53° 144~146MHz
45° 430~440 MHz
Vertical Beam Width 48° 144~146MHz
40° 430~440 MHz
Front To Back Ratio >12 dB
Lighting Protection Direct Ground
Connector Type N-K(FEMALE), SO239, UHF FEMALE, SL16-K(FEMALE)
Maximum Power 50W
MECHANICAL SPECIFICATIONS
Dimensions (L/W) 1135× 1045 mm
Weight 725g
Rated Wind Velocity 60 m/s
Mounting hardware Ø 30-Ø 50 mm
|
ELECTRICAL SPECIFICATIONS |
|
Frequency Range |
144~146MHz& 430~440 MHz |
|
Impedance |
50Ω |
|
VSWR |
<1.5 |
|
Gain |
144~146MHz( 9.5dBi ) , 430~440 MHz ( 11.15 dBi) |
|
Horizontal Beam Width |
53° 144~146MHz
45° 430~440 MHz |
|
Vertical Beam Width |
48°144~146MHz
40°430~440 MHz |
|
Front To Back Ratio |
>12 dB |
|
Lighting Protection |
Direct Ground |
|
Connector Type |
N-K(FEMALE),SO239,UHF FEMALE,SL16-K(FEMALE) |
|
Maximum Power |
50W |
|
MECHANICAL SPECIFICATIONS |
|
Dimensions (L/W) |
1135×1045 mm |
|
Weight |
725g |
|
Rated Wind Velocity |
60 m/s |
|
Mounting hardware |
Ø30-Ø50 mm |
|
|
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
