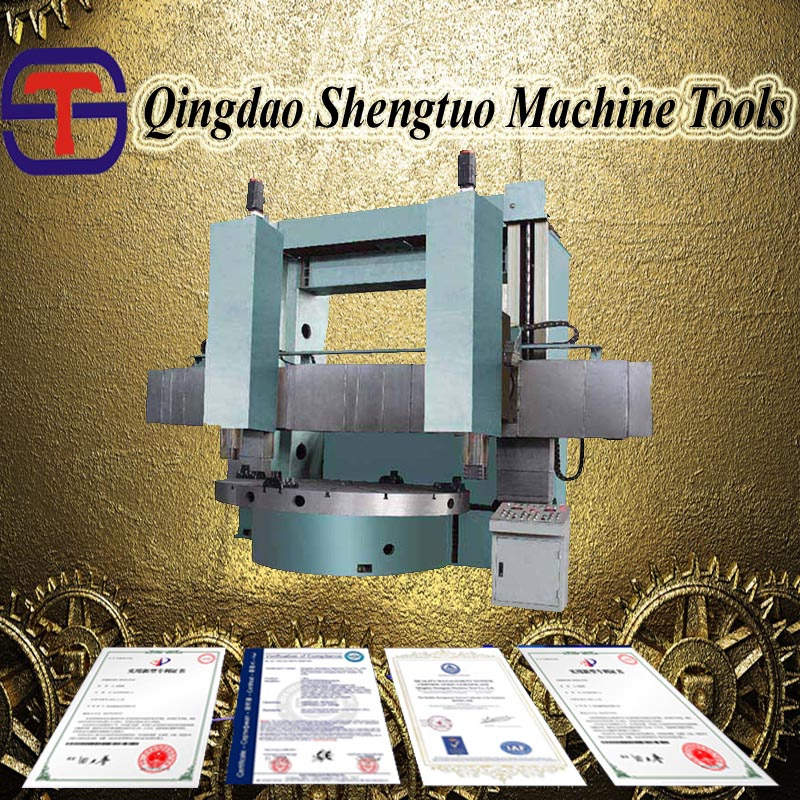

This kind of machine is for cutting and processing various metal workpieces.
It is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on.
And it is mostly used to process large-diameter tire moulds ,large-diameter flanges, various valves and pipelines, pressure vessels, screw propeller,steamer machine accessories,plastic moulds, shafts and other workpieces.
Specifications:
Item | ST-C5225 vertical lathe | Unit |
|
| Max. swing diameter of workpiece | 2500 | mm |
| Maximum torque of table | 45 | KN.m |
| Table diameter | 2250 | mm |
| Max. height of workpiece | 1600/2000 | mm |
| Max. weight of workpiece | 12000 | kg |
| Max.cutting force of tool post | 30 | KN |
| Max. cutting force of side tool post | 35 | KN |
| Range of table speed(2 step/stepless) | 2-65 | r/min |
| range of feed rate | 2-2000 | mm/min |
| Vertical travel of rail head | 1000 | mm |
| Horizonta travel of main head | 1350 | mm |
| size of ram | 190 | mm |
| Machine power supply | 380v,50HZ,3P |
| Overall dimensions | 5600× 4400× 6400 | mm |
| Power of main motor | 37 | kw |
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
