Product Specifications
| Prod Model: |
E1000B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Size: |
Large |
| Certification: |
CE |
| Condition: |
New |
| Application: |
Egg |
Product Description

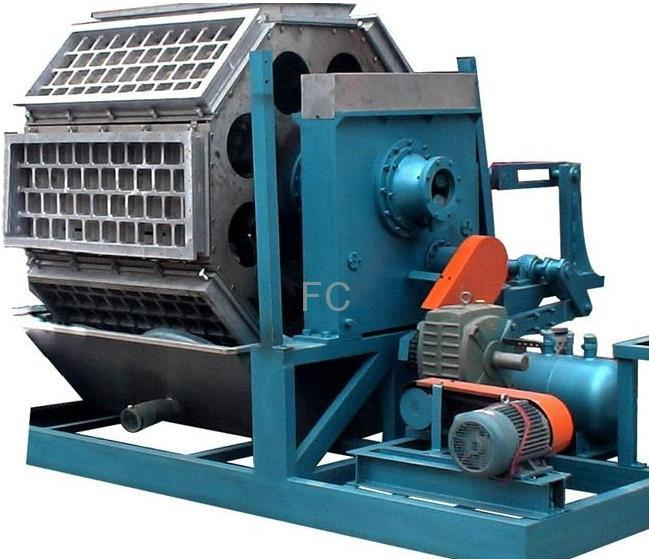

E1000 Rotary machine (full automatic, 4 layer drying line)
Total 8pcs mold=4pcs on forming plant+4pcs transfer mold
Features
Occupation: about 530m2.
Workshop: height ≥4.0m, width≥10m, length≥40m.
Total power for the production line: 78KW.
Workforce for the egg tray machine: 2 people/shift.
Capacity
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
capacity (PCS/HR) |
1000 |
1000 |
1000 |
1000 |
2000 |
600 |
1400 |
Consumption list of egg tray machine:
SL |
DESC |
Consumption per hour |
Remark |
1. |
Waste paper |
55-75 KG |
/ |
2. |
Electricity |
69 KW(airing) |
|
3. |
Water |
140 KG |
/ |
4. |
Coal |
55 KG |
Choose one |
0# diesel oil |
12-14 KG |
Natural gas |
12-14 cubic meter |
5. |
The calorific value of the fuel |
Coal
(6000) kilocalorie |
Energy consumption calculation is based on these date. |
Diesel oil (10000)kilocalorie /KG |
Natural gas (8000)kilocalorie / cubic meter |
Technical parameters of egg tray machine:
model |
Production/h (pieces) |
Mold |
Total power |
Vacuum pump |
Drying equipment |
1000B |
1000B |
8 |
93kw |
7.5kw |
5.5kw |
Pulper
|
Voltage |
Motor power |
Template size |
Operating speed |
Over dimension |
7.5kw |
220/380v |
2.2kw |
1.23m*0.4m |
2times/minute |
2.3m*1.2m*1.6m |
ZH Molded Pulp Co., Ltd is a manufacturing company specializes in manufacture and research of pulp molding machinery. It was established in 1986 on the basis of Hunan pulp molded company that was known as the first company in this field.
With 20 years in this field, ZH Molded pulp Co., Ltd has cultivated the best technology team and a research, manufacture, after-sale serving team which is full of innovation and energy. Now we have developed four series and over 30 pulp molding machineries. Multi-layer dry line we created in 2008 was received by customers worldwide for its energy-saving and covering less. The machineries mentioned above have sold domestic and overseas market because of energy-saving, environmental-protection, advanced design. The overseas market includes South America, Africa, Russia, Middle East etc.
Our promise: We will meet our clients' requests with the best technology, and provide services including consultancy service/design of the workshop/installation of the equipments.
