| Price: | US $ 1/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

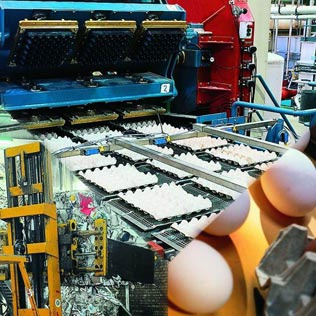

E10000B (full automatic, double rotary, 8 layers drying line) | |||||||||
1. Mainly used for the products with simple structure but in big quantity, such as egg | |||||||||
Trays, fruit trays, cup carriers and disposable medical care products. | |||||||||
Status: Brand new | |||||||||
Product Type: Egg Tray Machine | |||||||||
Processing Type: Pulp Molding Machine | |||||||||
Place of origin: China | |||||||||
Brand: ZH brand | |||||||||
Item no: E10000B | |||||||||
Voltage: 380-440V | |||||||||
Warranty: 12 Months | |||||||||
After-Sale Service: Engineers available to service machinery overseas | |||||||||
2.specification of full auto paper egg tray machine pulp molding machine | |||||||||
Type of products | 30-cell egg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6- cell egg carton/box | 6-cell egg carton/box | Fruit tray | Coffee tray | ||
capacity (PCS/HR) | 10000 | 10000 | 10000 | 10000 | 20000 | 7800 | 13000 | ||
Remarks: The capacity calculation takes the production of 30 cavity egg trays as | |||||||||
the standard.(Size 300X290MM, weight 70g) | |||||||||
SL | DESC | Consumption/hour | remarks |
1 | Waste paper | 685-703kg | / |
2 | Electricity | 340-402kw | / |
3 | Water | 6-6.3ton | / |
4 | 0#diesel oil | 109-162kg | Choose one |
natural gas | 148-208m3 | ||
LPG | 102-163m3 | ||
5 | Chemical for waterproof | 6-12kg | Solid content |
The calorific value of the fuel | 10000k Carl/kg for diesel oil | Energy consumption calculation is based on this data | |
8000k Carl/m3 for natural gas | |||
10000k Carl/ m3 for LPG | |||
1). Production line occupation: about 2000m2, workshop: height≥6.5m Width≥24m length≥84m |
2). Total power for the production line: 503kw |
3). Workforce for the production line: 10-12people/shift |
5. Pulp making system + molding system + drying system + packing system. (1): Pulping system Egg Tray Machine: Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinet, ect. It can make the pulp by the waste paper. And it is the first step in making process. (2): Forming system of Egg Tray Machine: This part mainly is the egg tray forming machine. We could produce the forming mould and transferring mould based on our customers' request. The material of the mould could be Aluminum, Resin, and Plastic. (3): Drying line of Egg Tray Machine: This is the very important in the all of Egg Tray Machine line. When the egg tray is made over by the forming machine, the egg tray will be put on the drying line, they will across the drying channel, and then you can get the dry egg tray! (4): Packing machine Egg Tray Machine: This is the last step of Egg Tray Machine, when we get the finished tray from the drying line, we can packing the egg tray. |
| Prod Model: | E10000B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: | Automatic |
| Size: | Large |
| Certification: | CE |
| Condition: | New |
| Application: | Egg |
