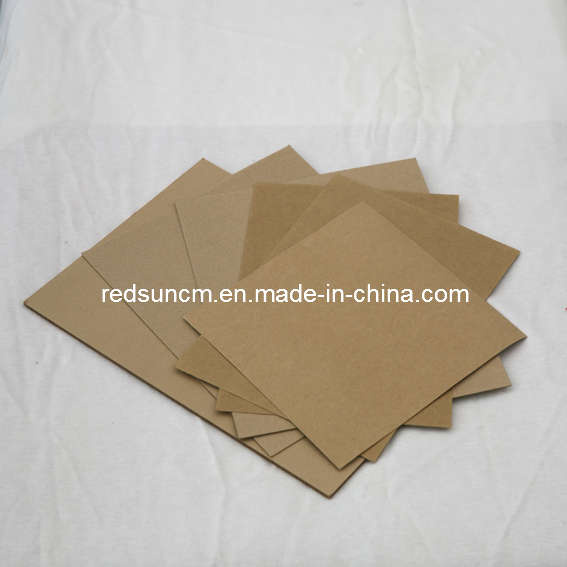

Transformer pressboards are made with pre-compressed grade unbleached sulphate wood pulp, with characteristics of high mechanical, electrical strength, tensile strength, high elongation, low compressibility and proper bending resistance.The excellent properties realized wide-spread application in electrical transmission and distribution equipments like power transformers, shunt Reactors, instrument transformers.etc.
|
NO. |
Items |
Unit |
Standard Data |
Test Result |
|
1 |
Thickness Tolerance |
% |
±7.5 |
2 |
|
2 |
Elongation |
Lengthwise |
% |
≥3.0 |
5.75 |
|
Widthwise |
≥4.0 |
5.45 |
|
3 |
Tensile Strength |
Lengthwise |
N/m 2 |
≥ 100 |
105.8 |
|
Widthwise |
≥75 |
82.5 |
|
4 |
Shrinkage |
Lengthwise |
% |
≤0.5 |
0.48 |
|
Widthwise |
≤0.7 |
0.6 |
|
Thickness |
≤5.0 |
4.7 |
|
5 |
Electric strength (in Oil), |
Kv/mm |
≥40 |
41.5 |
|
6 |
Ash Content |
% |
≤ 1.0 |
0.53 |
|
7 |
Oil absorption |
% |
≥11.0 |
23.52 |
|
8 |
PH value of aqueous extract |
- |
6-9 |
7.23 |
|
9 |
Conductivity of aqueous extract |
Ms/m |
≤5.0 |
4.8 |
|
10 |
Moisture Content |
% |
≤6.0 |
5.8 |
|
11 |
Density |
g/cm 3 |
1.00-1.25 |
1.08 |
|
12 |
Reference Standard |
- |
IEC60641-3-1:1992 |
- |
|
13 |
Test Sample Thickness |
mm |
- |
1.0 |
