Product Specifications
Prod Model: |
H3Y-2, H3Y-4, ST6P-2, ST6P-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
Brand: |
Winston |
Protect Feature: |
Sealed |
Contact Load: |
Low Power |
Operating Temperature: |
-10°-50° |
Product Description

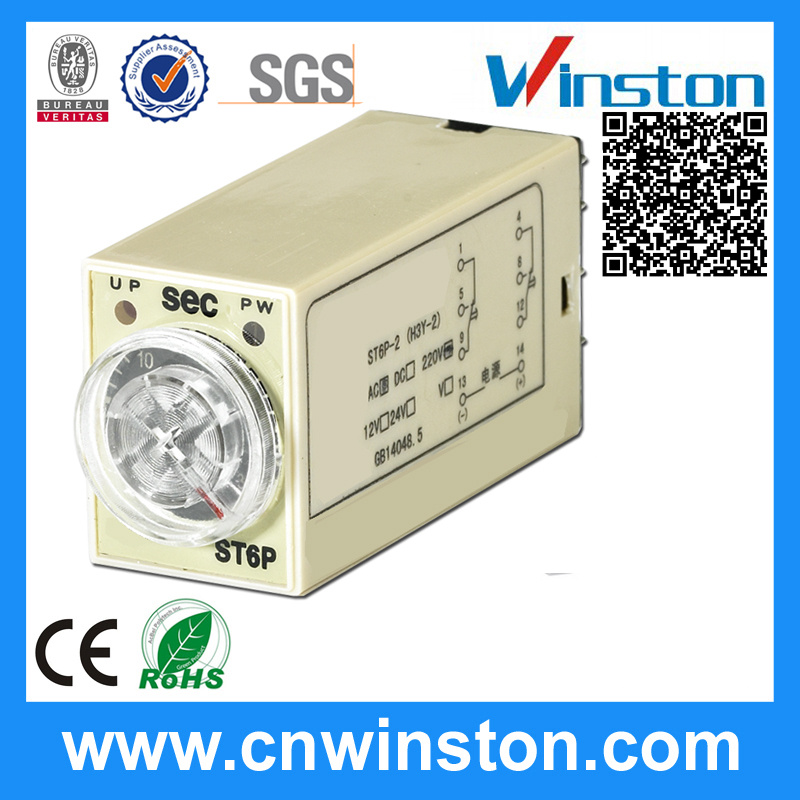

ST6P(H3Y) Super Time Relay /Timer relay /super time delay relay/time switch relay
We are a professional supplier of various kinds of relays. We can supply the high quality of time relay, general relay, mini relay, thermal overload relay, relay socket etc.
Volt: 12V/24V/110V/220V/240V 50/60Hz
Range: 1, 3, 5, 10, 30, 60, 120s /3, 5, 10, 30, 60min/3hrs
Model: ST6P-2/4
Votage: AC 24~220V 50Hz DC 24~110V
Contact: ST6P-2: Timed 2PDT
ST6P-4: Timed 4PDT
Operation: Time-limit operation/self-restting
Timing range: 0.1~1S 2.5~30min 5~60S 1~112h 0.5~5S 5~60min
15~180S 1~10S 0.2~2h 1~10min 2.5~30S 0.5~6h
Specification
Voltage | DC12~48V, AC12V~380V 50Hz/60Hz |
Power Expend | DC1.0W,AC1.0VA |
Control Output | -2,5A 220VAC / -4,3A 220VAC |
Insulation Resistance | DC500V,100mΩ |
Dielectric Strength | BCC1500VAC,BOC1000VAC |
Operating Temperature | -10°C-50°C |
Humidity | 35%-85% |
Life | Mech:106,Elec:105 |
Weight | ≈50g |
Time range
Rate time | Time range | Rate time | Time range |
0.5s | 0.05s~0.5s | 0.5m | 0.05m~0.5m |
1s | 0.1s~1s | 1m | 0.1m~1m |
5s | 0.5s~5s | 5m | 0.5m~5m |
10s | .05s~10s | 10m | 0.5m~10m |
30s | 1.0s~30s | 30m | 1m~30m |
60s | 2.0s~60s | 60m | 2m~60m |
180s | 3m | 180m | 0.1h~10h |
120s | 5.0s~120s | 120m | 0.1h~10h |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
