Product Specifications
| Prod Model: |
PTF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensing Mode: |
Through Beam Reflection Type |
| Sensing Distance: |
10m, 20m |
| Housing Shape: |
Rectangular |
| Output: |
PNP/ NPN/ Relay |
| Output Wire: |
DC 3wires, DC 4wires, AC/DC 5wires |
| Response Time: |
DC: <8.2ms, AC<30ms |
| Ambient Temperature: |
-15c~+55c |
| Supply Voltage: |
10-30VDC,24-240VAC, 12-240VAC/DC |
| Housing Material: |
PC/ABS |
| Connection: |
Cable, M12 Connector |
| Type: |
Through Beam Reflection Photoelectric Sensor |
| IP Rating: |
IP64 |
Product Description
Welcome to Visit Lanbao! ! !

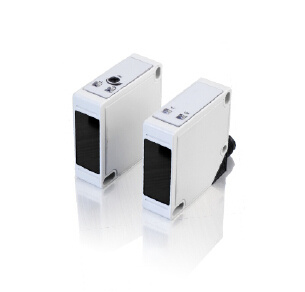

Elevator Through Beam Reflection Photoelectric Sensor ----PTF
LANBAO Photoelectric sensors----Feature
----------------------------------------------------------------------
Optional type: Diffuse reflection, Through beam reflection, Retro reflection, Polarized reflection
AC/DC operation voltage.
LED indicates operation status.
Be able to detect various high reflectance objects, interference-free to ambient light.
Different mounting ways optional, sensing range adjustable.
Used for position limiting and counting in elevator industry
Advantage of Lanbao:
----------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by govern: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in Chinese market, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Lanbao Photoelectric Sensors___ PTF |
|
Sensing mode |
Diffuse reflection |
Through beam reflection |
Retro reflection |
Polarized reflection |
|
Sensing distance |
50cm, 100cm |
10m, 20m |
3m, 5m |
5m |
|
Output |
DC 3wires |
NPN NO; NPNNC
PNP NO; PNP NC |
NPN NO; NPNNC
PNP NO; PNP NC |
NPN NO; NPNNC
PNP NO; PNP NC |
NPN NO; NPNNC
PNP NO; PNP NC |
|
|
DC 4wires |
NPN NO+NC
PNP NO+NC |
NPN NO+NC
PNP NO+NC |
NPN NO+NC
PNP NO+NC |
NPN NO+NC
PNP NO+NC |
|
|
DC 2wires |
/ |
/ |
/ |
/ |
|
|
AC 2wires |
/ |
/ |
/ |
/ |
|
|
AC/DC 5wires |
Relay NO+NC |
Relay NO+NC |
Relay NO+NC |
Relay NO+NC |
|
Response time |
DC:<8.2ms, AC: <30ms |
|
Protection degree |
IP64 |
|
Ambient temperature |
-15~+55ºC |
|
Supply voltage |
10-30VDC, 24-240VAC, 12-240VDC |
|
Housing material |
PC/ABS |
|
Connection |
Cable, M12 connector |
|
Certification |
CE, UL, CCC |
|
