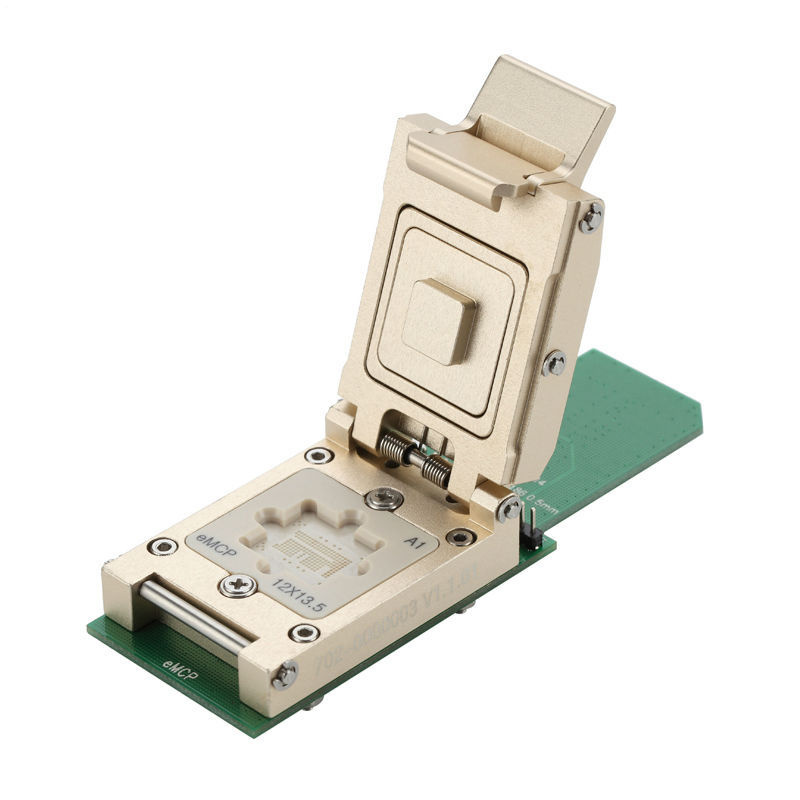

Emcp/ Nand Flash Test & Burn-in Socket Memory IC Testing Contactor Solutions SD Test Sockets BGA186 (eMCP) Socket SD Solution_12X13.5mm

The SD solution is designed for test, debug, validation, and programming of eMMC, eMCP devices
The SD solution provides a compact test solution for eMMC, eMCP devices used in applications such as handheld, mobile, and TV product development.

Test, debug, validation, and programming of  eMMC, eMCP devices
Failure analysis / System and wafer test
Package and Chip qualification
Production prototype / Data recover

Suitable for devices of  Samsung, Hynix, Sandisk, Toshiba, Intel, Kingston etc eMMC and eMCP.
Support eMMC version: ≤eMMC5.0.
Support hot plug, eMMC can be directly connected to PC with SD card reader.
Realize reading, accessing and writting data for eMMC and eMCP devices


Mechanical Socket Body: PPS Socket Lid: AL Contact: Spring Probe Operation Temperature: -40ºC to 140ºC Life Span at Operating Travel:100K min. Cycles Spring Force:27g per Pin

Electrical Current Rating (Continuous) : 2.59A Self Inductance:1.57nH Bandwidth -1dB:10GHz DC Resistance: 42mohm

Place a Device by hand on to the socket. Lock the lid. Connect to PC by SD Card Reader. Now it is ready for use.
