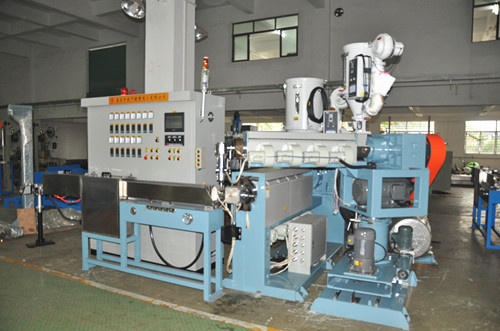

Extrusion Usage High Quality Power Cable Making Equipement
1)Easy operation
2)Siemens PLC
3)DELTA Touch-screen
4)100% factory with best price
Application:
Suitable for the extrusion of PVC, PE and other plastic material, mainly applied in the insulation or sheath extrusion of auto cable, cat 5, 6, 7, power cable, data cable, building wire, electric wire. etc. The changed screw is suitable for extrusion of low smoke halogen free, nylon and other plastic material.
Our Services:
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model reference and equipment technical advice;
3) One-stop service, investment matching, product developing, new materials researching and personnel training.
After-sale services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide high quality and fastest efficient after service.
About Us:
Dongguan Qing Feng Electrical Machinery Co., Ltd. Was established in 2000. It is a high-tech enterprise which specializes in developing and manufacturing wire and cable machinery, such as extruding machines, twisting machines, stranding machines, planetary cabler/cage type twisting machine, taping machine, winding machines, tinning machines and irradiation machine.
Business type: Manufacturer(14 years)
Manufacturing capacity: 70sets/year
Designer: We have a professional and experienced designer team to meet your any requirements.
International market: USA, Italy, Korea, Vietnam, Thailand, Indonesia, Turkey, Iraq, Japan etc
Cooperative partner: America Tyco electronic, Madison Cable, America Belden, Thailand Taiyo Cabletec, Japan Mitsubishi Corporation etc.
We providing OEM/ODM service for customers, with professional Research&Development department, experienced designing work team. Products can be designed according to different structures and materials, every products with customized sketch and drawing, welcome to our company investigating and establishing cooperation business.
|
Model |
QF30 |
QF50 |
QF70 |
QF90 |
QF100 |
QF120 |
|
Cylinder dia. |
φ30mm |
φ50mm |
φ70mm |
φ90mm |
φ100mm |
φ120mm |
|
L/D |
28:1 |
25:1 |
25:1 |
25:1 |
25:1 |
25:1 |
|
Screw rotae speed |
110rpm(MAX) |
110rpm(MAX) |
90rpm(MAX) |
90rpm(MAX) |
70rpm(MAX) |
70rpm(MAX) |
|
(PVC)Extruded capacity |
30kg/hr |
60kg/hr |
120kg/hr |
180kg/hr |
230kg/hr |
300kg/hr |
|
Extruded wire dia. |
0.3-2mmφ |
0.5-5mmφ |
1.5-12mmφ |
5.0-35mmφ |
8.0-40mmφ |
8.0-40mmφ |
|
Line speed |
600M/min (MAX) |
600M/min (MAX) |
600M/min (MAX) |
600M/min (MAX) |
600M/min (MAX) |
600M/min (MAX) |
|
Pay off stand |
300mm rainbow motor driver |
500mm rainbow motor driver |
500mm power tension |
630mm power tension |
1000mm power tension |
1000mm power tension |
|
Extruder motor |
11KW 4P AC motor |
15KW 4P AC motor |
22KW 4P AC motor |
37KW 4P AC motor |
55KW 4P AC motor |
75KW 4P AC motor |
|
Auto feeding |
25KG(MAX) |
50KG(MAX) |
75KG(MAX) |
100KG(MAX) |
150KG(MAX) |
150KG(MAX) |
|
Diameter controller |
±0.002mm |
±0.002mm |
±0.01mm |
±0.01mm |
±0.01mm |
±0.01mm |
|
Heat precision |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
|
Cooling water sink |
"W" shape single layer |
"U" shape double layer |
"U" shape double layer |
"U" shape single layer |
"U" shape single layer |
"U" shape single layer |
|
Capstan dia. |
φ318mm doubel whees |
φ318mm doubel whees |
φ477mm doubel whees |
φ477mm doubel whees |
φ636mm doubel whees |
φ636mm doubel whees |
|
Capstan motor |
3.7KW 4P AC motor |
3.7KW 4P AC motor |
5.5KW 6P AC motor |
5.5KW 6P AC motor |
5.5KW 6P AC motor |
5.5KW 6P AC motor |
|
Store wire length |
250M(MAX) |
250M(MAX) |
250M(MAX) |
200M(MAX) |
200M(MAX) |
200M(MAX) |
|
Take up motor |
3.7KW 4P AC motor |
3.7KW 4P AC motor |
3.7KW 4P AC motor |
5.5KW 4P AC motor |
5.5KW 4P AC motor |
5.5KW 4P AC motor |
|
Take up bobbin |
φ300-500mm (MAX) |
φ400-630mm (MAX) |
φ400-630mm (MAX) |
φ400-630mm (MAX) |
φ600-1000mm (MAX) |
φ3600-1600mm (MAX) |
Dongguan Qing Feng Electrical Machine Factory was established in 2001, and is a high-tech enterprise which specializes in developing and manufacturing wire and cable machinery such as the whole line of extruding machines, twisting machines, stranding machines, winding machines, tinning machines and taping machines.
As one of the top leading wire cable equipment manufacturers in China, we have two manufacturing locations, one in Dongguan, China and one in Kunshan, China. With modern factory buildings and the headquarter called SINO STAR CORPORATION HK Co., Limited as our export company is located in HK, we have a professional R&D team and an engineering department with experienced engineers. With the advanced large CNC machining centers, numerical control milling machines and surrounding manufacturing and processing centre, our company has implemented the processing capacity in a great measure. In order to improve our product performance, we adopt the world famous brand components.
For the high quality and Long-lasting Operation advantages of our products, we have won a good reputation which not only is acknowledged by many old customers, but also bring more and more new customers. With rich technology strength and high quality service, our products have been selling well to clients in Korea, Taiwan, Japan, America, Vietnam, India and East and South Asia.
Our company scrupulously follows the pledge of "constantly solving the problem and improving the performance, providing excellent service for each customer, and providing high-tech support for each equipment".
All our staff hope to make great efforts for your satisfaction!
