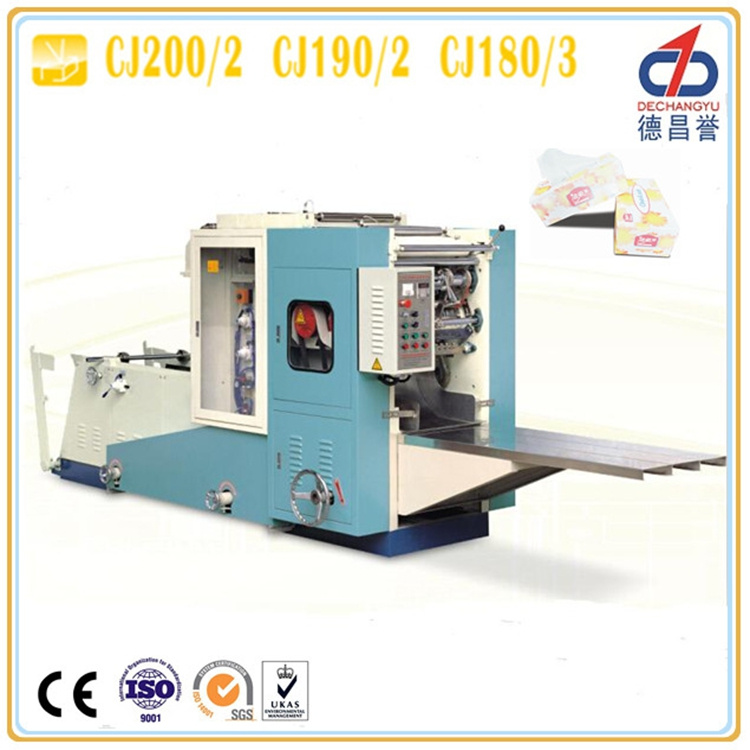

Factory 3 Lines Automatic Drawing Type Facial Tissue Machine
| Price: |
US $ 10000/Set |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Factory 3 lines Automatic Drawing Type Facial Tissue Machine What is the details of this machine? The facial tissue machine use to slit the and fold the paper web on the cutting roller into interleaved facial tissue. With vacuum folding unit, Automatic stacking unit, this machine features high speed, precious counting and low wastage. The facial tissue making machinery adopt advanced PLC programminglogic controlling technology, variable frequency speed regulation, automatic stagger calculating for dividing layers, and a HMI operation interface inputting display control system.With a high degree of automation, these machinery fold original paper into gemel shape and rectangular tissue by vertically and horizontally slitting rolls after embossing. With simple control and high production efficiency, this machine can load original paper with 2 shafts. Slitting, edge removing, compounding and folding can be finished at the same time, thereby reducing production stages and lowering expenses.
Product Feature:
1) Pneumatic paper loading, stepless speed regulator, pulls paper with pneumatic belt
2) Easy to adjust the tension of paper with different qualities
3) Decreases need for manual labor
4) Function of automatic stopping at breakage of paper
5) With embossing and line-embossing devices, the operation method of embossing and no line embossing or unembossing and line-embossing are optional to different demands of products with different qualities
6) Products with different widths can be folded at the same time, with the slitting width able to be adjusted randomly in the width range from 100 to 210mm
7) With an original paper edge removing device, the process of uninterrupted slitting and edge removing can be run at the same time
8) Adopts a vacuum pump adsorption system to ensure large absorbing volume and stable pressure loading
Parameter:
Max Width of Parent Roll: 420mm
Max Dia. Of Parent Roll: 1100mm
Core Inner Dia.: 76.2mm
Open Size of Finished Product: 198x(100-210)mm
Folded Size of Finished Product: 105x(100-210)mm
Machine Speed: 1000-1600 sheets/min | Model | CJ-200/2 | CJ-190/2 | CJ-180/3 |
Parent reel width | 400mm | 400mm | 540mm |
Speed |
90-100m/min(900-1000 sheets/min/lane)2 plies |
Max outer diameter
of raw paper | 1100mm
others please specify |
Inner diameter
of raw paper core | 3''(76.2mm) |
Finish product open size | 198x100-200mm | 195x100-200mm | 180x100-180mm |
Finish product floding size | 105x100-200mm | 95x100-200mm | 90x100-180mm |
Compressed air |
Supplied by user |
Embossing |
Steel to rubber, steel roller, please specify |
Edge-embossing |
Pneumatic type, integrated counter-roller |
| Counting | Ink counting |
Further recognise this machine and us.
Why choose us?1.We are Alibaba/Made-in-china assessed 13 years Gold Supplier.2.We are the famous science and technology professional enterprise specialized in researching, developing, manufacturing and selling of tissue paper converting machine,best production capability ,best quality control, best service .3.Approved the ISO9001-2000 Quality System Certification , CE Certification, SGS Certification, etc and owned many product patents.4.100% QC inspection and debugging Before Shippment.5.100% rest assured after-sales service. Our servicePre-Sale Services:According to your need of actual situation and budget, our perfessional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.) After-Sales Service:1.We also provide the door to door abroad installation, equipment debugging, technical training service; 2.Warranty:1 year quality assurance3.Building customer files, solving various technical problems for user;4.Our technical team give you 100% rest assured global presence service even over the warranty period. FAQQ1: What is the Warranty for the machine? A1: For the machine,we have 1 year warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost. Q2: How to operate and maintain the machine? A2: First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service. Q3: How to get raw material or auxiliary material for the machine? A3: Our company has more than 20 years experience in this industry, we have accumulated much more contact information of upstream & downstream firms, in the field of raw material, auxiliary material and package of tissue. We belive our professional team can give you best solution for your production configuration. Q4: How to find the matching accessories or wearing parts of the machine? A4: Actually, we will replace it for free when wear out in warranty period; Out of the warranty time, you can buy it from us with favorable price or from other place near you, most of our accessories and wearing parts are standard for you. How to Contact Us?Send your Inquiry Details in the Below for free, Click "Send" Now!
| Prod Model: |
CJ-200/2, CJ-190/2, CJ-180/3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Paper Machine |
| Usage: |
Household Paper Machine |
| Computerized: |
Yes |
| Real Running Speed: |
＞800PCS/min |
| Certification: |
ISO |
| Condition: |
Used |
| Type: |
Box Type, Paper Cutting Machine |
| Automatic Grade: |
Automatic, Semiautomatic |
Foshan Nanhai Dechangyu Paper Machinery Manufacturing Co., Ltd. Was founded in 1988, Its predecessor was Dechang Hardware Machinery Factory. We were one of the pioneer professional tissue converting machinery manufacturer in China. Undergoing 20 years of development, our company has grown as a domestic leader in tissue converting machinery manufacturing industry! We are also honoured to be the unique manufacturer in tissue converting machinery industry being recommended by the Guangdong International Trade Promotion Committee to the European Union Countries! Our company is located in Nanhai, Foshan, Guangdong, near to Guangzhou, with efficient traffic network throughout the country. Moreover, we can enjoy international transportation service attributed to the vicinity to Hong Kong. Our total factory area is more than 40, 000 square meters. Thanks to the scientific and modernized management, we have formed a team of elite as our staff so as to create our unique and effective system on public relationship and the research and development.
Our company endeavours in design, research and development, production and sales of tissue converting machinery. We aim at producing converting machinery for facial tissue, toilet roll, pocket handkerchief, napkin and kitchen towel, by a series of rewinder, facial tissue interfolder, pocket handkerchief folder, napkin folder, slitter rewinder, core winder and non-woven machines. By referring to the international standard as guidance, we have critically up-graded on production and quality control. We have got the ISO9001 certification and CE certificate as well as numerous national patents. Our company specializes in the design and production from low to high end of complete product range, as well as the whole converting production line. We do also provide equipment layout design, flow chart, pre-sale and after-sales services so as to gain every customer's trust and support.
Our sales network covers more than 60 countries and regions of the five continents and keeps growing. We will eventually achieve the first class machine quality and service standard and will lead the industry to become a worldwide brand.
We are looking forward to having your continued support for Dechangyu and cordially welcome your visit and guidance!
