Product Specifications
| Prod Model: |
FW1019 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inch |
| Descriptiom: |
Radio Components |
| Resolution: |
1280X800 |
| Brightness: |
400CD/M |
| Application: |
Broadcast Film Making |
| Input: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video,Audio |
| Output: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video |
| Backlight: |
LED |
| Input Voltage: |
DC7V-12V |
| Install Way: |
1/4"-20 Thread Socket(All 4 Sides) |
| Type: |
Camera LCD Screen |
| Compatible Brand: |
Canon |
Product Description

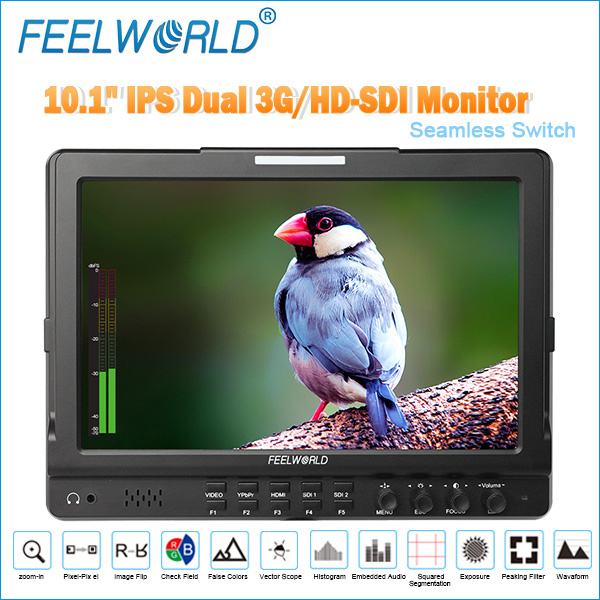

FEELWORLD 10.1" 3G HD SDI LCD Monitor for radio broadcasting FW1019
Advanced Features:
**Seamless Switch
*Vetor scope
*Waveform
*RGB Histogram
*Histogram
*Peaking Focus Assist
*Camera 5D II Mode
*Check Field(Mono/Red/Green/Blue)
*Scan Mode
*False Color
*Exposure
*Squared segmentation(Zoom one of the images to realize full screen)
*Pixel-to-Pixel
*Mirror image(L/D, L/R)/Freeze
*Embedded Audio
*Zoom-in
*Ratio(4: 3/16: 9)
*Center Marker/screen Marker
*Color temp-adjust
* HDMI Support Mode: 1080/24p/25p/30p; 50i/50p; 60i/60p; 720/50p/60p; 480i/480p; 576i/576p
Inputs: 3G/HD/SD-SDIx2, HDMI, Ypbpr, Video, Audio
Outputs: 3G/HD/SD-SDIx2, HDMI, Ypbpr, Video
| Description: | 10.1" Fully Featured Dual 3G-SDI Camera-Top Field Monitor |
| Model: | FW1019 |
| Resolution: | 1280x800 |
| Dot pitch : | 0.0565(H)x0.1695(V)mm |
| Brightness: | 350cd/m² |
| Contrast: | 800:1 |
| Aspect ratio: | 16:9 |
| Backlight: | LED |
| Response Time | 5ms |
| HDMI Support Mode: | 1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p |
| Inputs: | 3G/HD/SD-SDIx2,HDMI,Ypbpr,Video,L/R |
| Outputs: | 3G/HD/SD-SDIx2,HDMI,Ypbpr,Video |
| Viewing Angle: | 89°/89°(L/R) 89°/89°(U/D) |
| Power Consumption: | ≤1 3 W |
| Input Voltage: | DC7V-12V |
| Install Way: | 1/4"-20 Thread Socket(All 4 Sides) |
| Unit Size: | 258L × 192W ×39H(mm) |
| Unit Weight: | 780g |
| SDI Support Mode: | Advanced Features |
| NO. | Resolution | Catalogue | *Seamless Switch |
| 1 | 1080P@60HZ/59.94HZ | 3G-SDI | *Vetor scope |
| 2 | 1080P@50HZ | 3G-SDI | *Waveform |
| 3 | 1080I@60HZ/59.94HZ | HD-SDI | *RGB Histogram |
| 4 | 1080I@50HZ | HD-SDI | *Histogram |
| 5 | 1080P@30HZ/29.97HZ | HD-SDI | *Peaking Focus Assist |
| 6 | 1080P@25HZ | HD-SDI | *Camera 5D II Mode |
| 7 | 1080P@24HZ | HD-SDI | *Check Field(Mono/Red/Green/Blue) |
| 8 | 720P@60HZ/59.94HZ | HD-SDI | *Scan Mode |
| 9 | 720P@50HZ | HD-SDI | *False Color |
| 10 | 720P@30HZ/29.97HZ | HD-SDI | *Exposure |
| 11 | 720P@25HZ | HD-SDI | *Squared segmentation(Zoom one of the images to realize full screen) |
| 12 | 720P@24HZ/23.97HZ | HD-SDI | *Pixel-to-Pixel |
| 13 | 480I@60HZ/59.94HZ | SD-SDI | *Mirror image(L/D,L/R)/Freeze |
| 14 | 576I@50HZ | SD-SDI | *Embedded Audio |
|
|
| *Zoom-in |
|
|
| *Ratio(4:3/16:9) |
|
|
| *Center Marker/screen Marker |
|
|
| *Color temp-adjust |
