Flange Type Integrated Orifice Plate Throttling Flow Meter
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
orifice plate flow meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy.: |
±1.0% |
| Pressure(MPa): |
0.6,1.0,1.6,4.0,etc. |
| Signal Output: |
4-20mA, Pulse |
| Size.: |
Dn:3-1100mm |
| Nominal Pressure: |
≤32MPa |
| Accuracy: |
>?à1% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
> DN500 |
| Measuring Media: |
Gas |
| Type: |
Orifice Plate Flow Meter |
Product Description

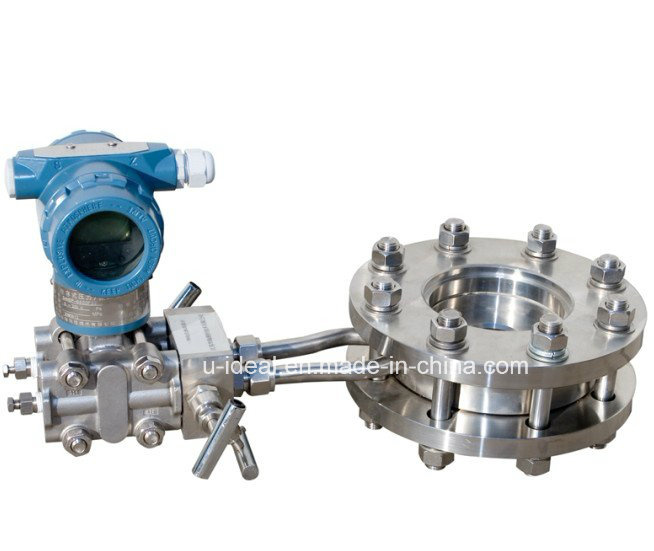

Flange type Integrated orifice plate throttling flow meter
Specifications
1,The structure of the throttle flow equipment is easy to copy
2,Very stable
3,Reliable capability
4,Long working life
Integrative type standard orifice plate is a conical body which is pending in the center of pipeline,it can improve the flow field.the high pressure P1 from tube wall which is the flow body has not yet throttling accelerated before vertebral devices;Low pressure P2 are taken from the after centrum rear,and it can draw forth transmitter branch pipe in front of inner vertebral,its square root of differential pressure(P1-P2) is proportional to the rate of flow,then work out a fluid flow,the products are widely used in flow measurement for the liquid,gas or steam of the steel industry,electric power,chemical etc industry
Application:
chemical power supply metallurgical mine oil water supply and drainage paper making pharmaceutical food and beverage
Model selections
caliber(mm) | DN50~1000m |
| Measured medium | Liquid,common gas,saturated stream,superheated steam,others |
| Connection mode | Flange connection type,Flange card installed type,inserted type,others |
| special mark | Common,standard signal output,Intrinsically safe explosion-proof |
| special mark | Scene shows,high temperature compensation,pressure compensation |
| special mark | Temperature-pressure compensation |
| Inserted type Caliber | DN100~DN2000 |
|
|
