Product Specifications
| Prod Model: |
YT-4800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
4 Color Flexo Printing Machine |
| Color: |
4 |
| Model: |
Yt-4600 |
| Max. Width Of Material: |
600mm |
| Max. Width Of Printing: |
560mm |
| Printing Length: |
191-914mm |
| Max. Web Diameter: |
450mm |
| Max. Printing Speed: |
5-50m/Min |
| Plate Thickness: |
2.38mm |
| Total Power: |
10.87kw |
| Plate: |
Relief Printing |
| Type: |
Ink Jet |
| Embossing Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
Product Description

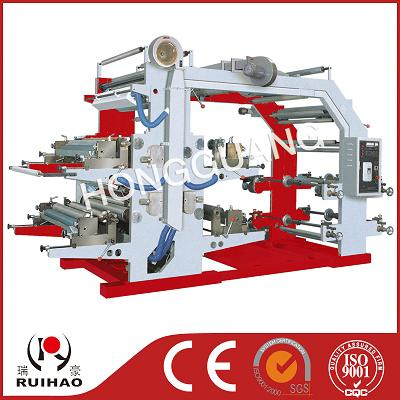

Name: Four-Color Flexo(Elexographic) Printing Machine (YT)
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag fi food, supermarket handbag, , vest bag and clothes bag, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vestbag and clothes bag, etc.
Model
| YT-4600
| YT-4800
| YT-41000
|
Max. width of substrate
| 600mm
| 800mm
| 1000mm
|
Max. printing width
| 560mm
| 760mm
| 960mm
|
Range of printing length
| 191to 914mm
| 191to 914mm
| 191to 914mm
|
Max. diameter of web
| 450mm
| 450mm
| 450mm
|
Printing speed
| 5to 50m /min
| 5to 50m /min
| 5to 50m /min
|
| Plate thickness (both-side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
Total power
| 10.87Kw
| 12.5Kw
| 14.37Kw
|
Machine weight
| 3000kg
| 3500kg
| 4000kg
|
Outline diameter
| 4200*1600*2400
| 4200*1800*2400
| 4200*2000*2400
|
In the machine field, "Hongguang" has fast developed by study and apply advanced technique. "Hongguang" machinery has passed ISO9001: 2000 international quality system and own imports and exports right. According to the service concept of "cast elaborate, good faith manager". "Hongguang" Machinery provides lifelong maintenance for all the products that it sells.
At the same time, according to the different production conditions and capabilities of different customers, we provide convient, scientific and economic project budget plans. By means of outstanding technical support, and taking into consideration what our customers want, we lead them to the success that they desire. "Hongguang" Machinery's strength relies on management strategy that places service firstand foremost, and management operations that achieve excellent scientific results. We always endeavor to carry forward the spirit of the nation, creat a brand name for the nation.
At the start of the new century, we have put for ward new lines of products that include thansparent film 3D packer, film blowing machine, bag-making machine, and printing machineetc...Our products have seen excellent sales at China, as well as in 30 different regions and countries in Asia, Africa and Europe.
"Hongguang" Machinery are willing to cooperate with friends of various circles at home and abroad, March forward hand in hand and create brillingce again.
