Product Specifications
| Prod Model: |
FST600-203 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
-50~+400°c |
| Accuracy: |
0.3%Fs 0.5%Fs |
| Sensor: |
PT100, PT1000 |
| Output: |
4-20mA, 0-5V, 0-10V |
| Supply Voltage: |
9-30V or 15~30V |
| Probe Length: |
50mm or Customized |
| Probe Dia: |
6mm or 8mm |
| Pressure Screw: |
G1/4, R1/4, NPT1/4 , M20*1.5 or Customized |
| Electrical Connection: |
Direct Lead, DIN43650, M12 or Customized |
| Certificate: |
CE, RoHS |
Product Description

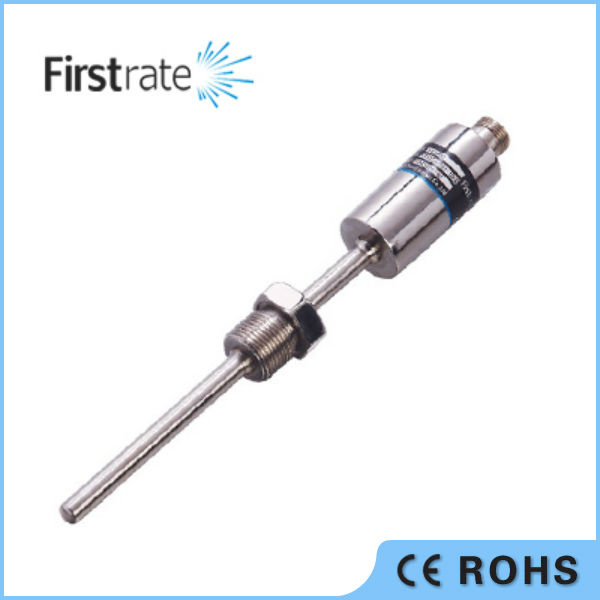

Fst600-203 -50~+400°C acceptable temperature sensor
Features
Easy to install, several optional testing range
Dual use for gas and liquid, used to various material compatible with 316L stainless steel
Several optional linear analog signal
Quick response, high accuracy
Good longterm stability, low energy consumption,smart
Applicable Scope
Pipe and ventilation systems
Hydraulic and pneumatic systems
Cooling and heating systems
Water supply and water heating systems
Air-conditioning systems
Automation system temperature mensuration and control
Tchinical Index
| Project | Parameter |
| Standard Range | Testing range(ºC):0~250;0~300;0~350;0~400; |
| Installation Mode: Inserting |
| Depth of Inserting (mm): 50mm (typically, beyond the screw threads); custom-made available. |
| Probe Size(mm):Φ6,Φ8 |
| Technical Index | Sensor | Pt100 or Pt1000 |
| Signal Output | 4~20mA 0~5VDC 0~10VDC |
| Signal Line Specification | 2wire 3wire 3wire |
| Supply Voltage | 9~30VDC 9~30VDC 15~30VDC |
| Accuracy | ±0.1%FS ±0.3%FS ±0.5%FS |
| Pressure Resistance | Typically 40bar (Max300bar) |
| Longterm Stability (1 Year) | ±0.1%FS |
| Response Time | T=50ºC 2.3s;T=90ºC 5.4s |
| Electric Protection | Reversed Polarity and Overload Protection and Optional Surge Protection. |
| Ambient Temperature | -40~+85ºC |
| Storage Temperature | -40~+125ºC |
| Housing | 316L stainless steel |
| Wetted Parts | 316L stainless steel |
| Environmental Protection | IP65 |
Buying Guides
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
what is your medium: gas, water or other ... ?
sensor: pt100 or pt1000 ?
tesing range:
output: 4-20mA , 0-5V or ....?
screw: G1/4, 1/4NPT, R1/4, M20*1.5.....?
electrical connection: DIN43650, Packard, Direct lead ..... ?
rod dia: 6mm or 8mm or... ?
rod length: 50mm or ... ?
Whether need cable ?
quantity: ?
price items: CIF or Exw or FOB ?
Your complete company name,address, post code,contact person, tele, fax etc.
Our service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 7-10 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. 7 days free replace & 1 year free repair for quality warranty
