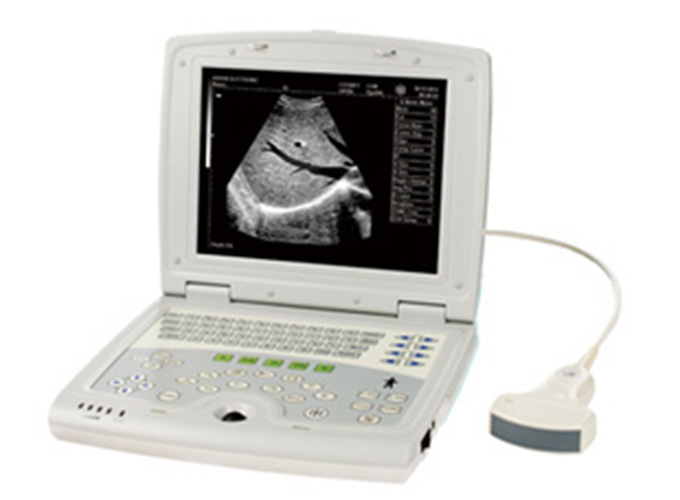

Full digital B mode ultrasonic diagnostic instruments AM-5000
- Laptop, slim design, smart and light, convenient for carrying, easier for examining patients at home.
- 10.4" High resolution color LED monitor, high brightness, high contrast, wide visual, image clear and exquisite.
- Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
- 100 frames permanent storage, 256 frames cine loop.
- Eight pseudo colors (incl. B/W).
- Light touch keyboard, trackball and encoder, easy operation for doctor.
- High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple.
- Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.
- General measurement: Distance, perimeter, area, volume, heart rate, GA, EFW, EDD.
- Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement and OB report.
- Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
Parameter:
- Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
- 10.4" High resolution color LED display, high brightness, high contrast, wide visual, and clear image.
- Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
- Single probe socket, automatically identify the probe, support several optional probes.
- Body mark: 64 body marks with probe position.
- Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
- 10 kinds of Magnification, maximum display depth is 240mm.
- Gain range: 0~127dB.
- Dynamic range: 27~90dB.
- Gray: 256.
- Intelligent TGC control: Near-field and far-field adjustment.
- Adjustable and intelligent focus.
- Frame frequency: 30 frames/second.
- Pseudo-color: 8 kinds (incl. B/W).
- Permanent image storage: 100 frames.
- Cine loop: 256 frames.
- Puncture guiding function(2 guiding lines, angle and position adjustable).
- General measurement: Distance, perimeter, area, volume, heart rate, GA, EFW, EDD, angle histogram, sectional view, Stenosis rate, etc.
- Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, LMP, AFI, Fetus growth curve and OB report.
- GYN Measurement: Uterine volume, Endometrial thickness, Ovarian volume, Dominant follicle, Cervical long-necked, Gynecological report.
- Urological Measurement: Residual urine volume, Prostate volume, Report of the urinary tract.
- Kidney Measurement: Cross-sectional area, Kidney volume, Kidney report.
- 6 kinds grid setting for quick measurement.
- USB port support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports.
- Dual-mode TV output: PAL/NTSC, it could connect to video recorder and ultrasonic working station.
- Adapter rating: 100-240V~, 50-60Hz, 70VA. Output of adapter: DC12V 3.0A. Maom device rating: DC12V 3.0A.
- Battery: Two pcs of high-capacity lithium Battery( 2700MAh), more than 200 minutes work.
- Net weight: 2.2kg.
- Main unit size: 290x245x48mm(length x width x thickness).
Standard configuration:
- Main unit: 1 pc.
- 3.5MHz multi-frequency abdomen convex probe: 1 pc.
- Power adapter: 1 pc.
- Lithium battery: 2 pcs.
- Metal case: 1pc.
- Battery Charger: 1pc.
Optional configuration:
Probe
- 7.5MHz multi-frequency high linear probe
- 6.5MHz multi-frequency trans-vaginal probe
- 5.0MHz multi-frequency micro-convex pediatrics probe
- 3.5MHz multi-frequency micro-convex cardiac probe
- USB flash disk
- Trolley
- Video recorder (P93W-S)
- Battery (2700mAh)
