Product Description:

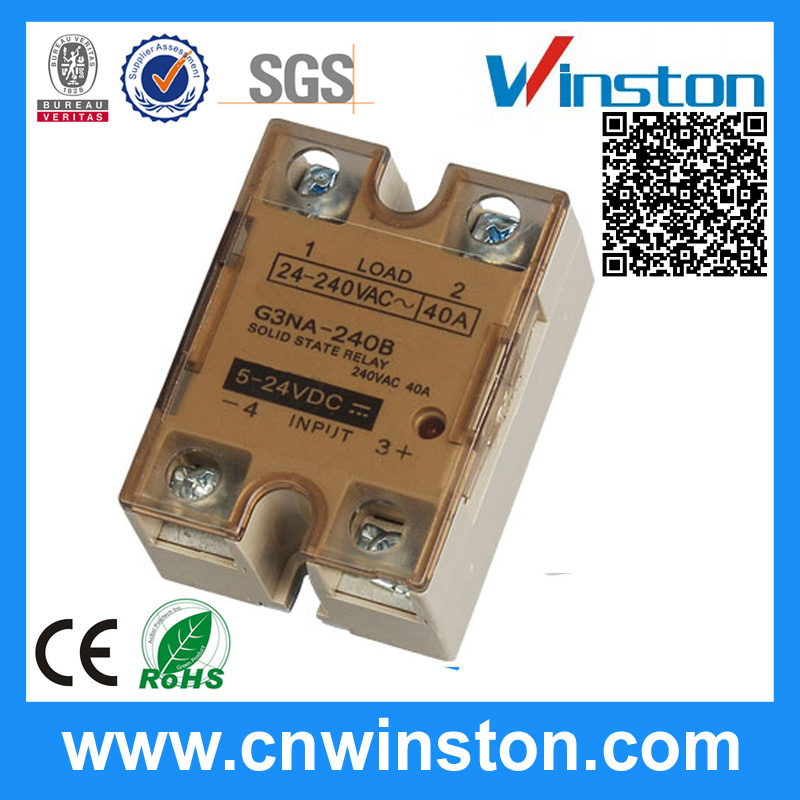

G3NA-DD Single phase Solid state relay
Specification:
1. Bidirectional thyristor output, zero voltage, zero current turn off;
2. Optical isolation between the input circuit and output circuit;
3. Isolation between the input - output voltage 2500 v.
4.100% load current aging test, through the European CE certification
| Load voltage | 60VDC/110VDC/220VDC |
| Load current | 10A 20A 25A 30A 40A |
| Control voltage | 4-32VDC |
| Control current | DC3-25mA |
| On voltage | ≤ 1.5V |
| Off leakage current | ≤2 mA |
| On-off time | ≤10mS |
| Dielectric strength | 2000VAC |
| Insulation resistance | 500MΩ/500VDC |
| Ambient temperature | -30ºC ~+75ºC |
| Mounting methods | Nut |
| The work instructions | LED |
| Weight | 85g |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
Our Services
| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
