Gh1502t Triaxial Acceleration/Vibration Sensor

Product Specifications

Prod Model:	GH1502T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Temp.:	-40~85°c
Nonlinearity:	0.1%Fs
Power:	9-30VDC
Shock:	2500g/0.5ms
Bandwidth:	800 Hz
Output:	0.5~4.5V
Certification:	CE, ISO9001, RoHS

Product Description

High Quality:
1. Turnkey Service
2. CE, ISO9001, RoHs
3. OEM Service
4. Accept small order

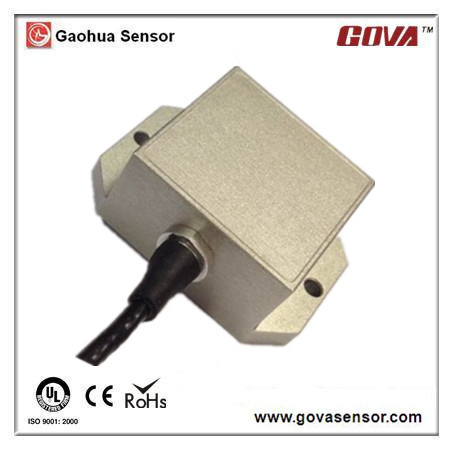

GH1502T Triaxial Accelerometer


******Features
> Capacitive Micro machined
> 9~30V wide range supply
> 0.5~4.5V Single Ended Output
> Simple four wire connection
> Low noise & High accuracy(non-linearity)
> Non Standard Ranges Available


******Introduction
The model GH1502T is a multi-purpose accelerometers. It combines and integrated high performance sensor chip and advanced circuit technology processing which makes it with very low noise as 100ug (root Hz).


******Application
Vibration Analysis
Tilt Measurement
Machine Control
Alarm System
Vibration Monitoring
Robotics
Instrumentation



******Specification

	GH1502T	GH1505T		GH1510T		GH1513T
Range	±2G	±5G		±10G		±13G
Zero Bias	2.5V±0.05V
0 Bias Temp.	±1.0 mg/ºC
Bandwidth	800 Hz
Sensitivity	1000mV		400mV		200mV		133mV
Sens. Bias Temp	±0.01%/°C
Nonlinearity	0.1%FS
Cross Axis Sensitivity	2.0%
Work Temp.	-40~85°C
Shock	2500G/0.5ms
Sealing	IP65

                                                  *Unless otherwise specified, Vs =12VDC, TC=25°C




******Electrical Connection


	RED	BLACK	YELLOW	BLUE	GREEN	WHITE	BROWN	GREY	PURPLE
Voltage Output	+12V	GND	Xout	Yout	Zout	NC	NC	NC	NC
RS232 Output	+12V	GND	TXD	RXD	NC	NC	NC	NC	NC

                                                               * Definition may change without notice



******Order Note
1. The material of measuring medium should be compatible with the stainless steel. If it is corrosive, pls specify its material in detail.

2. Please note it in detail if your application environment is critical or the elements which may influence the accelerometer normal operation existed.

3. The structure and demension of the accelerometer can be used for most of the application occasions, if your application space is too small or having other requirements, please specify it in detail.

4. All specifications are subject to change. Contact Gaohua for specifications and engineering drawings that are critical to your application. Drawings contained in this document are for reference only.
