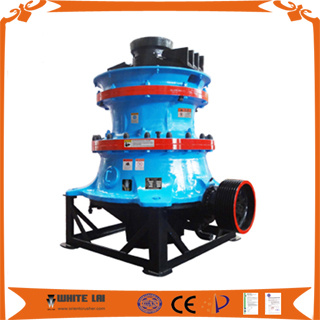

Gpy Single Cylinder Hydraulic Cone Crusher for Stone Crushing (GPY200)
| Price: |
US $ 100000-180000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
GPY Single Cylinder Hydraulic Cone Crusher Machine for Stone Crushing (GPY200)Single Cylinder Hydraulic Cone Crusher Specifications:| 1.Name: | Single Cylinder hydraulic cone crusher |
| 2. Model:: | GPY200 |
| 3.Eccentric Ratio: | 25mm |
| 4.Power | 160kw |
| 5.Discharge Size | 15mm |
| 6.Capacity | 105-125t/h |
| 7.Crusher Cavity | F |
| 8.Feeding Size | 70mm |
Single Cylinder Hydraulic Cone Crusher Brief Description:
1.Name:hydraulic cone crusher
2.Model:GPY200
3.Quality:national quality control standards
4.Similar to symons, minyu standardSingle Cylinder Hydraulic Cone Crusher Introduction:
White Lai GPY series of single-cylinder hydraulic cone crusher is our company designed
by introducing and absorbing foreign advanced technology, on the basis of optimal design of a high-energy production of single-cylinder hydraulic cone crusher. Laminating machine
uses design principles and energy combines with optimized crushing chamber, a light
weight, large capacity, better product shape, wear parts and low cost.Single Cylinder Hydraulic Cone Crusher Working Principle:
Process is broken between the cone and the eccentric rotation of the moving cone
completed. The horizontal axis of the crusher through triangle belt driven by a motor,
the horizontal shaft driven by eccentric gear, forcing the eccentric shaft eccentricity
cycle movement. Feed into the crusher crusher through the upper part of the mouth
to feed, gravel crusher discharge through the lower discharge port.
Single Cylinder Hydraulic Cone Crusher Advantages&Characteristic:
1.Hydraulically adjustable discharge opening, combined with user-friendly design, not only
saving labor, and easy, and can achieve stepless adjustment, and with high controlled. .
2.Single cylinder hydraulic adjustment spindle, cone, overall lift to regulate the size of the
nesting population of purpose and resolve the side of the rack tilt cylinders and damage
the host problem.
3.If foreign body in crushing cavity , pressure regulating system automatically starts,
conduct relief protect nesting population automatic zoom, allowing foreign body is
discharged through the discharge port machinery, the purpose to protect the equipment.
4.Quick replacement of wearing parts, joints between the bowl and the cone fit solid,
reliable, no irrigation filling supplements, eliminating the need for culling and replacement
parts are filled with every fill material time.
5.With low hydraulic operating pressure, the hydraulic system operating pressure of the
entire device is relatively low (not a high-pressure hydraulic systems) pressure and a host
of smaller hydraulic parts, hydraulic system is more durable and stable.
6.Installation convenient transportation, because of the models advanced design, highly
efficient, and its relatively small size and weight, which is lifting, transportation, replacement
parts, maintenance requirements are lower.
Single Cylinder Hydraulic Cone Crusher Guarantee And After-sales Service:
1. Two years guarantee for main machine, excluding wearing parts
2. Experienced technicians guidance is available
3. 24 hours technical support by e-mail, by phone.
4. Use-friendly English user manual
5. Engineers could be dispatched to the quarry site, if requested by customer. Single Cylinder Hydraulic Cone Crusher Applications:
This kind of crusher can be extensively used in metallurgical industry, building industry,
road construction industry, chemical industry, diluted hydrochloric acid industry and are
suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore,

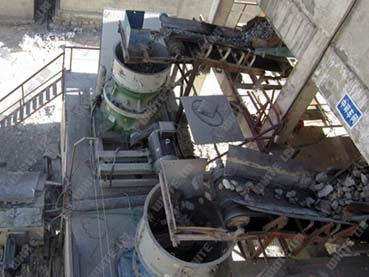

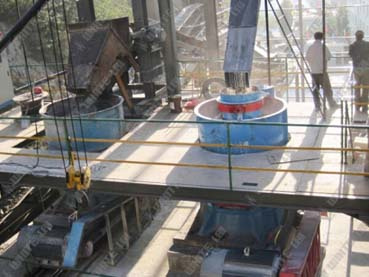

lime stone, quartz, granite and sandstone.Single Cylinder Hydraulic Cone Crusher Site:
| Prod Model: |
GPY200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Single Cylinder Hydraulic Cone Crusher |
| Model: |
Gpy200 |
| Crusher Cavity: |
F |
| Eccentric Ratio: |
25mm |
| Capacity: |
80-205t/H |
| Power: |
160kw |
| Discharge Size: |
10-30mm |
| Spare Parts: |
Available |
| Performance: |
Fine |
| Warranty: |
Two Years,Excluding Wearing Parts |
| Type: |
Cone Crusher |
| Application: |
Stone Industry |
| Drive: |
Hydraulic |
| Crushing Style: |
Extruding & Milling |
| Compressive Strength (',For Crushing): |
250-300MPA |
| Crushing Degree: |
Fine Grinding Machine |
| Finished Surface: |
Outer Surface Process |
| Color: |
Blue |
Shanghai WHITELAI ROAD AND BRIDGE MACHINERY Co., Ltd is a renowned crushing and screening machinery equipment manufacturer in China. We provide clients with a whole series of crushing and screening machinery equipment, including hydraulic cone crusher, jaw crusher, impact crusher, vertical shaft impact crusher, vibrating screen and all complete set of stone crushing and sand making production lines. We are able to offer products with high performance as well as super service backup and solutions to our clients. Our company successfully achieved ISO9001: 2008 Quality Management Certificate and EU CE certificate.
We are able to offer products with high performance as well as super service backup and solutions to our clients. Our company equipped with advanced Solid works 3D mechanical design. WHITE LAI has cultivated a professional technology and after-sales service team. We have established offices around China. Besides constantly increasing our market share in China, we have also exported our products to different countries and regions all over the world, including Russia, Vietnam, Laos, Thailand, Philippines, Malaysia, Indonesia, Dominica, Brazil, Venezuela, Colombia, Peru, Chile, Saudi Arabia, Jordan, Libya, Zambia and Congo. Our products are well recognized by worldwide customers, because of our excellent quality, practical function, and competitive price.
We stick to innovation, constantly improve our product quality and reliability and strive to become a world renowned brand in the industry of crushing and screening machinery. We understand that our success relies on our clients' confidence.
