PFC High Capacity Hydraulic Impact Crusher for Stone mining (PFC1410)
Hydraulic Impact Crusher Specifications:| 1.Name: | hydraulic impact crusher |
| 2. Model: | PFC-1410 |
| 3.Diameter of Rotor | 1330mm |
| 4.Width of Rotor | 914mm |
| 5.Size of feed opening | 1065x930mmxmm |
| 6.Power | 90-110kw |
| 7.Discharge Size | 76mm |
| 8.Capacity | 209t/h |
| 9.Weight | 13.9t |
Hydraulic Impact Crusher Brief Description:1.Name:hydraulic impact crusher2.Model:PFC-1410
3.Quality:national quality control standards
4.Certification:CE/ ISO9001:2008

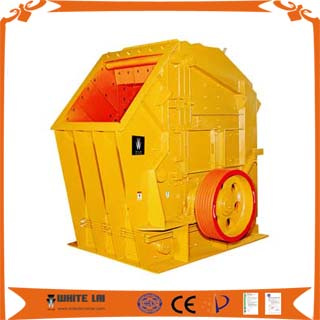

Hydraulic Impact Crusher Introduction:
This impact crusher has 45 degree feed chute with replaceable liners. The main frame
can be opened by hydraulic device. Thick blow bars with locking tongue set into a
replaceable backing bar seat. All curtain liners are interchangeable. Positive rotor lock
to ensure the safety of persons who change the rotor. With the strengthening and
toughening bear and replaceable backing bar seat, this crusher can be applied to the
waste recycling materials processing. Final products are in a good product shape,the
low proportion of conifer-like.
Hydraulic Impact Crusher Working Principle:
This impact crusher machine crushes materials with impact force. When the materials enterthe blow bar area, they are crushed due to the highspeed impact of the blow bar and are
thrown to the impact plates on the rotor for secondary crush. Then the materials will be
shot back to the blow bar again for the third crush. This process repeats until the materials
are crushed to the required size and discharged from the lower part of the machieThe size and shape of the finished powder can be changed by adjusting the gap between the impactrack and rotor support. The machine employs selfweigh security device in its back frame.
When other objects enter the impact cavity, they will be forced out of the mace by the
impact rack in the front and back of the machine.
Hydraulic Impact Crusher Advantages&Characteristics:1.Hydraulic curtain cleaning
2.Hydraulic fully
3.Hydraulic opening device
4.Hydraulic adjusting discharge
Hydraulic Impact Crusher Guarantee And After-sales Service:
1.Two years guarantee for main machine, excluding wearing parts
2.Experienced t1echnicians guidance is available
3.24 hours technical support by e-mail, by phone.
4.Use-friendly English user manual
5.Engineers could be dispatched to the quarry site, if requested by customer.
Hydraulic Impact Crusher Applications:
This PFC hydraulic Impact crusher are designed for crushing ores and rocks with particle
sizes less than 120~350mm and compression strength no more than 350MPa.It is suitable
for crushing different compression strength of rocks in mining,cement and concrete
industries,and is widely used to produce fine stones for constructions of highway,airport,

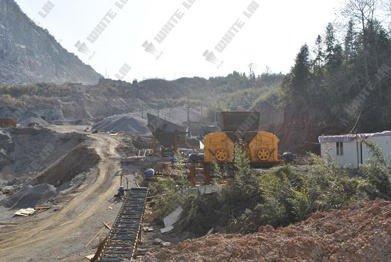

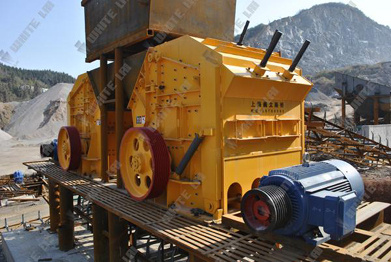

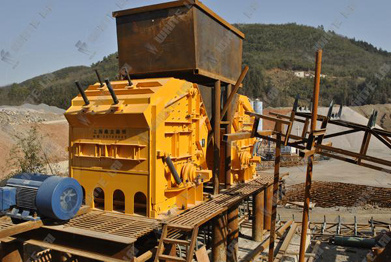

building,etc.Hydraulic Impact Crusher Site:
Shanghai WHITELAI ROAD AND BRIDGE MACHINERY Co., Ltd is a renowned crushing and screening machinery equipment manufacturer in China. We provide clients with a whole series of crushing and screening machinery equipment, including hydraulic cone crusher, jaw crusher, impact crusher, vertical shaft impact crusher, vibrating screen and all complete set of stone crushing and sand making production lines. We are able to offer products with high performance as well as super service backup and solutions to our clients. Our company successfully achieved ISO9001: 2008 Quality Management Certificate and EU CE certificate.
We are able to offer products with high performance as well as super service backup and solutions to our clients. Our company equipped with advanced Solid works 3D mechanical design. WHITE LAI has cultivated a professional technology and after-sales service team. We have established offices around China. Besides constantly increasing our market share in China, we have also exported our products to different countries and regions all over the world, including Russia, Vietnam, Laos, Thailand, Philippines, Malaysia, Indonesia, Dominica, Brazil, Venezuela, Colombia, Peru, Chile, Saudi Arabia, Jordan, Libya, Zambia and Congo. Our products are well recognized by worldwide customers, because of our excellent quality, practical function, and competitive price.
We stick to innovation, constantly improve our product quality and reliability and strive to become a world renowned brand in the industry of crushing and screening machinery. We understand that our success relies on our clients' confidence.
