Product Specifications
| Prod Model: |
HDSP0108M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Housing: |
Steel |
| Size: |
276*156*24mm |
| Gross Weight: |
1.355kg |
Product Description

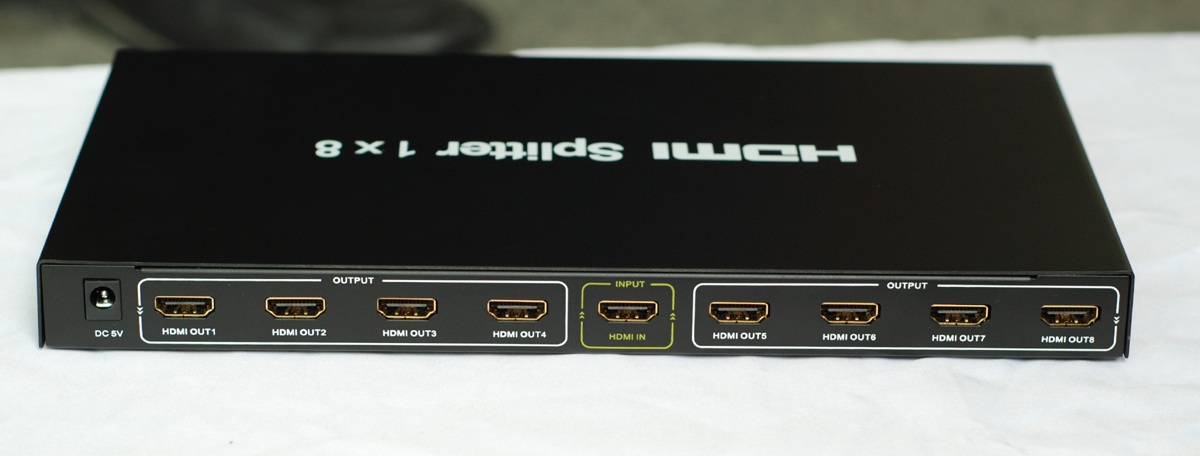

HDMI Splitter
The 1x8 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES
One HDMI 1.3b input signal split to eight HDMI 1.3b sink devices
HDCP 1.2 protocol compliant
Support CEC
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
Output up to 25metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/2A power supply
Operating and Connecting
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the Mini HDMI 1x8 Splitter.
SPECIFICATIONS: HDSP0108M
HDMI version...HDMI 1.3b
HDCP version...HDCP1.2
HDMI resolution...24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support video color format...24bit/deep color 30bit, 36bit
Support audio format...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...225MHz
Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p
Input/Output DDC signal...5Volts p-p (TTL)
Input cable distance...15m HDMI AWG26
Output cable distance...25m AWG26 HDMI 1.3 standard cable
Max working current...1.4A
Power adapter format Input...AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A
Operating Temperature range...(-15 to +55)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...276*156*24(mm)
Weight...1355g
|
SPECIFICATIONS |
HDSP0108M |
|
HDMI version |
HDMI 1.3b |
|
HDCP version |
HDCP1.2 |
|
HDMI resolution |
24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I |
|
Support video color format |
24bit/deep color 30bit, 36bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
Input cable distance |
15m HDMI AWG26 |
|
Output cable distance |
25m AWG26 HDMI 1.3 standard cable |
|
Max working current |
1.4A |
|
Power adapter format Input |
AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A |
|
Operating Temperature range |
(-15 to +55) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
276*156*24(mm) |
|
Weight |
1355g |
Ask Technology Co., Ltd. focuses on high quality image process technology and application design, owns perfect production lines, and innovates on technical route continually. Many new HDMI products and solutions are invented by our company.
With 22 engineers and 10-year partnerships with leading IC suppliers - Maxim, Silicon, Xilinx, Altera, AD, TI, Explore, displaylink, ROHM, Sigma, Micron, ST and others - we can offer you top-rate R&D services. Meanwhile, we also add over 50 new items to our range of HDMI Splitters, Switchers, Matrix, converters, HDMI wireless transmitter, extender, HDD Midea Player and HDMI cables.
Product quality is ensured with a team of specialists in different fields. We have four IQC inspectors, six PCBA experts, two pre-shipment professionals and three FQC staff. Accordingly, we've kept our defect rate to just 0.1 percent.
We welcome OBM, ODM and OEM orders. And with a monthly capacity of 200, 000 units. Large stock PCBA and material, we can have super big order shipped in only 20 days. Also, to better serve you, we have offices add agents in 26 different countries worldwide.
