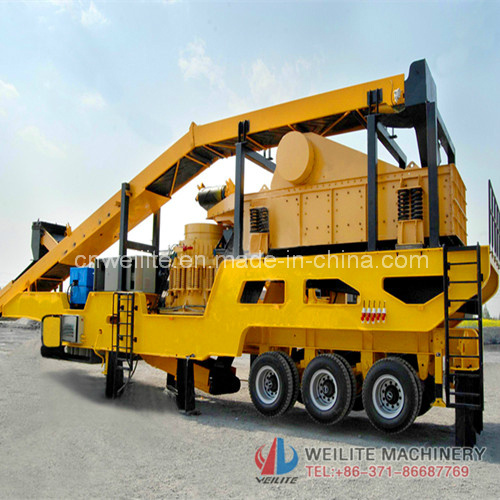

Mobile Jaw Crushing Plant
Jaw crushing plant introduction:
The mobile jaw crushing plant is not limited by the crushing place, and reduces high material transportation cost. It can crush materials on site or working nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.
Mobile crushing plant concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for coarse and fine crushing. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.
Features of the mobile jaw crushing plant:
1. Move easily. It can go to the crushing place directly.
2. Compact structure and simple operation.
3. Save the cost...
4. Wide applicability.
5. Stable performance and convenient maintenance.
6. Flexible configuration.
Working Theory of Mobile Jaw Crushing Plant:
When the jaw crushing plant works, vibrating feeder takes the materials into jaw crusher for the first crushing process. Then materials will be sent into the cone crusher for the secondary crushing process. Vibrating screen is mainly to eliminate the undesired materials involved in the end products in the mobile crushing plant.
PP jaw portable crusher |
PP600 |
PP750 |
PP900 |
PP1060 |
PP1200 |
PP1300 |
Shipping size |
Length(mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
9460 |
|
Width(mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
2743 |
|
Height(mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
3988 |
|
Weight((kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
25220 |
|
Axle load(kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
14730 |
|
Tractor weight(kg) |
5119 |
7500 |
10890 |
19450 |
34000 |
10490 |
Jaw crusher |
Type |
PE400X600 |
PE500X750 |
PE600X900 |
PE750X1060 |
PE900X1200 |
PE300X1300 |
|
Material inlet(mm) |
400X600 |
500X750 |
600X900 |
750X1060 |
900X1200 |
300X1300 |
|
Adjusting range of discharge hole(mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
20-90 |
|
Capacity(m 3 /h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-240 |
10-65 |
Vibrating feeder |
Type |
GZD8030 |
GZD8030 |
GZD9638 |
GZD1149 |
GZD1325 |
GZD8030 |
|
Capacity of material cabin(m 3 ) |
3 |
4 |
7 |
10 |
10 |
3 |
|
Width of material cabin(mm) |
2200 |
2500 |
3000 |
3000 |
3000 |
2200 |
Belt conveyor type |
B500X6 |
B650X7 |
B800X8 |
B1000X11 |
B1200X13 |
B800X7 |
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials, cold pressure ball machines, Vibrating Feeders and Briquette & Ore Powder Ball Press Machines, etc.
The technological performance of our grinding mills and crushers are on the lead level. We have achieved the internationally advanced level. In recent years, we have optimized design and adopted advanced technology. We have been equipped with the following equipment:
Grinder mills: Raymond mills, high-pressure suspension grinders, high-pressure micro powder mills, etc.
Crushers: Jaw crushers, impact crushers, Vertical composite crushers and Counter-attack highly effective fine crushers (sand making machines)
Meanwhile, we also offer vibrating feeders, vibrating screens, transporters, flotation machines, magnetic separators and sand washing machines.
Our company is located at Zhujiang Road, Xushui Industrial Park, Zhengzhou City, covering an area of 50, 000 square meters. Our company has more than 100 heavy-duty processing equipment and mining equipment. Our fixed assets are more than 5000 million yuan. Our company consists of two branches and two institutes.
Since the inception, with advanced modern enterprise management systems, precise production and independent innovation, we bring together a group of scientific and technological elites. Our company currently employs more than 500 people, including more than 20 engineers, 150 middle level technicians. We have introduced the advanced technology.
Product quality is an enterprise's life. We have passed ISO9001: 2000 international quality system management certification. Our company has an experienced and skilled after-sales service team.
You are warmly welcome to contact us for more information.
