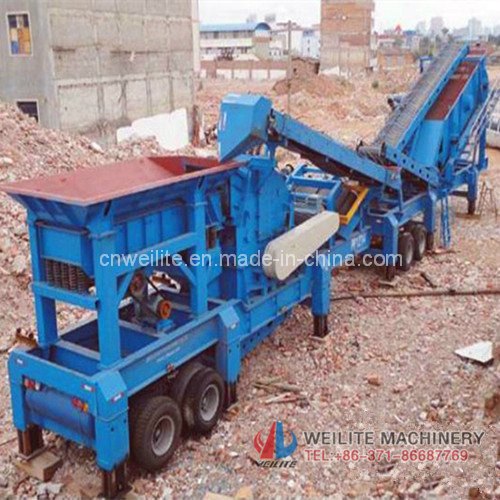

High Efficiency Mobile Jaw Crusher In Zhengzhou Weilite Machinery(PP)
General introduction of the mobile jaw crusher:
Mobile jaw crusher plant concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for contractors, quarry operators, recycling and mining applications. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.
Composition and Working Principle:
The mobile crushing and screening plants is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.
Features of the mobile jaw crusher:
1. Integrative equipment group make installation easy.
2. Good mobility.
3. Lower Transportation cost.
4. Direct and efficient operation is convenient for client.
5. Easy to adapt and flexible to collocate.
6. Reliable performance and convenient maintenance.
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
If you are looking for manufacturer who can supplies high quality and competitive price at the same time, please don't hesitate to contact us.
PP jaw portable crusher |
PP600 |
PP750 |
PP900 |
PP1060 |
PP1200 |
PP1300 |
Shipping size |
Length(mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
9460 |
|
Width(mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
2743 |
|
Height(mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
3988 |
|
Weight((kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
25220 |
|
Axle load(kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
14730 |
|
Tractor weight(kg) |
5119 |
7500 |
10890 |
19450 |
34000 |
10490 |
Jaw crusher |
Type |
PE400X600 |
PE500X750 |
PE600X900 |
PE750X1060 |
PE900X1200 |
PE300X1300 |
|
Material inlet(mm) |
400X600 |
500X750 |
600X900 |
750X1060 |
900X1200 |
300X1300 |
|
Adjusting range of discharge hole(mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
20-90 |
|
Capacity(m 3 /h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-240 |
10-65 |
Vibrating feeder |
Type |
GZD8030 |
GZD8030 |
GZD9638 |
GZD1149 |
GZD1325 |
GZD8030 |
|
Capacity of material cabin(m 3 ) |
3 |
4 |
7 |
10 |
10 |
3 |
|
Width of material cabin(mm) |
2200 |
2500 |
3000 |
3000 |
3000 |
2200 |
Belt conveyor type |
B500X6 |
B650X7 |
B800X8 |
B1000X11 |
B1200X13 |
B800X7 |
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials, cold pressure ball machines, Vibrating Feeders and Briquette & Ore Powder Ball Press Machines, etc.
The technological performance of our grinding mills and crushers are on the lead level. We have achieved the internationally advanced level. In recent years, we have optimized design and adopted advanced technology. We have been equipped with the following equipment:
Grinder mills: Raymond mills, high-pressure suspension grinders, high-pressure micro powder mills, etc.
Crushers: Jaw crushers, impact crushers, Vertical composite crushers and Counter-attack highly effective fine crushers (sand making machines)
Meanwhile, we also offer vibrating feeders, vibrating screens, transporters, flotation machines, magnetic separators and sand washing machines.
Our company is located at Zhujiang Road, Xushui Industrial Park, Zhengzhou City, covering an area of 50, 000 square meters. Our company has more than 100 heavy-duty processing equipment and mining equipment. Our fixed assets are more than 5000 million yuan. Our company consists of two branches and two institutes.
Since the inception, with advanced modern enterprise management systems, precise production and independent innovation, we bring together a group of scientific and technological elites. Our company currently employs more than 500 people, including more than 20 engineers, 150 middle level technicians. We have introduced the advanced technology.
Product quality is an enterprise's life. We have passed ISO9001: 2000 international quality system management certification. Our company has an experienced and skilled after-sales service team.
You are warmly welcome to contact us for more information.
