Product Specifications
| Prod Model: |
SH-2PG Double Roll Crusher |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application Area: |
The Soft Stone in Common |
| Feature: |
Safe and Reliable |
| Capacity: |
5-125t/H |
| Advantage: |
Stable Performance,Low Cost |
| Usage: |
Cement, Construction and Mining |
| Finished Surface: |
Outer Surface Process |
| Drive: |
Electric |
| Compressive Strength (',For Crushing): |
>300MPA |
| Application: |
Stone Industry |
| Crushing Style: |
Grinding & Impact |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Roller Crusher |
| Color: |
as Customer's Demands |
Product Description
Roll crusher, roller crusher, double/four roll crusher, double/four roller crusher, hydraulic roll crusher, hydraulic roller crusher, hydraulic crushing machine, hydraulic roll crushing machine

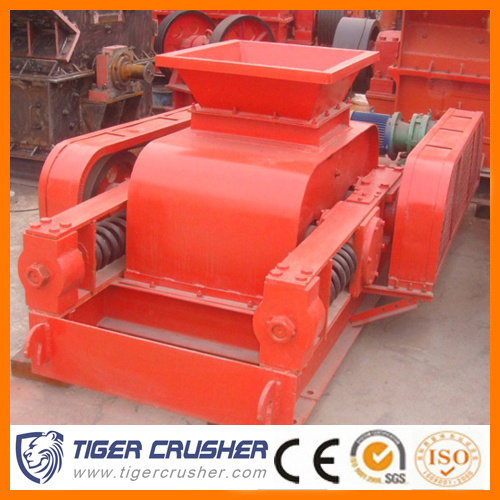

SH-2PG Double Roll Crusher
Double roll crusher (also known as roll crusher), is available for industries, such as ore dressing, chemical, cement, refractory, abrasives and building materials etc. It can finely crush the ore, rock and refractory material with high and medium hardness. Roll crusher makes more excellent effect especially in refractory material and mining. In recent years, it is widely applied to industries like steel grit.
Features
1. Crushing material fineness can be adjusted.
2. Safety and reliability.
3. Stable performance, low running cost, simple and convenient maintenance.
Operating Principle
This series of double roll crusher is mainly composed of the roller, the roller support bearings, pressure and adjusting device and driving unit and other parts. The adjustment of the discharging granularity: with a wedge or gasket between the two roller adjusting device, adjusting bolt, wedge at the top of the device when the adjusting bolt will wedge pulled up, wedge rolling activity to the top from the fixed wheel, namely two roller clearance greatens, discharging granularity, when the wedge downward, activities under the action of the roller in a compression spring two rounds of smaller clearance, discharge size smaller. Gasket device is through the increase or decrease in the number of gasket to regulate the particle size or thickness, when add gasket two roll gap get bigger, when reduce the gasket two roll gap become smaller, the particle size. Driving mechanism is made up of two motors, through v-belt transmission to the Geneva wheel to drive the roller, according to the relative rotation direction. When crushing materials, materials from the feed port are crushed by rolling compaction. And the crush materials discharge from chassis.
Technical Parameters
|
Model |
2PG400×250 |
2PG610×400 |
2PGC450×500 |
2PGC600×750 |
|
Diameter(mm) |
400 |
610 |
450 |
600 |
|
Length(mm) |
250 |
400 |
500 |
750 |
|
Feeding granularity(mm) |
≤25 |
≤85 |
≤100 |
≤300 |
|
Discharging granularity(mm) |
2_8 |
10_30 |
25_60 |
50_125 |
|
capacity(t/h) |
5_10 |
13_40 |
20_55 |
60_125 |
|
Speed(r/min) |
180 |
75 |
64 |
50 |
|
Weight(t) |
1.1 |
3.5 |
3.8 |
8.34 |
|
Size(L×W×H)(mm) |
1215×834×830 |
2235×1722×810 |
2260×2200×766 |
2780×3065×1310 |
Motor |
Model |
Y160L_6 |
Y225M_6 |
Y160L--8 |
Y225M_8 |
|
Power(KW) |
11 |
15 |
7.5 |
11 |
22 |
Shanghai Tiger Crusher Mining Machinery Co., Ltd.
As one of China' S largest mining machinery crusher manufacturer and exporter, Shanghai Tiger Crusher Mining Machinery Co., Ltd provides quality equipment with many models and full specifications for trade exporters around the world.
Shanghai Tiger Crusher Mining Machinery Co., Ltd. Supply:
1. Crushing Machine (Mobile&Stationary Crusher)
2. Sand Making Machine
3. Industrial Grinding Mill
4. Ball Mill
5. Screening&Feeding Equipment
6. Stone Crushing&Sand Making Producing Line
Product Quality
All products of Shanghai Tiger Crusher have approved CE & ISO9001.
Shanghai Tiger Crusher Staff always adhere to the guidelines, "Relying on the progress of science and technology; Taking the path of specialization; Quality first & Lowest cost".
After-Sale Service
Shanghai Tiger Crusher Mining Machinery Co., Ltd. Has an experienced, skilled sales and service team and perfect network of sales service.
Before purchase, engineers and technicians will be sent to make plan for the venue and design the best processes and programs; When purchased, professional after-sales service personnel will be sent to the scene guiding clients how to install and manage the equipment.
With any quality problem in use, Tiger-Crusher commits that:
1. Any quality problems of sold products shall be borne by the after-sales service.
2. When received information about the quality of the product (after calls, letters or verbal notification) from users, relevant technical personnel will be sent to the scene to solve the problem within 24 hours.
3. After-sales service personnel should deal with any technical problems carefully and thorough treatments so as to ensure the normal operating use of machines.
4. Solving the technical problem of sold equipment product, after-sales service personnel shall have the obligation to provide customers with technical advice, technical training and other product related issues.
