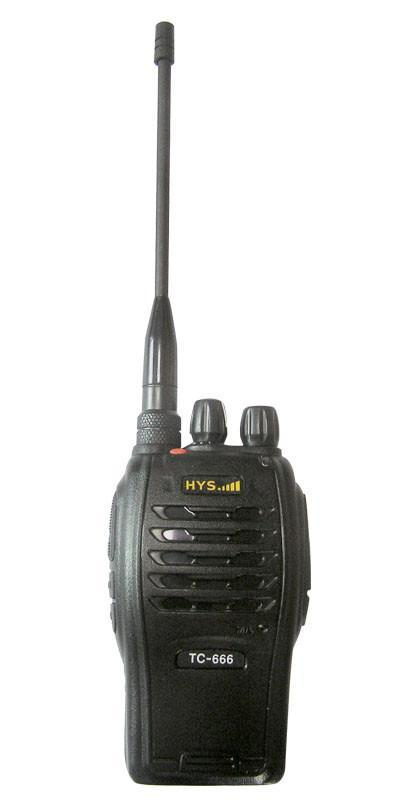

High Output Power 7 Watt Portable 2 Way Radio (TC-666)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1 /Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TC-666 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
Vhf/UHF |
| Tot: |
Yes |
| Vox: |
Yes |
Product Description
Main Function
1. Full VHF/UHF
2. Whisper
3. Voice guide
4. Voice encryption
5. DTMF
6. ANI code
7. H/L power
8. PTT ID 9. Emergency alarm
10. Monitor
11. Battery save
12. VOX
13. TOT
14. Busy channel lockout
15. Wired cloning
16. PC programming
|
TC-666 |
|
General Specification |
|
Frequency Range |
VHF: 136-174MHZ |
Frequency combination |
Phase lock loop frequency synthesize |
|
UHF: 400-470MHZ |
|
MemoryChannels |
16 Channels |
Operating Voltage |
DC7.4V |
|
Channel Spacing |
12.5/25KHz |
Battery Capacity |
1500MAH(Li-ion battery) |
|
Frequency Stability |
± 2.5PPM |
CTCSS/DSC |
CTCSS: 50 DCS: 105 |
|
Antenna Impedance |
50Ω |
Operating Temperature |
-10° C to +60° C |
|
Weight(approx. ) |
198g(Except battery and antenna ) |
Dimension(approx. ) |
115× 59× 34mm (Except Antenna) |
|
Transmitter(Testing under TIA/EIA-603 standard) |
|
Output Power |
≤ 7 W (H) /2W (L) |
Modulation Mode |
16K¢ F3E |
|
MAX. Frequency Deviation |
≤ ± 5.0KHz |
Frequency Stability |
± 5ppm |
|
Spurious Radiation |
≤ 60dB |
Residual Modulation |
≤ -35dB |
|
Modulation Distortion |
≤ 5%(300-3000Hz) |
FM Noise |
≤ -40dB |
|
Audio Distortion |
≤ 5% |
CTCSS Frequency Deviation |
0.75KHz± 50Hz |
|
Receiver(Testing under TIA/EIA-603 standard) |
|
Sensitivity |
≤ 0.20uV |
Operating Bandwidth |
≥ ± 7KHz |
|
Squelch Sensitivity |
≤ 0.15uV |
Frequency Stability |
± 5ppm |
|
Adjacent channel selectivity |
≥ 60dB |
Spurious Rejection |
≥ 60dB |
|
Intermodulation Rejection |
≥ 60dB |
FM Noise |
≤ -45dB |
|
Audio Power |
≥ 600mW |
Audio Distortion |
< 5% |
|
Meet U. S. A Military Standards (MIL-SID-810C/D/E) |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
