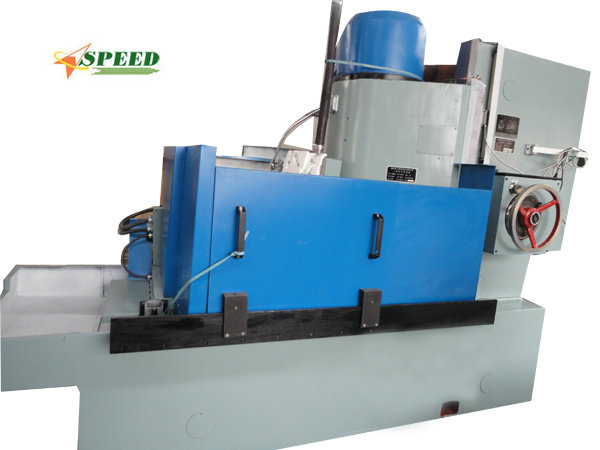

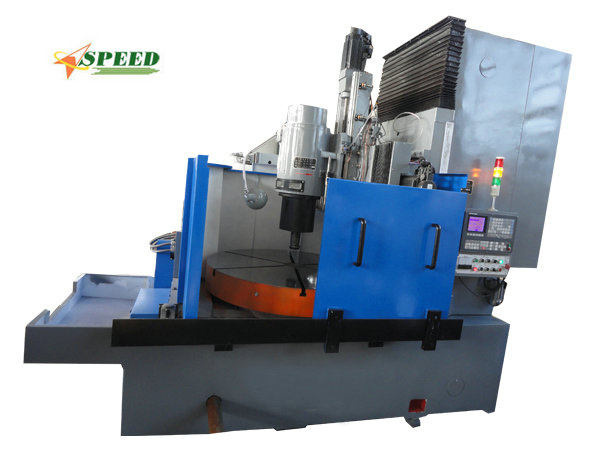

High Performance Vertical Spindle Surface Grinder with Rotary Table
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
M74160/M74180 Vertical Spindle Surface Grinder With Rotary Table
1.Introduction:The machine tool is of high efficiency and stable accuracy by using emery wheel tile end face to grind the part planes.
The electro-magnetic force of work bench is smooth and adjustable. The grinding head spindle is equipped with high precision bearings, with big power and excellent rgidity. The down feed of grinding head can be operated both manually and automatically with high reliability and convenient operation.
The cooling device keeps the emery wheel in a sharp state all the time, which ensures the accuracy of the machined parts.
The machine tool is fit for the industry application such as saw blade, automobile, tractor and machine tool as well.
2.Parameter:| Technical parameters: |
|
|
|
| ITEM |
| M74160 | M74180 |
| BENCH DIA | mm | Ø1600 | Ø1800 |
GRINDING SIZE
(DIA×H.MAX) | mm | Ø1600 × 400 | Ø1800 × 400 |
| BENCH ROTATIONAL SPEED | rpm | 2-15 | 2-15 |
| GRINDING HEAD MOBILE FEED SPEED | Mm/min | 0.10-2.0 | 0.10-2.0 |
EMERY TOOL SIZE
(L×W×THICKNESS) | mm | Wp
150 × 90 × 35 | Wp
150 × 90 × 35 |
| GRINDING HEAD MOTOR POWER | kw | 75 | 75 |
| GRINDING HEAD MAIN SHAFT ROTATIONAL SPEED | rpm | 590 | 590 |
| MACHINE TOOL TOTAL POWER | kw | 84.72 | 84.72 |
| MACHINE WEIGHT | kg | 25000 | 25000 |
MACHINE DIMENSIONS
(L×W×H) | mm | 4508 × 2384 × 3410 | 4508 × 2384 × 3410 |
| PARALLELISM OF MACHINING | mm | 0.02/1000 | 0.02/1000 |
| SURFACE TO BASIC SURFACE |
| ROUGHNESS OF MACHINING SURFACE | µm | Ra1.25 | Ra1.25 |
|
|
|
|
| ACCESSORIES |
|
|
|
| BLADE FOR CUTTING EMERY |
|
|
|
| EMERY TILE |
|
|
|
| SPANNER |
|
|
|
| MACHINE TOOL LEVELLING WEDGE |
|
|
|
| Prod Model: |
M74160/M74180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
with Rotary Table |
| Color: |
Customized |
| Warranty Period: |
1 Year |
| Industry: |
Metallurgy,Cement,Mining |
| Type: |
Surface Grinding Machine |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Normal Precision |
| Processing Object: |
Surface |
| Controlling Mode: |
Customized |
| Cylindrical Grinder Type: |
Surface |
