Product Specifications
| Prod Model: |
Y&D7300C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Y&D |
| Motor System: |
Servo Motor |
| Speed: |
500mm/S |
| Cycle: |
+/-0.01mm |
| Size: |
585*610*610mm |
| Weight: |
34kg |
| MOQ: |
1 Set |
| Capacity: |
OEM,ODM |
| Color: |
White |
| Applying To: |
Adhesive Dispensing |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Application: |
PCB |
| Processing Precision: |
+/_0.01mm |
Product Description
Automatic Dust Collection PCB Cutting Machine
Product Description
Loctite Adhesive Xyz electronic machine potting Dispenser Robot
Item | Y&D7300N |
| X/Y/Z working area (mm) | 300/300/100 |
| Load worktable | 10.0kg/5.0kg |
| Speed PTP X&Y/Z (mm/sec) | 0.1~800/500 |
| Repeatability | +/- 0.01mm / axis |
| Resolution | 0.01mm/axis |
| Data memory | 100 programs, 4000 points/program |
| Data storage | CF card/pc Storage & USB |

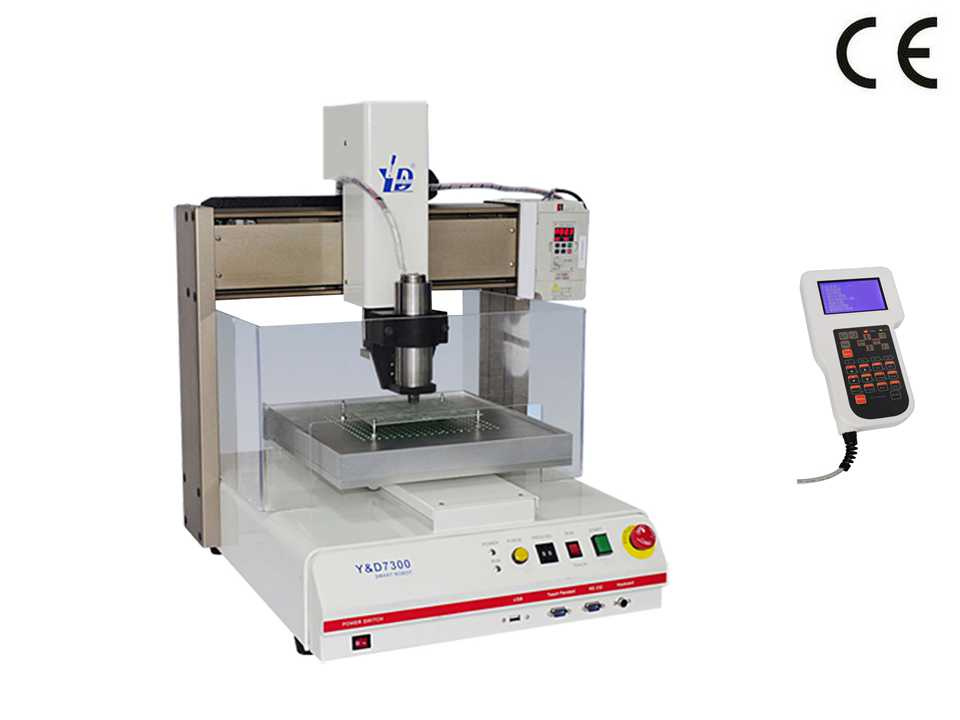

Y&D7300 cutting machine is three axis designed with micro stepping motor, it is especially suitable for PCB cutting. This kind of cutting machine is operating by teach pendant which is quite easy to learn and use. User can learn to make program in a few minutes. Its moving speed when working can reach at 100mm/s, and its positioning speed can reach at 500mm/s. Designed with a cleaner on the Y Axis, there will be no dust last when finish cutting. High-tech designed with excellent quality hardware to make sure its high precision and performance. It can continual to cutting when you make it up or take it apart. With high quality rotating system which makes it quick and easy to speed up or slow down. In using this kind of cutting machine can not only improve working efficiency but also can make sure its precision. So this kind of cutting machine is popular selling all over the world.
Specification
Item: Y&D7300 cutting machine
X/Y/Z working area (mm): 300/300/100
Air moving speed: 500mm/s
Cutting speedMax : 100mm/s
Rotate speed: 50000r/min
Resolution: 0.01mm/axis
Repeatability: +/- 0.01mm / axis
Cooling mode: Cold air
Circuit board thickness: 0.4-4mm
Handing mode: Manual work
Program Display: Teach pendant LCD
ConfigurationX/Y/Z : 3 axis
Program method: Teach pendant
I/O signals: 8 inputs / 8 outputs
External interface: RS232
Power supply : AC 90~260V 500W
Operating temperature: 0~40° C
Motor systemMicro : stepping motor
Dimensions : 585*610*610mm
Net Weight : 34kg
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
