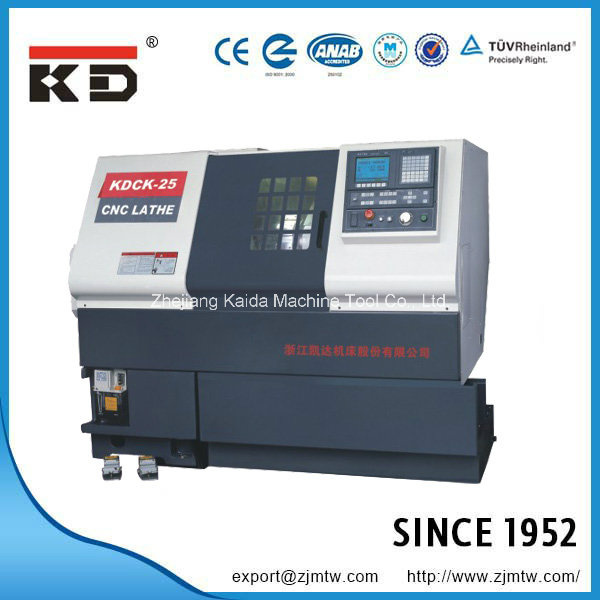

High Precision Slant Bed Metal Turning CNC Lathe Kdck-25A

Name: High Precision Slant Bed Metal Turning CNC Lathe Kdck-25A
Brand: china-manufacturer-directory.com
SKU: 769107535
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 35000-50000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Stardard accessories:
Total sealed fencing system
Lubrication system
ø200mm solid hydraulic chuck
Optional manual

Opeional accessories:
Hollowed hydraulic chuck
Automatic conveying system
Hydraulic tailstock

ITEMS	KDCK-25	KDCK-25A
Max. swing over bed	Ø500 mm
Max. cutting dia. for disc parts	Ø300 mm
Max. cutting dia. for axle parts	Ø250 mm
Maximum turned length for axle parts	400 mm
Max. cross travel (X)	180 mm
Max. longitudinal ravel (Z)	500 mm
Spindle bore	Ø62 mm	Ø63 mm
Spindle nose	Ø170 mm	A2-6
Spindle speed	3000 rpm	5000 rpm
Chuck dia.	8″
Rapid feed for z axis x	10m/min
Rapid feed for z axis z	20m/min
Number of tool post	8
Outside dia. Cutting tool shank	25×25 mm
Max. inner dia. Cutting tool shank	Ø40 mm
Guide ways X & Z	Precision linear ball rail
Tailstock sleeve dia.	Ø63mm
Tailstock sleeve travel	115mm
Tailstock center type	M.T.No.4
Type of spindle motor	Variable-frequency	Servo
Spindle motor power	7.5 KW	7.5/11 KW
Bed structure	30° Slant bed integrated with stand
Max. Input	0.001 mm
Repeatability	0.005/0.006 mm
Capacity for coolant	150L
Surface roughness	≤Ra0.8μm(Nonferous) ≤Ra1.6μm(Steel part)
Overall dimensions(L×W×H)	1950×1650×1680 mm
Net weight	3400kg

Prod Model:	KDCK-25A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed:	500mm
Max. Turned Length For Axle Parts:	400mm
Spindle Bore:	63mm
Spindle Nose:	A2-6
Main Motor:	7.5kw
Max. Cross Travel:	180mm
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Processing Precision:	±0.03mm

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
