Product Specifications
| Prod Model: |
CI2000--CY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measure Range: |
97.00%-99.99% |
| Accuracy: |
0.1 in Fs Range |
| Preheating Time: |
99s |
| Response Time: |
90% of Fs Reading in 10 Seconds |
| Contact Capacity: |
125V AC 0.3A, 110V DC 0.3A, 30V DC 1A |
| Working Temp: |
-10 Centigrade to +60 Centigrade |
| Sample Gas Pressure: |
0.05MPa to 0.5MPa |
| Sample Gas Flow: |
300ml/MIM |
| Sensor Life: |
60 Months at 25 Centigrade and 1 ATM |
| Warranty: |
12 Months Analyzer; 12 Months Sensor |
| Type: |
Electrochemical Gas Analyzer |
Product Description

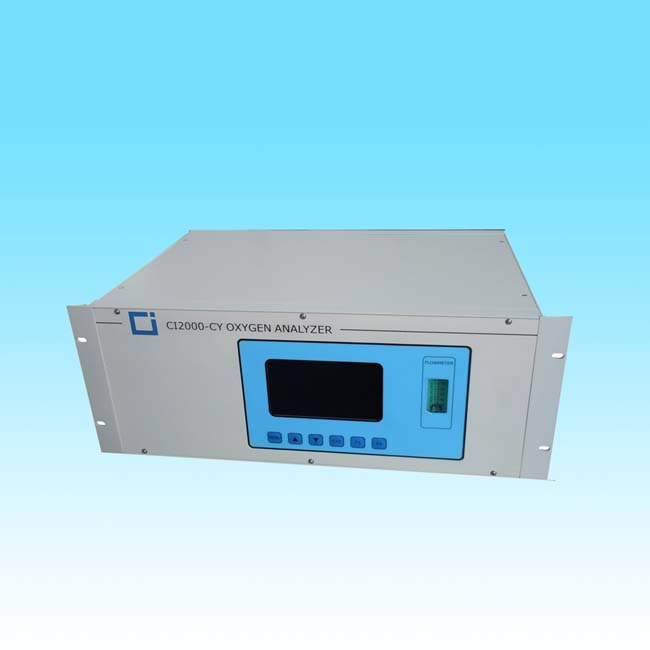

High purity Oxygen Analyzing Machine
CY2000-CY oxygen analyzing machine is the online intelligent measurement instrument, which breaks through traditional magneto mechanical measurement mode and achieves to measure the oxygen concentration without benchmark gas by using solid electrolyte frequency conversion ion current oxygen sensor and oxygen pump.
Features
* New pattern, long-life, conversion ion current tester with high sensitivity and fast response
* High precision, automatic temperature compensation, eliminating the impact of environmental temperature
* Concise menu, simple operation
* Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life.
* Automatic data storage in a certain interval time, and browsing data at any time
* Big screen dot-matrix LCD, showing oxygen concentration, date and time synchronously
* Setting upper and lower alarm values freely during the measure ranges
* It can achieve two-way communication by connected to a computer via the standard RS232 or RS485 interface.
Technical Specifications
Measure Range: 97.00%-99.99%
Accuracy: ±0.1 in FS range
Preheating Time: 99s
Stability: Zero drift ≤±0.2% of FS/7d
Span drift ≤±0.2% of FS/7d
Response Time: 90% of FS reading ≤ 10 seconds
Contact Capacity: 125V AC 0.3A, 110V DC 0.3A, 30V DC 1A
Signal Output: 4-20mA (allowable load resistance 250 Ω)or 0-5V DC isolated
Working Temp.: -10ºC~+60ºC
Sample Gas Pressure: 0.05MPa≤Inlet pressure≤0.5MPa
Sample Gas Flow: 300ml/mim
Sensor Life: 60 months at 25ºC and 1 atm.
Warranty: 12 months analyzer; 12 months sensor
Appearance dimension: 482.5mm×177mm×300mm (W×H×D)
Opening size: 178×469mm
Weight: 4kg
Applications
It can be used to measure the oxygen concentration in oxygen separation from air & other O2 producing industry, etc.
Order Knowledge
Measure range
Tested gas pressure
Gas composition and impurity
