High Quality PCB Boards and Circuit Boards
| Price: |
US $ 0.1piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1piece |
| Pay Type: |
T/T,Paypal,Western Union |
Prototypes to large batch production, Products follow RoHS, REACH, CE, CQC and UL requirementsHigh technology 1~16 layers PCBs from 0.2~3.2mm thickness with 0.3~4.0oz copper thickness FR4, FR4(TG130,150,170), FR1,CEM-1, CEM3, Aluminum based, HF (Rogers,Teflon)HDI and Sequential LaminationFlexible, Flex-rigid and Rigid PCBsTurnover USD$60 Million (2012-2013)Established in 2002Privately owned company32000 Square meter FacilityNearly 1000 Employees62500 Square meter Monthly output What will you get from FZ-PCBReliable and stable quality with more than 12 years pcb manufacturing experience.Quick response & 24 hours available service.Professional sales service & advice.Fulfillment of our promises, NO lies.Protecting your Intellectual property. All our staff of trained professionals are working under a strict confidential contract.provide the professional design advice, assisted in reviewing the gerber.Market Segment

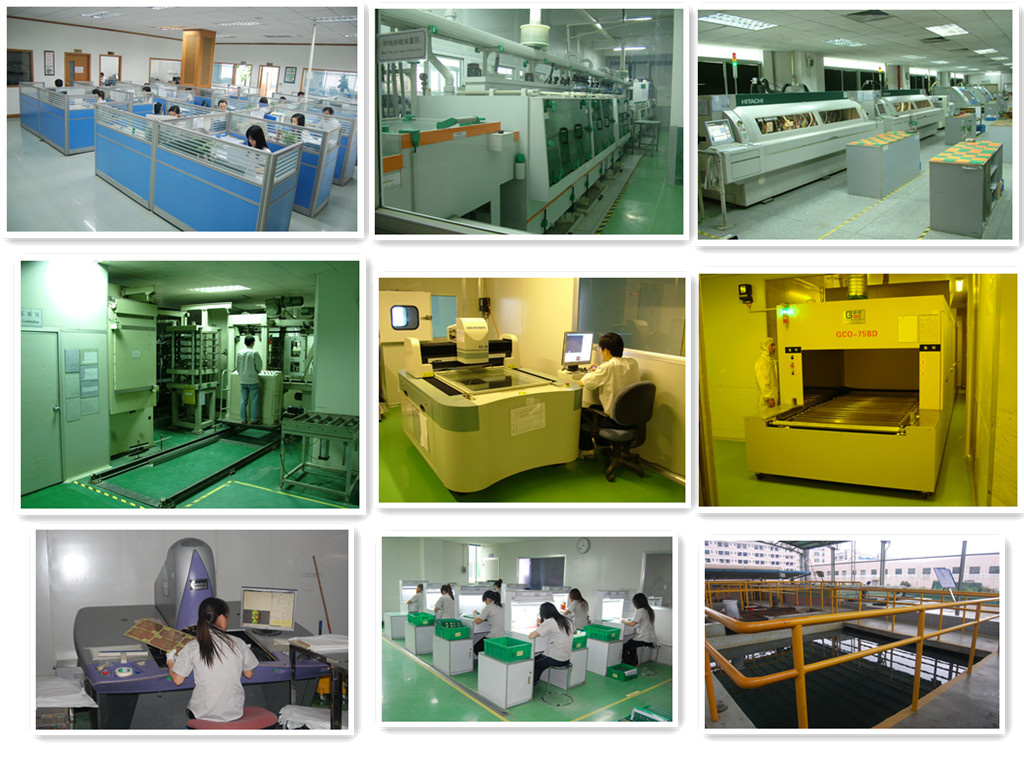

Factory galance
Delivery TimescalesSampleSingle layer 5daysDouble Side 5-7days4 ~ 6 layers 8-10daysAbove 8 layers 10-14daysAluminum PCB 7-10daysFlexible PCB 10-14days* Urgent Routing sample could be pushed 2-3 days earlier with premium. Mass ProductionSingle layer standard 10 daysDouble Side standard 13days4~6 layers standard 15daysabove 8 layers standard 18daysAluminum PCB standard 15daysFlexible PCB standard 18daysl Material availability dependant.Package & Shipping Method:1. Vacuum package with silica gel, Carton box with packing belt.2. By DHL, UPS, FedEx, TNT3. By EMS (Usually for Russia Clients)4. By sea for mass quantity according to customer's requirement Payment method1. T/T2. Paypal3. Western Union
|
Files |
Gerber, Protel, Powerpcb, Autocad, Orcad, etc |
|
Material |
FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide. |
|
Layer No. |
1 - 16 Layers |
|
Board thickness |
0.0075"(0.2mm)-0.125"(3.2mm) |
|
Board Thickness Tolerance |
±10% |
|
Copper thickness |
0.3OZ - 4OZ |
|
Impedance Control |
±10% |
|
Warp and Twist |
≤0.075% |
|
Peel Strength |
≥61B/in(≥107g/mm) |
|
Min Trace Width (a) |
3mil |
|
Min Space Width (b) |
3mil |
|
Min Annular Ring |
0.004"(0.1mm) |
|
SMD Pitch (a) |
0.012"(0.3mm) |
|
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) |
0.027"(0.675mm) |
|
Register tolerance |
0.05mm |
|
Min Solder Mask Dam (a) |
0.005"(0.125mm) |
|
Solder mask Clearance (b) |
0.005"(0.125mm) |
|
Min SMT Pad spacing (c) |
0.004"(0.1mm) |
|
Solder Mask Thickness |
0.0007"(0.018mm) |
|
Hole size |
0.008"(0.20mm)-- 0.257"(6.5mm) |
|
Hole Size Tol (+/-) |
±0.003"(±0.0762mm) |
|
Max PTH Aspect Ratio |
10:1 |
|
Hole Registration |
0.003"(0.075mm) |
|
HASL |
2.5um |
|
Lead free HASL |
2.5um |
|
Immersion Gold |
Nickel 3-7um Au:1-3u'' |
|
OSP |
0.2-0.5um |
|
Panel Outline Tol (+/-) |
±0.004''(±0.1mm) |
|
Beveling |
30°45° |
|
V-cut |
15° 30° 45° 60° |
|
Surface finish |
HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
|
Certificate |
ROHS ISO9001 TS16949 SGS UL |
|
Special requirements |
Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger |
| Prod Model: |
pcb, pcba, pcbs, circuit boards |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finish: |
Immersion Gold |
| Board Thickness: |
1.2mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy Resin + Polyimide Resin |
| Flame Retardant Properties: |
V0 |
FZ-PCB is one of Asia' S leading full-service PCB to PCBA solution providers. Established in the year 2002, mainly provide the high-level quality PCB board and PCB assembly service to our customer which are the leading companies in the telecommunication, LED, medical treatment, aviation, instrumentation, micro-electronics and automated-control area. Our achievements are recognized through our customers' Success, industry and customer recognition, and continuous quality improvement.
