Product Specifications
| Prod Model: |
TC-MAUV11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
Operate Frequency: 136-174MHz Standard Frequncy |
| Memory Channels: |
128 |
| Bandwidth: |
Wide:25kHz Narrow: 12.5kHz |
| Pll Channel Stepping: |
5/6.25/10/12.5/25 kHz |
| Dimensions: |
168*41.5*140mm |
| RF Output Power: |
VHF 40W/20W(144MHz) UHF 35W/20W(440MHz) |
| Spurious And Harmonics: |
70db |
| Modulation: |
Wide:16k0f3e Narrow: 11k0f3e |
| FM Modulation Noise: |
Wide:45db Narrow: 40db |
| Audio Distortion: |
Less Than 3% |
| Application: |
Industrial |
| Condition: |
New |
| Screen: |
With Screen |
| Standard: |
Standard |
Product Description

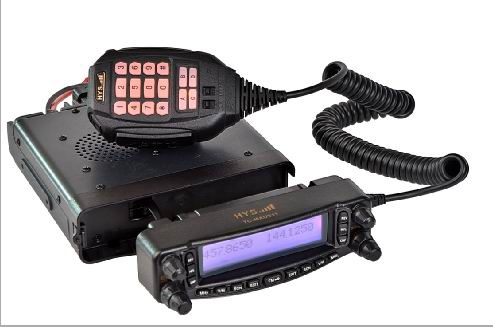

High Quality Vehicle Radio ,Two way radio Tc-Mauv11
Main featurers:
1.VHF/UHF dual reception
2.DTMF encode/decode(8 groups selectable)
3.7 kinds of backlight selectable
4.Scrambler
5.FM radio built-in
6. 4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz)
7.Large LCD display
8.50 Groups CTCSS&105 Groups DCS Encode/Decode
Highlights :
1.Front panel switches & controls2.Compandor
3.Cross band repeater capability
4.Input frequency directly through MIC
5.Air - band receiving
1200/9600 bps this dat only for B type
SPECIFICATIONS
General
Frequency range
Operate Frequency: 136-174MHz
Standard Frequncy: 144-148MHz)
Operate Frequency:400-470MHz
Standard Frequncy: 430-450MHz
Air band(RX): AM109-135.995MHz
Memory channels:128
Bandwidth:Wide:25KHz Narrow: 12.5KHz
PLL channel stepping:5/6.25/10/12.5/25 KHz
Operating voltage:13.8VDC±15%
Current drain
Standby: Less than:0.4A
Transmit: Less than: 8.0A
Operate temperature range:–20°C-+60°C
Weight:1200g
Dimensions:168*41.5*140mm
Transmiter
RF output power
VHF 40W/20W(144MHz)
UHF 35W/20W(440MHz)
Spurious and harmonics:70dB
Modulation:Wide:16K0F3E Narrow: 11K0F3E
FM Modulation Noise
Wide:45dB Narrow: 40dB
Audio distortion
Less than 3%
Frequency Stability
±2.5ppm
Receiver
Sensitivity(12dB SINAD)
Wide:0.18uV Narrow:0.22 uV
Selectivity
Wide:70 dB Narrow:60dB
Intermodulation
Wide:70 dB Narrow:60dB
Spurious response
75dB
Audio power output
2.0W/8Ω
Frequency Stability
±2.5ppm
Frequency range | Operate Frequency:
136-174MHz
Standard Frequncy:
144-148MHz)
Operate Frequency:
400-470MHz
Standard Frequncy:
430-450MHz
Air band(RX):
AM109-135.995MHz |
| Memory channels | 128 |
| Bandwidth | Wide: 25KHz
Narrow: 12.5KHz |
| PLL channel stepping | 5/6.25/10/12.5/25 KHz |
| Operating voltage | 13.8VDC± 15% |
| Current drain | Standby: Less than0.4A
Transmit: Less than 8.0A |
| Operate temperature range | – 20° C-+60° C |
| Weight | 1200g |
| Dimensions | 168*41.5*140mm |
| Transmiter |
|
| RF output power | VHF 40W/20W(144MHz)
UHF 35W/20W(440MHz) |
| Spurious and harmonics | 70dB |
| Modulation | Wide: 16K0F3E
Narrow: 11K0F3E |
| FM Modulation Noise | Wide: 45dB Narrow: 40dB |
| Audio distortion | Less than 3% |
| Frequency Stability | ± 2.5ppm |
| Receiver |
| Sensitivity(12dB SINAD) | Wide: 0.18uV Narrow: 0.22 uV |
| Selectivity | Wide: 70 dB Narrow: 60dB |
| Intermodulation | Wide: 70 dB Narrow: 60dB |
| Spurious response | 75dB |
| Audio power output | 2.0W/8Ω |
| Frequency Stability | ± 2.5ppm
|
