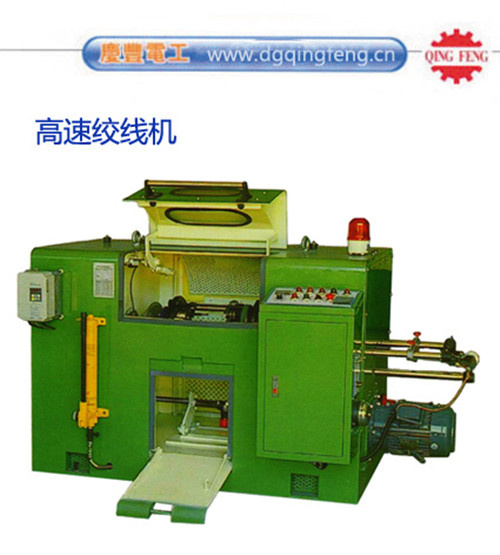

High speed full-automatic twisting machine
1) Long sevice life
2) Safety in operate
3) Easy maintenance
Application:
This equipment is widely used for various types of soft/hard wire( copper wire, enameled wire, tinned wire, copper clad steel, copper etc. )and electronic wire strands, such as: Power wire, telephone wire, audio wire, video wire, car wire, network wire etc.
Features:
Adopt the import original electrical appliances, motor and frequency converter.
Our Services:
1) Machine installation.
2) Machine commissioning.
3) Trainning customer's engineer.
4) Provide technical support all the time.
About Us:
Dongguan Qing Feng Electrical Machinery Co., Ltd. Was established in 2001. It is a high-tech enterprise which specializes in developing and manufacturing wire and cable machinery, such as extruding machines, twisting machines, stranding machines, planetary cabler/cage type twisting machine, taping machine, winding machines, tinning machines and irradiation machine.
We providing OEM/ODM service for customers, with professional Research&Development department, experienced designing work team. Products can be designed according to different structures and materials, every products with customized sketch and drawing, welcome to our company investigating and establishing cooperation business.
|
Machine Type |
QF-300 |
QF-500 |
QF-630 |
|
Suitable for |
More than 7 single core copper wires stranding |
More than 7 single core copper wires stranding |
More than 7 single core copper wires stranding |
|
Wire dia. |
φ0.06-0.28mm |
φ0.08-0.45mm |
φ0.38-1.2mm |
|
Twisting area |
0.035-0.45mm |
0.035-1.25mm |
0.8-5.5mm |
|
Twisting pitch |
4.36-17mm |
4.22-39.64mm |
7.99-96.43mm |
|
Twisting direction |
Either left or right twisting |
Either left or right twisting |
Either left or right twisting |
|
R.P.M |
MAX.3000RPM |
MAX.2000RPM |
MAX.1600RPM |
|
Twisting pitch control |
Manually change gear |
Manually change gear |
Manually change gear |
|
Take up bobbin |
φ300mm |
φ500mm |
φ630mm |
|
Lift tpye |
Manually jacking device |
Manually jacking device |
Manually jacking device |
|
Machine power |
15HP AC motor+converter |
20HP AC motor+converter |
30HP AC motor+converter |
|
Traverse method |
Polish rod traverse unit,manually twisting pitch control |
|
Center high |
640mm |
750mm |
800mm |
|
Machine weight |
2000KGS |
2500KGS |
3000KGS |
Dongguan Qing Feng Electrical Machine Factory was established in 2001, and is a high-tech enterprise which specializes in developing and manufacturing wire and cable machinery such as the whole line of extruding machines, twisting machines, stranding machines, winding machines, tinning machines and taping machines.
As one of the top leading wire cable equipment manufacturers in China, we have two manufacturing locations, one in Dongguan, China and one in Kunshan, China. With modern factory buildings and the headquarter called SINO STAR CORPORATION HK Co., Limited as our export company is located in HK, we have a professional R&D team and an engineering department with experienced engineers. With the advanced large CNC machining centers, numerical control milling machines and surrounding manufacturing and processing centre, our company has implemented the processing capacity in a great measure. In order to improve our product performance, we adopt the world famous brand components.
For the high quality and Long-lasting Operation advantages of our products, we have won a good reputation which not only is acknowledged by many old customers, but also bring more and more new customers. With rich technology strength and high quality service, our products have been selling well to clients in Korea, Taiwan, Japan, America, Vietnam, India and East and South Asia.
Our company scrupulously follows the pledge of "constantly solving the problem and improving the performance, providing excellent service for each customer, and providing high-tech support for each equipment".
All our staff hope to make great efforts for your satisfaction!
