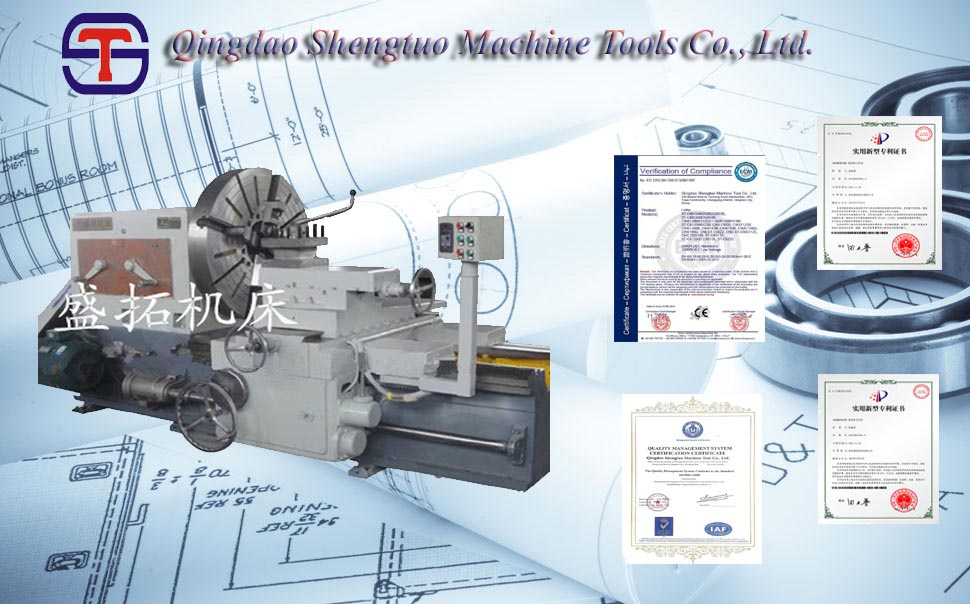

Horizontal Processing 1.4m Machine Tool
Price: |
US $ 22500-23000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
This kind of machine is for cutting and processing various metal workpieces.
It is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on.
And it is mostly used to process large-diameter tire moulds ,large-diameter flanges, various valves and pipelines, pressure vessels, screw propeller,steamer machine accessories and other workpieces.
Specifications:
Item | ST-CW61140 | Unit |
Max.swing diameter of workpiece | 1500 | mm |
The cross-feed travel of slide carriage | 700 | mm |
The longitude-feed travel of slide carriage | 700 | mm |
Maximum swing of work piece over bed | 1400 | mm |
Maximum swing over slide carriage | 750 | mm |
Max.length of workpiece | 700 | mm |
Max.weight of workpiece | 2500 | kg |
Chuck diameter | 1200 | mm |
The quantity of the chunk jaws | 4 | set |
Number of spindle speeds | 6 | level |
The spindle diameter | 220 | mm |
Spindle bore | 50 | mm |
Cutter bar section size | 50×50 | mm |
Spindle speed range | 13~103 | r/min |
Guideway width | 850 | mm |
Power of main motor | 11 | KW |
Power of feed motor:1.1kw | 1.1 | KW |
Adjusting mode of feed motor | stepless |
|
Machine power supply | 380v,50HZ,3P |
Overall dimensions | 2700×1800×1800 | mm |
Lathe weight | abouit 8 | t |
Standard configuration: 1 set of headstock,1 bed and 1 set of carriage, 1 piece of chuckΦ1200mm with 4 jaws(350mm-long per jaw),1 tailstock,1pieces of chuck wrenche. |
Optional Configuration:1 piece of chuck Φ1000mmwiht 3 jaws or 4 jaws,1 main motor(11kw level6), 1 extended bed,1 CNC system,Digital display system. |
Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). |
Prod Model: |
ST-CW61140 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stype: |
Horizontal Lathe |
Color: |
Yellow and Bule |
Processing Diameter: |
2000mm |
Swing Diamter: |
1400 mm |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Setting Mode: |
Floor-type |
Precision: |
High Precision |
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
