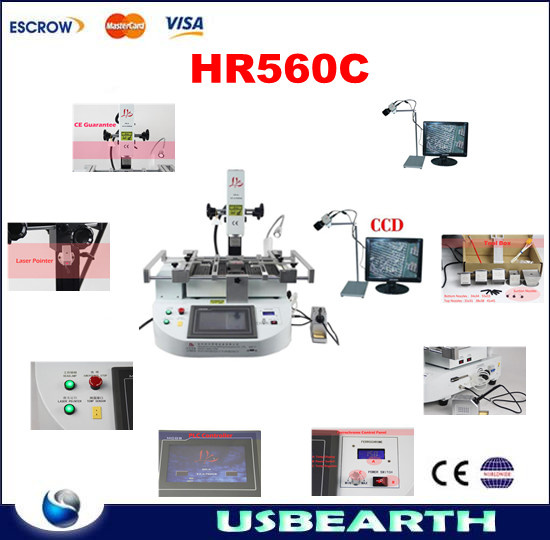

HR 560C: High Auto!!Hot air bga rework station HR 560C auto bga chips reballing machine with CCD camera Monitor,ps2 gameconsoles repair
LY HR560C BGA Rework Station CE CertificationIt can easily rework the variety of CPU's seat Introduction
HR560C Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.HR560C is Preheat independent infrared ceramic three-zone temperature control rework station, easy to lead-free rework;HR560C is 3 in 1 model, hot air heating and soldering station; the soldering station can working independent; the CCD can monitoring the process of ball melt; HR560C is Embedded industrial PC, high definition touch screen, human-machine interface operation;
Technical Parameters
| Basic Parameters |
| Heating | HR |
| Dimension | L700mmx W650mmx H650mm |
| Weight | 45kg |
| Total weight | About 60 kg, vary with the differen need of the users |
| Electrical Parameters |
| Power | 220V AC |
| Upper Heating | HR |
| Size of upper (IR) | --------------- |
| Consumption of upper (IR) | --------------- |
| Nozzle of upper(HR) | 3 pcs: 31x31, 38x38, 41x41, |
| Consumption of upper (HR) | 800W |
| Bottom Heating | HR |
| Nozzle of bottom(HR) | 2 pcs: 34x34, 55x55 mm |
| Consumption of bottom (HR) | 800W |
| Bottom Preheat | IR |
| Consumption of preheat (IR) | 2700W |
| General power | 4.8KW |
| Temperature Control |
| Control mode of Upper | Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm |
| Control mode of Bottom | Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm |
| Rework Function |
| SMD | Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding |
| Size of applicable chips | ≤80mm x80 mm |
| Size of applicable PCB | ≤415mm x325mm |
Packing list:
1× bga rework station5× nozzles: 3 pcs top(31,38,41mm) and 2 pcs bottom(34,55mm);6× pcb jig (with screw) 3x suction nozzles1x Mouse1× brush 1× k-type thermocouple 1x independent CCD lens (8' monitor is optional )1× CD of manual and software (if not get, may be lost in customs, please contact us)
Item Units and Pictures
Feature
1.CE Certification2.HR560C Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.3.HR560C innovative designs an effective solution to general of infrared rework station slow repair. Very good with lead-free soldering rework.
4.very easy for operation and use, not need the computer;5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.How to use
Please refer to the CD of USER MANUAL and to see how to use Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature | Warranty | - 1 year full warranty directly from factory .
|
|
