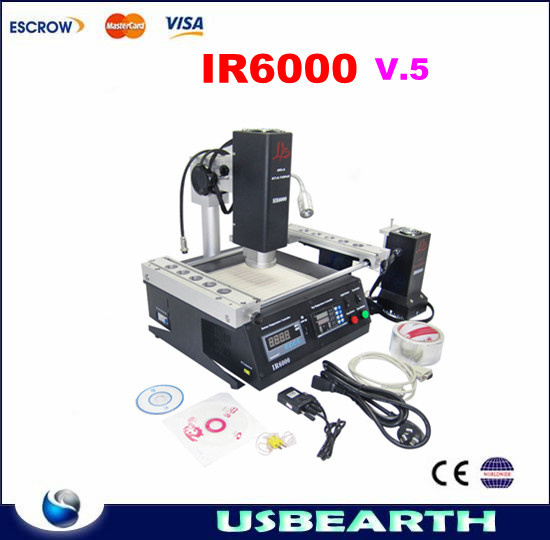

IR6000 V. 5: Specially Designed! Two Top Heating IR and Hr BGA Rework/Reball Machine Ly IR6000 V. 5 with Independent Preheating and K-Type Sensor.

IR6000 V.5:Specially Designed! Two top heating IR and HR bga rework/reball machine LY IR6000 V.5 with independent preheating and K-type sensor.


LY IR 6000 V.5
BGA Rework Station

CE Certification
can be connected to a computer
8 constant temperature segments
It can easily rework the variety of CPU's seat



Introduction
IR6000 V.5 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
IR6000 V.5 have two top heating--IR and HR ,
If you like the IR , you can use the IR heating, IR is slow, but the motherboard Non-defrmation;
If you like the HR, you can use the HR heating, HR is fast for repair;





Technical Parameters

Basic Parameters
Heating	IR  and  HR
Dimension	L475mmx W480mmx H420mm
Weight	18kg
Total weight	About 20 kg, vary with the differen need of the users
Electrical Parameters
Power	220V AC
Upper Heating	IR  and  HR
Size of upper (IR)	80x80mm
Consumption of upper (IR)	450W
Nozzle of upper(HR)	3 pcs: 35x35, 30x30, 25x25mm
Consumption of upper (HR)	800W
Bottom Heating	IR
Size of Bottom heating	1800mm x1800mm
Consumption of Bottom heating	800W
General power	1600W
Temperature Control
Control mode of Upper	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm
Control mode of Bottom	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, NO Alarm
Rework Function
SMD	Suit for welding, remove or repair packaged devices such as BGA,PBGA,CSP,multi-layer substrates, EMI metallic shield product and solder/lead free Rework welding
Size of applicable chips	≤70mm x70 mm
Size of applicable PCB	≤400mm x305mm


Packing list:
1× bga rework station
3× nozzles: 35*35, 30x30, 20x20mm
1× power cable
1× com port cable (R232)
1× usb port cable (with CD)
2× wrench
1× k-type thermocouple
1× AL tape
1× CD of manual and software (if not get, may be lost in customs, please contact us)



Item Units and Pictures




Feature
1.CE Certification
2.IR6000 V.5 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
3.IR6000 V.5 innovative designs an effective solution to general of infrared rework station slow repair. Very good with lead-free soldering rework.

4.It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.
5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.

7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.

How to use
Please refer to the CD of USER MANUAL and to see how to use
Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature

Warranty 1 year full warranty directly from factory  .





Shipping

By DHL & UPS & FEDEX with tracking number, need 4~7 days; By SEA , need 40~50 days; We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.
