Industrial Biomass Steam Output Boilers in Textile Industry Printing
| Price: |
US $ 8000-100000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |

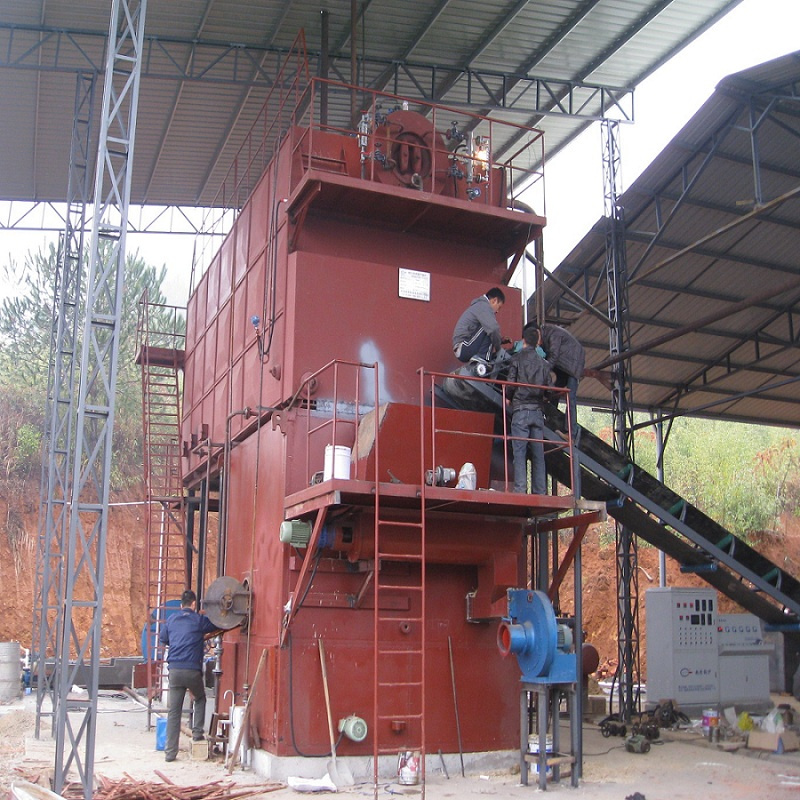

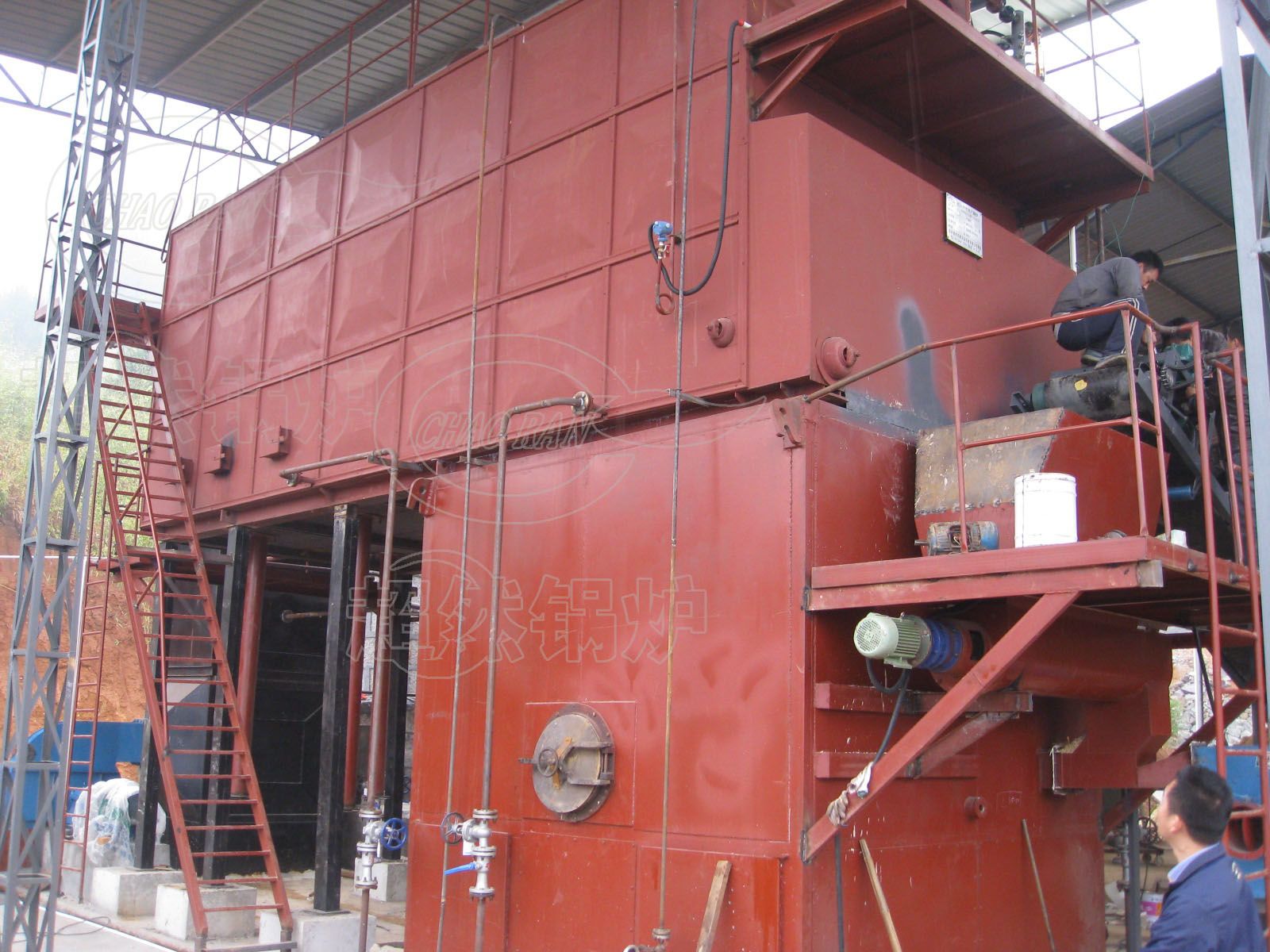

This series tree bark fired industrial boiler has big heating surface and steam generated
full & stable, the combustion chamber adopted the patented technology "Rotary grate" which make the fuel suspension for ensure burned completel to improve the thermal efficiency (82% at least), The fuel can feed by automatic transport machine or by hand,also has below features:* Energy saving
* Full automatic
* low maintain charges
* low labor cost (for example, a 6tons boiler just need a worker)
* Suit for different biomass fuel: wood, wood chip, coconut shell, sawdus, rice husk, palm kernel shell etc, the moisture can accept 20%~40%.
* The fuel size will not be restrained it used for food industry, chemical industry, wood processing, garment factories, rubber factories etc.
Please note that the boiler capacity and pressure can made accordance with clients' requirement. Company Informations:
Supply high quality high efficiency Boiler.
1. Class B boiler manufacture, capacity around 200 sets per year.
2. Each boiler system pars is from first class brand all over the world or China.
3. Strict quality control system, from the drawing design, materials, welding, water
testing, pressure testing to finish shipment.
4. Service: Suport technical supervision.
| Standard Configuration |
| No. | Discription | Specification | Unit | QTY |
| 1 | Boiler body ( without masonry) | SZS10-1.25-M | set | 1 |
| 2 | Rotary grate | cumbustion chamber | set | 1 |
| 3 | Forced draft fan | T9-26NO:9D(with 22kw-4p motor) | set | 1 |
| 4 | Induced draft fan | GY10-15(with 55kw-4p motor) | set | 1 |
| 5 | Feed water pump | JGGC12-165/10(with11kw-2p motor) | set | 2 |
| 6 | Electric control cabinet | with feeder draft fan, forced draft fan, induced draft fan, feeder draft fan inverter | set | 1 |
| 7 | feeder draft fan | 9-19NO:4.5A with 5.5KW motor | set | 1 |
| 8 | Spray bin |
| set | 1 |
| 9 | Screw feeder | with speed regulator and motor | set | 1 |
| 10 | Refractory matter | for boiler body and bottom | set | 1 |
| 11 | Steam distributing cylinder | Φ426 One enter four exits | set | 1 |
| 12 | Rotary grate speed regulator | with 3kw motor | set | 1 |
| 13 | Multi-tube dust remover | 10T/H ceramic tube | set | 1 |
| 14 | Economizer | Boiler exhaust gas economizer | set | 1 |
| 15 | Water treat |
| set | 1 |
| 16 | Chimney | Φ800×4 L=15 | set | 1 |
| 17 | Water film dust remover | 10T/h, include 1 pcs pump | set | 1 |
| Choice equipment |
|
|
|
| 16 | blevile of push |
| set | 1 |
| 17 | pump station |
| set | 1 |
| 18 | pushing bin for fuel |
| set | 1 |
| 19 | Belt conveyor for raw materials |
| set | 1 |
| include following valve instrumen: |
|
|
|
| 1 | Slow open blowdown valve | DN40 | pcs | 6 |
| 2 | Fast open Blowdown valve | DN40 | pcs | 6 |
| 3 | Plunger valve | DN15 | pcs | 1 |
| 4 | Plunger valve | DN25 | pcs | 5 |
| 5 | Plunger valve | DN50 | pcs | 2 |
| 6 | Plunger valve | DN125 | pcs | 1 |
| 7 | Checking valve | DN50 | pcs | 1 |
| 9 | Safety valve | DN80(1.0-1.3MPa) | pcs | 1 |
| Safety valve | DN50(1.0-1.3MPa) | pcs | 1 |
| 10 | Panel water level indicator | L=440 | pcs | 2 |
| 11 | Three-way valve |
| pcs | 2 |
| 13 | Pressure gauge | 0-2.5 MPa | pcs | 1 |
| 14 | Electric contrct pressure gague | 0-2.5 MPa | pcs | 1 |
| Prod Model: |
SZS10-1.25-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steam Output: |
10tons/Hr |
| Operation Pressure: |
1.25MPa |
| Steam Temperature: |
194 Celsius Degree |
| Grate Tyep: |
Rotary Grate |
| Heat Efficiency: |
82% |
| Consumption: |
195kg Per 1ton Steam (Hv=3800kcal/Kg) |
| Available Fuel: |
Biomass, Palm Kernel Shell , Coconut Shell etc |
| Main Power Source: |
3p/220~480V/50~60Hz |
| Delivery Time: |
25~60 Days |
| After-Sale Service Provided: |
Engineers Available to Overseas |
| Function: |
Steam Boilers |
| Fuel: |
Biological |
| Installation: |
Assembled Boiler |
| Structure: |
Water Tube |
| Media: |
Steam and Water |
| Water Circulation: |
Natural Circulation |
| Drum Placement: |
Horizontal Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Burning Style: |
Chamber Combustion Boiler |
| Usage: |
Industrial |
Established in 2000, Quanzhou Chaoran Heat Energy Equipment
Development Co., Ltd. Specialized manufacturer in Boiler that is
Concerned with the design, developmen and production.
We are located in Quanzhou city where nearly to Xiamen port, with
Convenient transportation access. Covering an area of 8200square meters, we have over 100 workers, our well equipped facilities enable us to annual producing 150 sets boiler and annual sales around RMB30millions.
All of our products comply with international quality standards and are marketed in Singapore, Indian, Indonesia, Bengal, Thailand and Vietnam etc.
Our main products are steam boiler, hot water boiler and thermal oil heater (organic heating carrier boiler) etc, their fuels can be coal, gas, oil and biomass etc.
Specially biomass fired steam boiler favored by customers at home and abroad which adopted our own patented technic rotary furnace structure, and match with secondary air etc multi specific design, for ensuring flues combustion complete, extremely increase heating effeciency.
Adhering to the tenet of " quality first, safe first, users uppermost", our target is providing products without any bug, warmly welcome clients to negotiate with us and develop market together.
