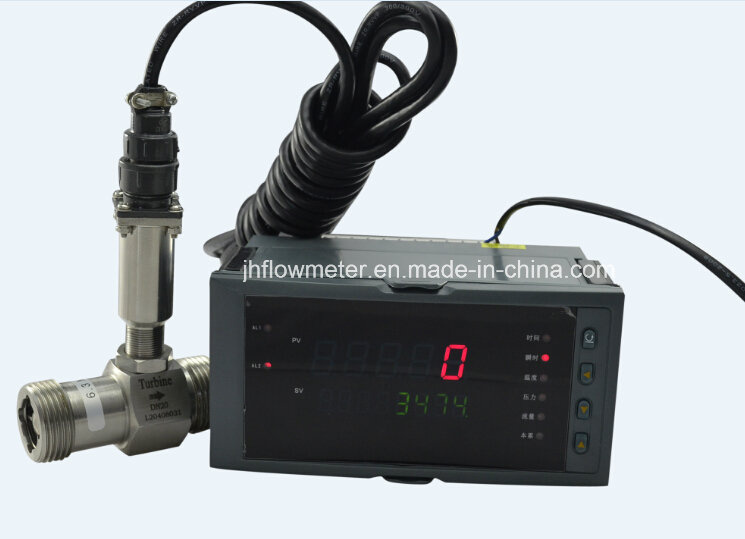

Intelligent Water Flow Meter with Totalizer (JH-FM-2610)

                                                                        Intelligent Flow Totalizer

The intelligent flow totalizer is a kind of instrument that deal with the orifice, vortex, turbine etc. flow sensor signal through process signal, operation, display, communication ect. process convert as flow signal. Using high-performance microprocessors, combine the advanced algorithm and reliable hardware circuit of the organic together, thus make the totalizer can work in bad industrial site. The totalizer not only has the evolution, accumulate, alarm and communication functions but also have the special function such as can realize button release alarm, sensor break-line alarm output function. Fully meet the needs of different users in different occasions. Adopts 5 digits highlight LED display instantaneous flow and nine highlight LED display total flow way, solved some problems in some applications that the short of display digits.

Application:

-All kinds of liquids, steam, general gas and etc. Have been widely used for flow totalizing, measurement and control in Biology, petroleum, chemical, metallurgy, electric power, medicine, food, energy management, aerospace, machinery manufacture and other industries.


Features:

- Modularized structure and hardware compatible with other AI series instruments and modules, which make it easy to maintain and quick delivered.
- Modularized and configurable inputs. The flow input can be 1-5V, 0-5V, 4-20mA or frequency signal, and special user defined input specification is also available. The temperature input can be configured to Pt100 RTD, K, E, J type thermocouple, voltage, or current signal. The pressure input can be various voltage or current signal.
- Abundant functions such as retransmission, high/low alarm of momentary flow, temperature and pressure, abnormal signal detecting, and communication with computer are available.
- Square root/no square root selectable ,8-digits accumulation value and 4-digits momentary process value, small signal cut-out can be set at any range.
- It has perfect temperature and pressure compensation used for general gas, saturated steam, overheat steam and liquid. The compensation calculation with the method of table look-up has a high accuracy in the steam measurement application. Special function can be carried out by enhancing the compensation formula upon customers' demand.
- Advanced computation algorithm assure enough accuracy in the application of flow measurement even if the frequency input signal is very small.
- As used as batch controller, it has 4-bit accumulator for control and 12-bit accumulator for total sum individually.
- With high precision current module installed, the totalizer can provide retransmission with 14 bit output resolution and 0.2%FS output precision.



Technical parameters:

Name		Flow totalizers
Input signal	Analog input:	Voltage 0~5V, 1~5V or mV           Input impedance>=250kΩ
		Current: 0~10mA, 4~20mA or 0~20mA   Input impedance<=250Ω
		Thermocouple K,E
		Resistance Pt100
	Pulse input:	Waveform, rectangle, sine wave or triangle wave
		Range 0~5KHz  0~10KHz
		Scope >4V (or customize)
		Scope light electrical isolation input, >4V (or customize)
	Switch input:	ON, STOP, RESET
Output signal	Analog output:	0~10mA (load<=750Ω) or 4~20mA (load <=500Ω
		0~5V (load>=250kΩ) or 1~5V (load >=250kΩ)
	Switch output:	Relay output- ON/OFF with return difference AC220V/3A,DC24V/5A
	Feed	DC24V/30mA
	Communication	2, 3, 4wire; baud rate 300~9600bps
Accuracy	Measurement:	0.2%FS±1 or 0.5%FS±1
	Frequency:	±1 pulse  normally better than 0.2%
Display	0~99999 instant flow measurement value
	0~99999999999 totalizing value
	-1999~9999 Temperature compensation measurement value
	-1999~9999 Pressure compensation measurement value
	-1999~9999 Flow (differential pressure, frequency) measurement value
	Current time
	Light emitting tube working state, high light LED digital display
Control mode	ON/OFF with return difference
Print control	Directly connect all kinds of micro printer, communication RS-232C
Print accuracy	The same as accuracy of meter
Alarm mode	Relay upper limit, lower limit alarm output, LED alarm indicate optional
Quantitative control mode	Relay flow quantitative control, LED output indicate optional; Relay flow quantitative process control, LED output indicate optional;
Communications	Bidirectional serial communication, like RS-232C, RS-422,RS-485 and etc.
	Baud rate 300~9600bps inner parameters of totalizer can be set freely,
	Adopts master-slave communication to achieve communicate between instruments and PC
Setting mode	Touch panel button digital set, permanently save setting value when power off, encryption setting value
Protection mode	Program will auto reset when appear undervoltage or unusual working (watch dog)
	Power off flow totalizing value will be kept more than 2 years, Setting parameters will be kept for good
Operational environment	Environment temperature: 0~50ºC Relative humidity: <=85RH Power voltage: AC 220V%, 50Hz±2Hz               AC 90V~260V ---Switching power supply               DC 24V±2V   ---Switching power supply Avoid corrosive gas
Power dissipation	<=5W (AC220V Supply) <=4W (AC90~260V ----Switching power Supply) <=4W (DC24V Supply)
Construct	Standard Snap-On type
Weight	500g (AC 220V Supply) 300g (Switching power supply)
