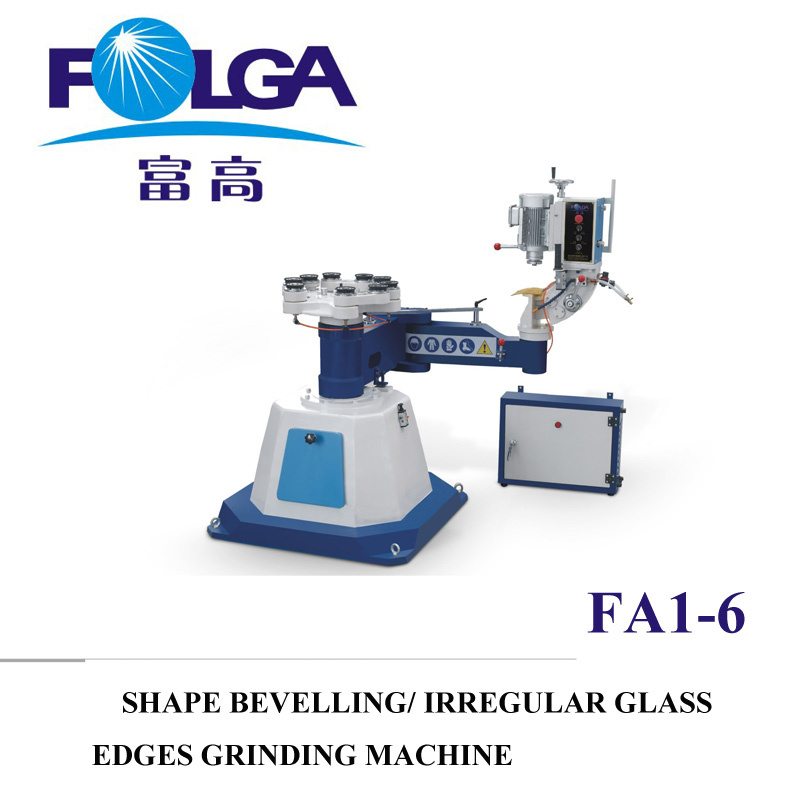

Irregular Glass Edges Grinding Machine (FA1-6)
| Price: |
US $ 6000-6600/Set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
FA1-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Movable Diameter: |
100-2000mm |
| Glass Thickness: |
3-30mm |
| Max. Width Hypotenuses: |
35mm |
| Oblique Angles: |
0-15° |
| Speed Of The Satellite Disc: |
0.5-2.5r/Mm |
| Max. Occupying Area: |
2500×2500mm |
| Power: |
3kw |
| Weight: |
1000kg |
| Overall Size: |
1200×1200mm |
| Type: |
Glass Beveling Machine |
| Certification: |
ISO |
| Control System: |
Industrial Computer |
Product Description

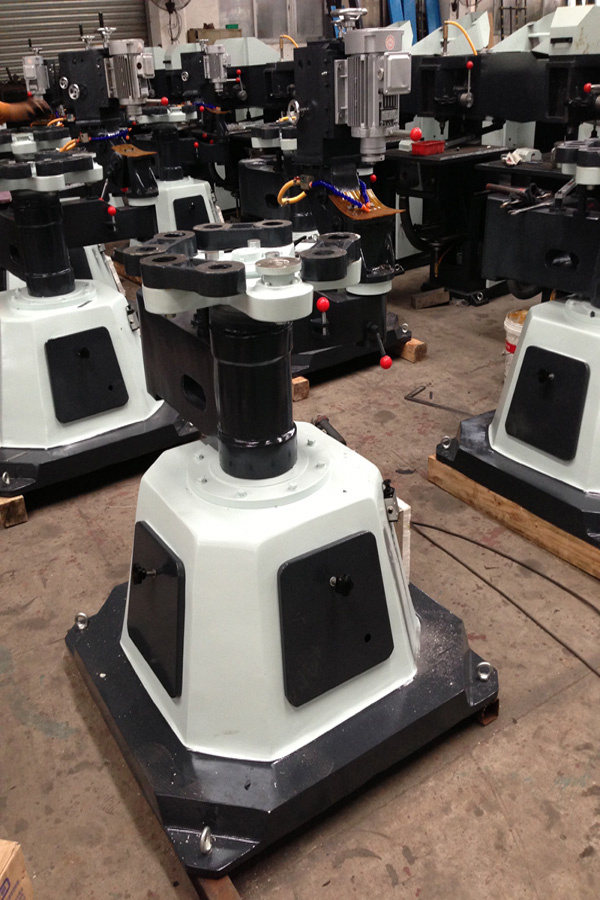

FA1-6 Irregular Glass Edges Grinding Machine is suitable for grinding and polishing the outer circle of the flat glass which is round, oval or even irregular for round edge, OG edge, flat edge and bevel edge. The base is made of cast and other parts are made of high strength cast iron, so that the machine has high strength and precision, and the capability is steady. When working, the processed glass is adsorbed onto the vacuum sucker which is driven by an auxiliary motor enables the grinder to work movably on irregular edges of flat glass in a diameter between 100 and 2000mm. And the speed can be adjusted discretionarily. This machine can also perform semi-grinding on simple-shape irregular glass. When grinding peripheries, three grinding wheels should be installed to do rough-grinding, fine-grinding and polishing. When grinding bevel edge, adjust the wheel to fit the grinding angle after installing the bowl-shape grinding wheel. Major Technology Parameter: Movable diameter: 100-2000mmGlass thickness: 3-30mmMax. Width hypotenuses: 35mmOblique angles: 0-15°Speed of the satellite disc: 0.5-2.5r/mmMax. Occupying area: 2500×2500mmPower: 3kwWeight: 1000kgOverall size 1200×1200mm
|
Name |
Main specific |
|
Frame material |

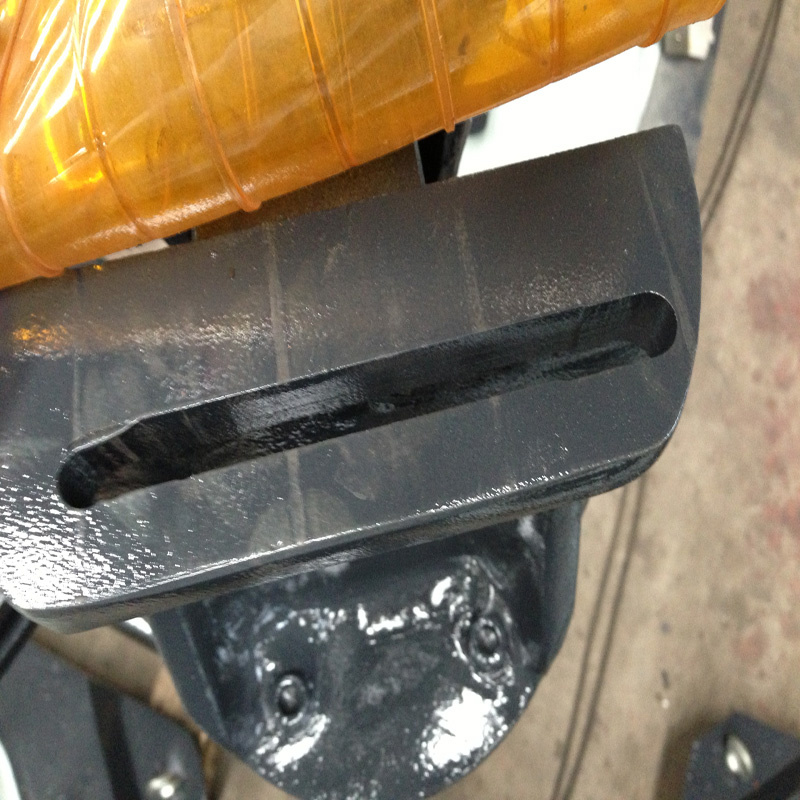

The basic, Column, five star plate and the big/small rocker, girding head pedestal, adopt high quality casting material, though anneal process, with stable structure, can suffer large processing load. |
|
Grinding motor |
Adopt Lian Zhou JIAN QIANG brand. |
|
Stepless conveyor motor |
Adopt NANHUA brand |
|
transfer worm gear case |
Adopt ZHUJIANG brand |
|
Bearing |
Adopt HRE brand |
|
rotary switch emergency switch |
adopt JIANGYIN brand |
|
Transformer, low voltage breaker, contactor |
adopt JIUCHUAN CHINT brand |
FOLGA Glass Machinery Co., Ltd. Is one the subsidiary company of Hong Kong FULIGAO Enterprise with area of 15, 000 square meters and 150 staffs in Shunde district. Its convenient transportation and completed facilities just take you about one hour here from FOLGA to Guangzhou International Airport or Hong Kong pier bydriving. FOLGA is a professional glass machinery manufacturer for deep-processing glass which with rich manufacturing experience, advanced technology and excellent equipment.
For years, we keep on improving, designing and manufacturing the first class and unique equipment to meet the customers' Need. What we have are: Glass straight line double round edging machine, Glass straight line double edging machine, Glass straight line beveling machine, Glass bearing straight line edging machine, Glass straight line edging machine, Glass straight line round edging machine, Irregular glass edges grinding machine, Glass drilling machine, Glass washing machine and Glass sandblasting machine, which are widely used for glass processing in industry of construction, furniture, domestic appliance, art and solar. Our market include but not limit to Russia, Columbia, Brazil, Turkey, Australia, Poland, Indonesia, Vietnam, Saudi, Israel, India and Iran etc., over 20 countries and area.
"Customer is god, Quality is life, Management is base, Technology is soul", as the concept of FOLGA. FOLGA Glass Machinery Co., Ltd insists on the faith: Setting up customers' Ease with confidence, sincerity, perseverance, patience, love. FOLGA is eager to providing you high cost-effective equipment.
FOLGA is your preferred choice for glass deep-processing; FOLGA is creating a "New Double edging machine, Beveling machine kingdom"; FOLGA is anque and innovative pioneer; FOLGA is a "Cost-effective" machinery delegate. Do choose"FOLGA Glass Machinery Co., Ltd. "
