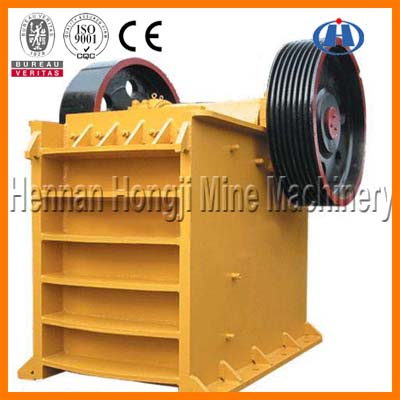

Jaw Crushing Machine Pef500x750 (PEF)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Jaw Crushing Machine Pef500x750 (PEF) advantages
1. Description of Jaw Crushing Machine Pef:
PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc. Compression strength does not exceed 320PA. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.
2. Features of Jaw Crushing Machine Pef:
1>Heat treated shafts forged of special alloy to handle overloads and hard materials.
2>Heavy duty self aligned spherical roller bearings absorbs and withstand extreme shock, radial and thrust load and offer substantially more bearing life.
3>Much heavier, stronger, massive one piece frame, stress- relived for optimum reliability.
4>Toggle bearing wedges for easy in, easy out bearing replacement.
5>Hardened barrel wear lines (Side plate) protect the pitman (Lever).
6>Replaceable Fix & swing jaw plate made out high chrome & manganese percentage.
7>One piece cast pitman (Lever) stands up to the most demanding crushing applications.
8>Larger stroke, deeper crushing motion, steeper nip angle means higher capacity and greater throughput
3. Working principle:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Firstly the machine's leather belt and wheel are driven by the electric motor, then the movable jaw begins to move up and down by the eccentric shaft, when the movable jaw move from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, the materials are crushed into pieces to reach the crushing target. When the movable jaw moves from bottom to top, the angle between fixed jaw and movable jaw becomes bigger, the movable jaw plate deviates from the fixed jaw plate under the function of drag rod and spring, at this moment, the crushed materials are discharged from the bottom outlet of the crushing cavity.
| Prod Model: |
PEF |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
I. About us:
Located in Zhengzhou, China, Henan Hongji Mine Machinery Co., Ltd. is a joint-stock enterprise, specializing in R&D, manufacture, and sales of large and medium-sized Mining Machinery (Crushing machinery, seperation/ore benefication machinery, screen and so on), NPK Fertilizer Equipment, and Building Material plants like Quick Lime Plant and Cement Plant. Our customers' satisfaction is our ultimate goal, and in order to achieve this, we strive to consistently provide high-quality products at the lowest prices.
II. Our products:
As the largest mine machinery manufacturing enterprise in Zhengzhou, we provide environment-friendly Mining machines, including flotation machines, classifying equipment, magnetic plants, ball mills, spiral classifiers, vibrating screens, crusher, sand making machines, and dryers, NPK Fertilizer Machines including Mixer, Rotary Dryer, Pelletizer, Coating Machine, Drum Screen, Bagging machineetc. These products have received ISO9001: 2000 certification and SGS certification, and are popular in Vietnam, Myanmar, Bengal, Laos, Philippines, Peru, Iran, India, etc.
We also provide preferential wearing parts when you purchase our products.
III. Applications:
Our products are widely used in the production operations of crushing plants, cement plants, lime plants, and concentrating mills. Their specific applications are as follows:
Ball mills grind many types of ore and other materials, and are widely used in mining, the chemical industry, etc.
Spiral classifiers are used in the distribution of ore, the grading of ore and fine silt in gravity mills, and for grading granularity of ore pulp in metal ore-dressing processes. They are also useful for de-sliming and dehydrating in the ore-washing process.
Vibrating screens can be used for grading materials in coal dressing, metallurgy, mining, power stations, construction and chemical industries, etc.
Rotary kilns are suitable for mechanical, physical, and chemical treatments of solid materials. They are applicable in the building industry, metallurgy industry, chemical industry, etc.
IV. Quality and Cost Control:
To ensure the quality of our products, we have formed cooperation with scientific research institutes in European countries, thus enabling us to introduce internationally advanced processing techniques and production lines to our operation. In addition, our incoming raw materials and our finished products are inspected 4 times before they are accepted or sold. We purchase our raw materials in large quantities, which help to reduce costs. We also save on labor costs by training our staff in-house. These steps and more enable us to provide crushing machines, mining machines, sand making machines, rolling mills, and cement equipment at a lower price than other manufacturers in this field.
V. Customer Services:
1. Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs. We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.
If required, we can train your technical personnel for you.
2. Services during the sale:
We strictly adhere to the principle of "the customer first". Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3. After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If needed, we can help you to install your equipment and train your operators on-site.
Inspection personnel will be sent to examine your equipment regularly.
If there is any problem, we will take measures to solve it immediately, on-site.
Technical exchanging is also provided for you.
For larger items, we can provide additional maintenance.
