Product Specifications
| Prod Model: |
FD6421 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
| Fuel: |
Gas/Petrol |
| Type: |
SUV |
Product Description

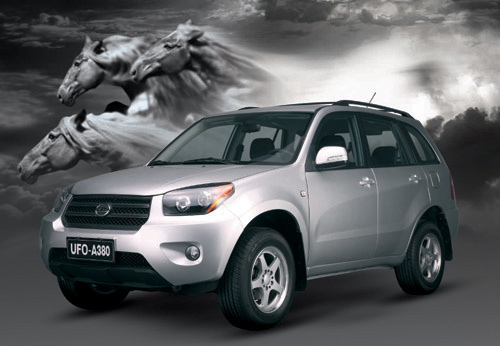

Name: FD6421
Specifications:
1)Size (L x W x H) (mm): 4295 x 1770 x 1680
2)Total mass(Kg): 1760
3)Kerb mass(Kg): 1370
4)Tread(front/rear)(mm): 1525/1520
5)Approach angle/departure angle(o): 31/28
6)Engine model: Mitsubishi 4G63S4M
7)Transmission model: JC23M2
8)Wheelbase(mm): 2515
9)Fuel delivery: Multi-port injection
10)Max. Power (kw/r/min): 95/6000
11)Max. Torque(N. M/r/min): 168/2750
12)Max. Speed(km/h): 175
13)Max. Climbing gradient(%): 40
14)Fuel consumption (L/100km): 7(limitative condition)
15)Fuel tank's capacity(L): 57
16)Research octane number(RON): 93
17)Air-conditioner(kw): 5.3
18)Displacement standard: GB18352.3(Euro4)
19)Rated passenger: 4
20)Transmission system: 5-speed manual
21)Steering system: Hydraulic with power assist
22)Brake system: Four-wheel disc
23)Mini. Ground clearance(mm): 180
24)Mini. Steering radius(m): 5.4
25)Suspension system front/rear: Macpherson struts/multi-connecting rod
26)Tire: 215/65R16
27)Body structure: Unitary construction
28)Displacement(L): 1.997
Zhejiang Jonway Automobile Co., Ltd is the subsidiary of Jonway Group. Jonway Group manufactures automobiles, motorcycles, vehicle and motor parts, light building materials, air-compressors, plastics as well as other vehicle subcomponents. In 2009 Jonway Automobile had sales of more than US$110 million.
Zhejiang Jonway Automobile Co., Ltd began manufacturing in May, 2003. Located at the beautiful East China sea coast-port industry zone of Jiangtiao, Sanmen county. The Taizhou city, Zhejiang province manufacturing plant has an area of 57.3 hectares with more than 800 employees. It has invested more than 600 million RMB in producing the three- and five-door SUVs, with a capacity to produce up to 30, 000 units per year. The manufacturing operations include pressing, welding, painting and assembling lines. It has also gained the TS16949: 2009, GCC, SASO, SONCAP and CCC certification. Jonway offers a network of more than 500 auto dealerships in China alone and has started a distribution network in Italy.
