MS-62F Power Relay, big power relay
Technical data

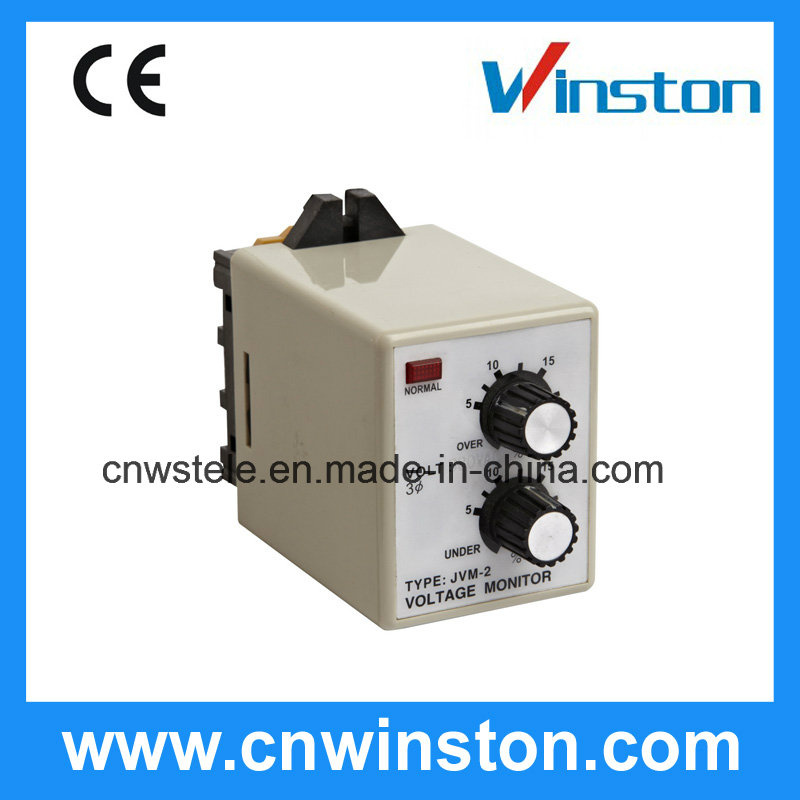

TypeJVM-A
Input circuit = Measuring circuitL1, L2, L3
Duty time100%
Monitoring functionsphase loss, phase sequence,
Over- and undervoltage,
Rated voltage220V. 380V. 440V. 460V
Monitoring voltage ranges± 5% - ± 20% (rated voltage)
Voltage measurement accuracy± 1%
Frequency Rating50/60Hz± 1Hz
Output circuits15-16/18
Output Contact1NO/NC
Action delay time1-10s
Contact Capacity5A 250V(AC)
Operating Temperature-10° C~+55° C
Insulation withstanding grade2, 5 kV, 50 Hz, 1 min
Protection gradeIP40
Dimensions (W x H x D)49mm x61mm x70mm
Mounting8PFA
