Jw3110 Handheld Optical Light Source

Product Specifications

Prod Model:	JW3110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelengths(Nm):	1310 or 1550
Output Power (dBm):	-7~-6
Emitter Type:	Fp-Ld
Dimension(Mm):	115*60*20
Optical Connector Type:	FC/PC
Power Supply:	3 PCS1.5V AA Batteries
Weight(G):	110
Warranty:	18 Months
Certification:	ISO
Condition:	New

Product Description

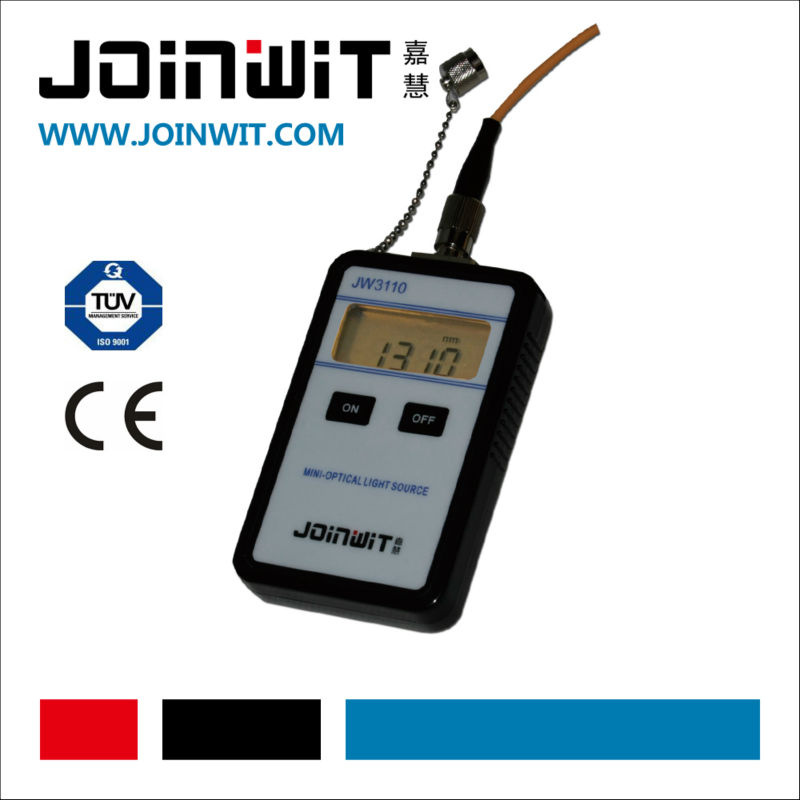

JW3110 Optical Light Source
 JW3110 Mini optical light source is the most rugged small size instrument in the industry. It integrates
super small size and strong function in one unit. With 3 pieces of 1.5V alkaline batteries, it can work
continuously for more than 40 hours. The total weight is only 110g.

 Specifications

Type	JW3110 optical light source
Wavelengths(nm)	1310 or 1550
Emitter Type	FP-LD
Ouput Power(dBm)	-7~-6
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins;  ±0.1dB/ 8hours
Optical Connector	FC/PC
Power Supply	3pcs 1.5V alkaline batteries
Battery operating time(hour)	40
Operating Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
Dimension(mm)	115X60X20
Weight (g)	110
Joinwit Recommendation
JW3110 Handheld Light Source is designed for mini portfolio with JW3205 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable.

Standard Packages

MODEL	INCLUDES
All MODEL	JW3110 Optical Light Source, Alkaline battery, User Manual, Cotton swabs and Soft carrying case.
