Jw3111 Handheld Optical Light Source

Product Specifications

Prod Model:	JW3111
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Modulation(Hz):	Cw,2,270,1k,2k
Output Power(dBm):	≥0(650nm),-6~-7
Optical Connector Type:	FC/PC
Emitter Type:	Fp-Ld,LED
Wavelengths(Nm):	650/850/1300/1310/1490/1550/1625
Dimension(Mm):	190*100*50
Weight(G):	370
Warranty:	18 Months
Certification:	ISO
Condition:	New

Product Description

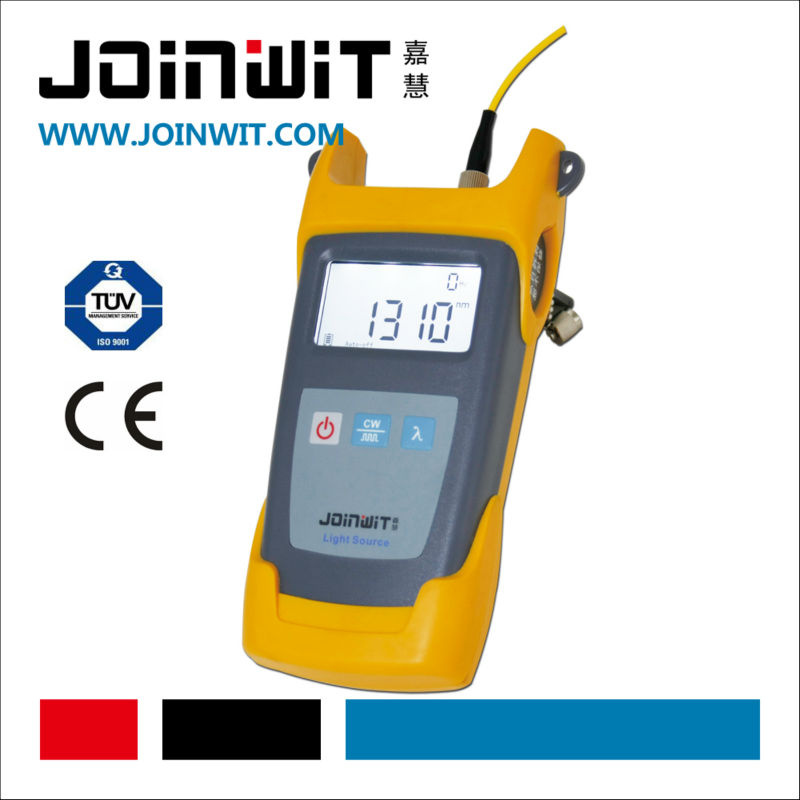

JW3111 Optical Light Source
JW3111 optical light source is handheld optical light source.It can provide 1 to 5 wavelengths output to
satisfy specific requirements.Together with the JW3211 optical power meter, it is a perfect solution for
fiber optic network applications.

 Specifications

Type	JW3111
Wavelengths(nm)	Provides 1~6 Wavelengths according to needs.
Emitter Type	FP-LD,LED
Typical Ouput Power(dBm)	0@650nm / -7 @1310nm,1550nm, -20dBm for LED
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins;  ±0.1dB/ 8hours
Modulation Frequencies	CW.2Hz@650nm / CW,270Hz,1KHz,2KHz@1310nm,1550nm CW,270Hz,1KHz,2KHz
Optical Connector	FC/PC(Other type adapters can be required)
Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time(hour)	45
Operating Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
Dimension(mm)	190X100X50
Weight(g)	370
Joinwit Recommendation
JW3111 Handheld Light Source is designed for optimal use with JW3211 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.

Standard Package

MODEL	INCLUDES
JW3111	JW3111 machine, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
