Product Specifications

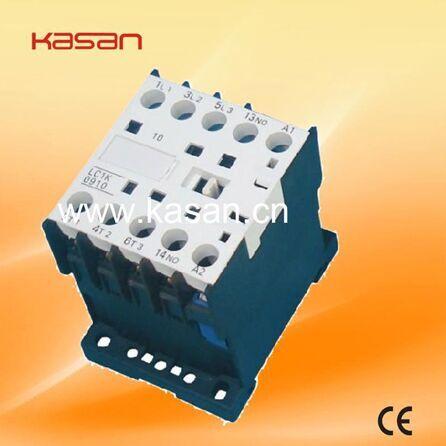

Prod Model: |
LC1-K06 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
.Contactor No: |
3p+No+Nc |
.Contactor Current: |
6A to 12A |
Product Description
LC1-K new series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 185A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards
Type | LC1-K06 | LC1-K09 | LC1-K12 |
Rated current at AC3 (A) | 6 | 9 | 12 |
Rated working current (Ie)A | 5 | 7.5 | 10 |
Conventional thermal current(Ith)A | 16 | 20 | 20 |
AC-3 Use Group Control Power KW | 220V | 1.5 | 2.2 | 3 |
380/415V | 2.2 | 4 | 5 |
440/500V | 3 | 4 | 5 |
660V | 3 | 4 | 5 |
Rated working voltage (Ue)V | 380 660 |
Rated insulation voltage (Ui)V | 690 |
AC-3 (6Ie Ie) | Electrical life (times) | 0.5 10 6 |
Operation frequency h-1 | 1200 |
AC-4 (6Ie Ie) | Electrical life (times) | 10 10 4 |
Operation frequency h-1 | 300 |
Mechanical life | 3 10 6 |
LC2-D205 | Conventional thermal current | 6A |
Electrical life (times) | AC-15(360VA) | 0.5 10 6 |
DC-13(33W) |
