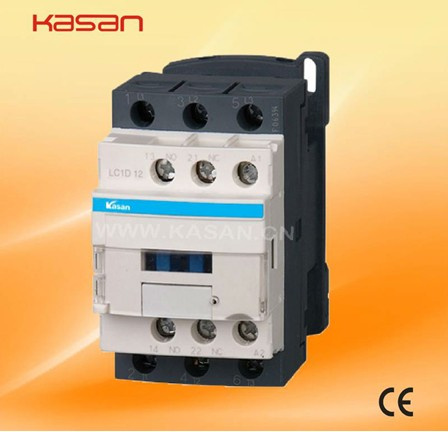

Telemechanic New Model LC1-D12 AC Contactor

Name: Telemechanic New Model LC1-D12 AC Contactor
Brand: china-manufacturer-directory.com
SKU: 694020902
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	US $ 1.5-2/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

NEW MODEL LC1-D AC CONTACTOR

CE APPROVED AC CONTACTORS

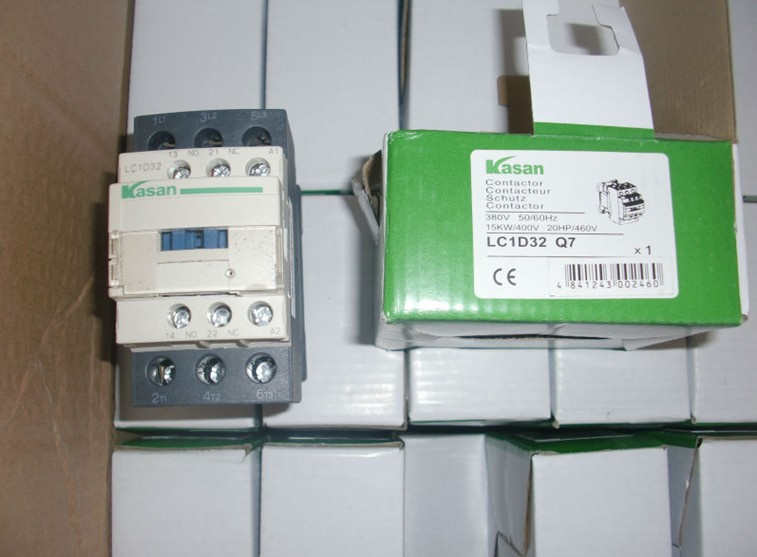

1.Telemechanic Electrical AC Contactor LC1-D32

2.Contact No: 3p+No+Nc
3.Current:09A to 150A
4.Coil Voltage:24V 48V 110V 220V 240V 380V 41V
5.LC1
6.new model

WE CAN OFFER EVEN SMALL QUANTITY AS PER CUSTOMER'S NEED

The magnetic electrical LC1-D AC contactors are suitable for frequency 50/60Hz, rated insulation

voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.pe

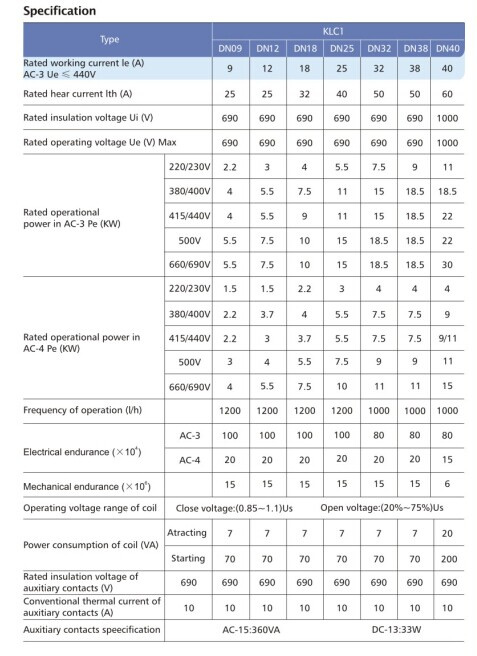

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10 4 )	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10 4 )	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10 4 )		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

Prod Model:	CJX2, LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Type:	AC.DC
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay

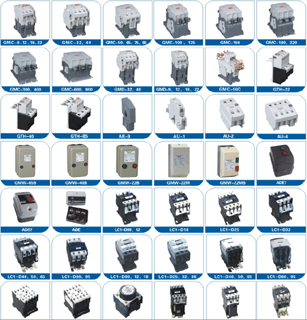

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
