Product Specifications
| Prod Model: |
LC2-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay |
| Theory: |
Contactor |
Product Description
Description:
CJX2-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.

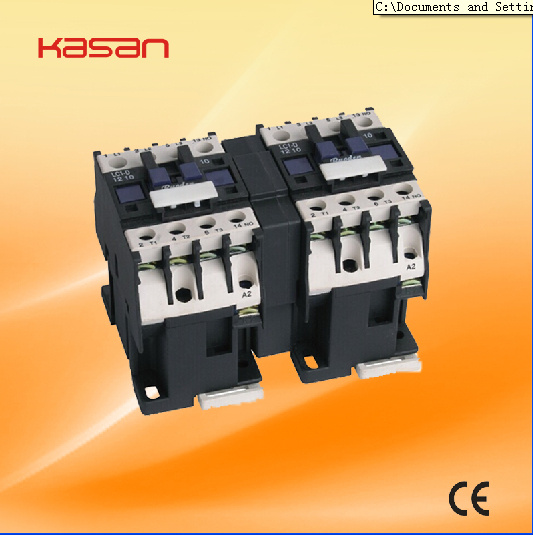

Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The Contactor is produced according to IEC 947-2, VDE
0660 & BS5452.
Specification:
Type |
| LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 |
| 415V | 4 | 5.5 | 9 | 11 | 15 |
| 440V | 4 | 5.5 | 9 | 11 | 15 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| Rated heat current (A) |
| 20 | 20 | 32 | 40 | 50 |
| Electrical life | AC4 x 104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3 x 106 | 2 | 2 | 2 | 2 | 2 |
| Mechanical |
| 20 | 20 | 20 | 20 | 20 |
| Number of the contact |
| 3P+NO |
|
|
|
|
| 3P+NC |
|
|
|
|
Type |
| LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 |
Rated working
current (A) | AC3 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 18.5 | 24 | 28 | 37 | 44 |
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW) | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 22 | 25 | 37 | 45 | 45 |
| 440V | 22 | 30 | 37 | 45 | 45 |
| 500V | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 30 | 33 | 37 | 45 | 45 |
| Rated heat current (A) |
| 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC4 x 104 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3 x 106 | 2 | 2 | 1.6 | 1.6 | 1.6 |
| Mechanical |
| 20 | 20 | 20 | 10 | 10 |
| Number of the contact |
| 3P+NC+NO |
|
|
|
FAQ
Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.
Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer's need once boat leave.
Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q'ty than normal.
Q 5: We want to know month capacity.
A 5: 360000pcs/month
Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa countries and so on.
Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .
Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight
Usual way of payment for by sea goods:
30% advance ,70% balance before shipment
Compensation term:
Q9: If we bought your products, but found quality problem, how to solve?
A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
